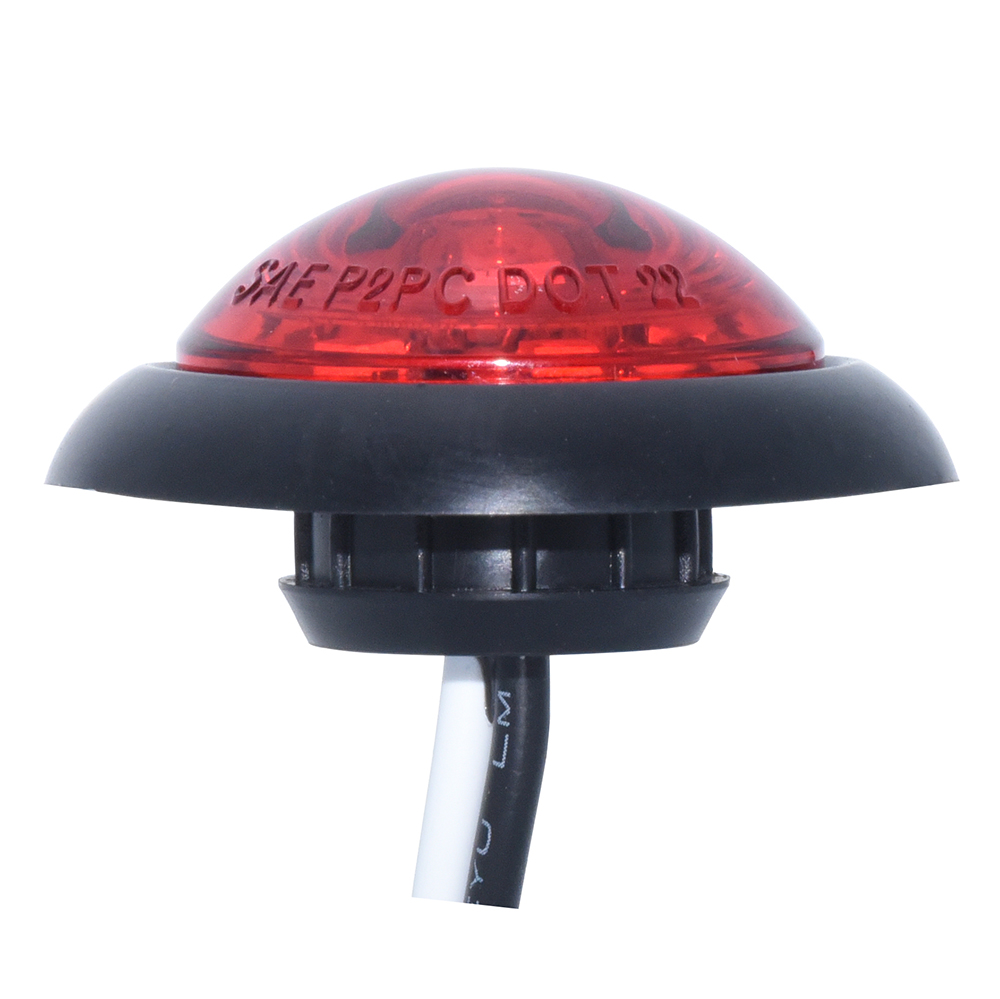

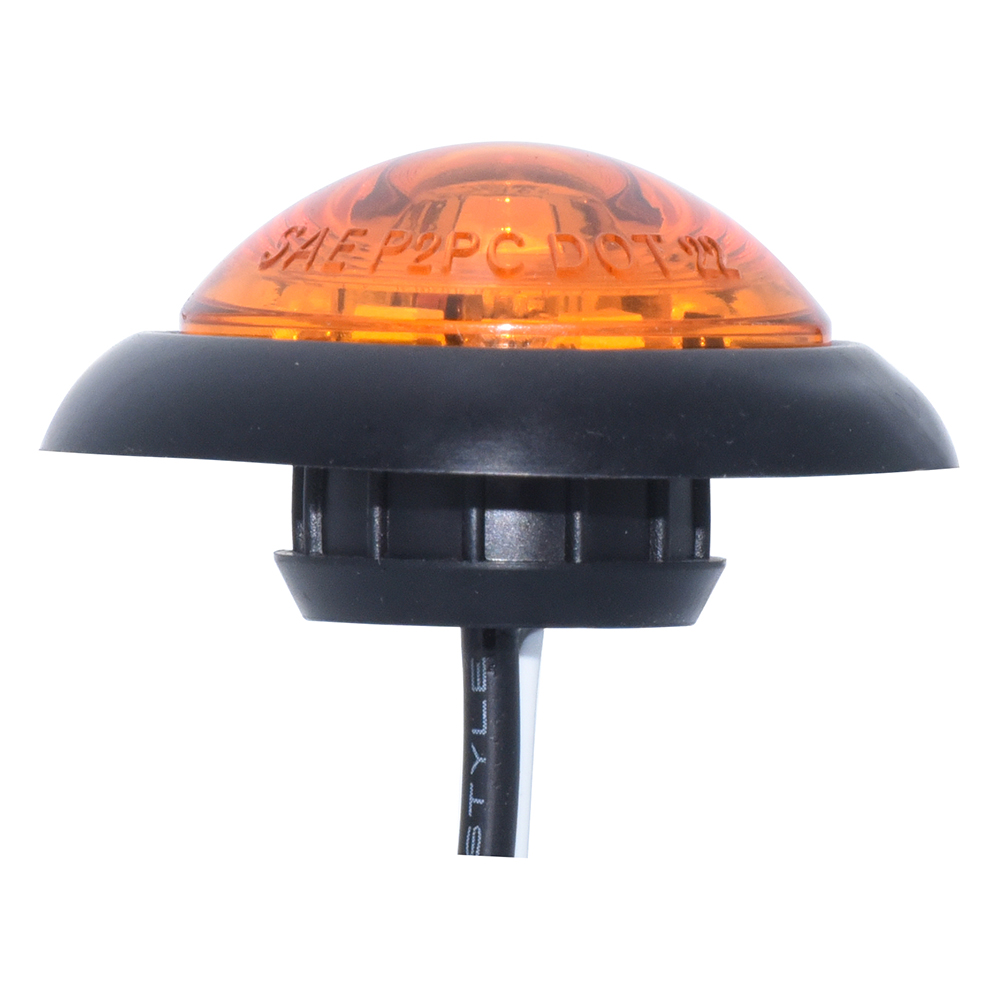

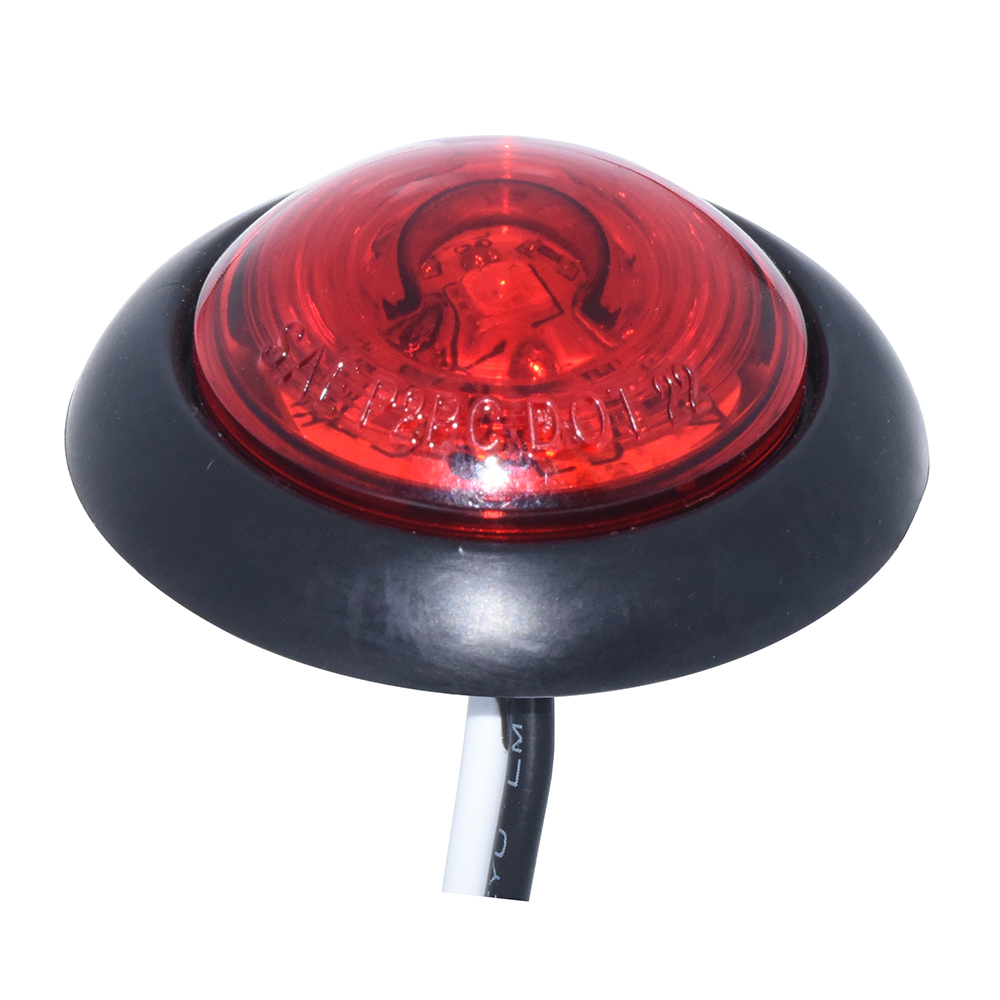

1-1/4” (32mm) Round LED Marker & Clearance Light

Brand Name:	HOJA or Privately Labelled
Input Voltage:	12V, 24V, 10~30V
Functions:	Marker, Clearance
Mounting Type:	Grommet Mount
Standards:	FMVSS 108/SAE
Lens Marking:	P2PC
IP Rating:	IP65
Applications:	Truck, Trailer, RV, Speciality Vehicles

E-mail : info@hoja.com.cn

• Enlarged 1-1/4” lighting surface to fit standard 3/4” cut-out hole

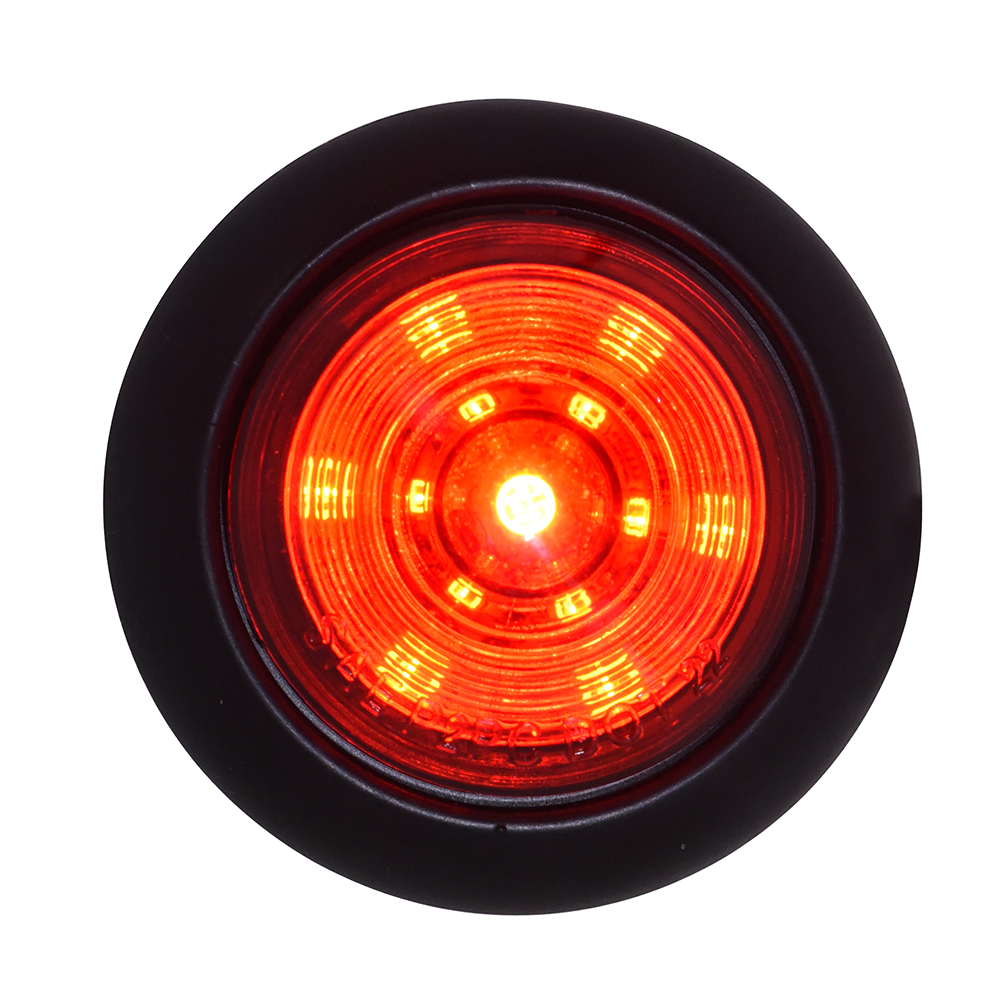

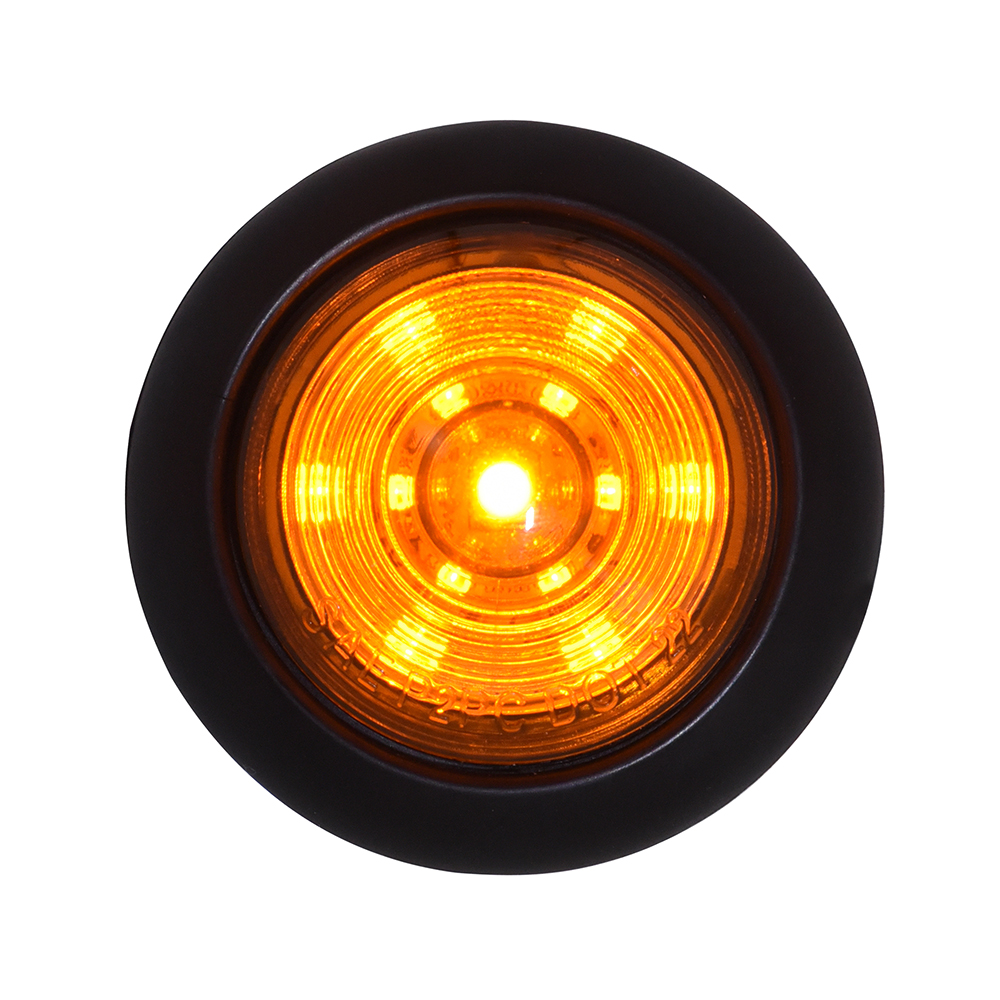

• Features engineered lens optics with 7 SMD LEDs (center 1 + side 6), functions
as clearance, side marker or identification light, ideal for trailers, trucks and RVs
• Available in decorative 304 stainless steel Finish Ring, highly polished

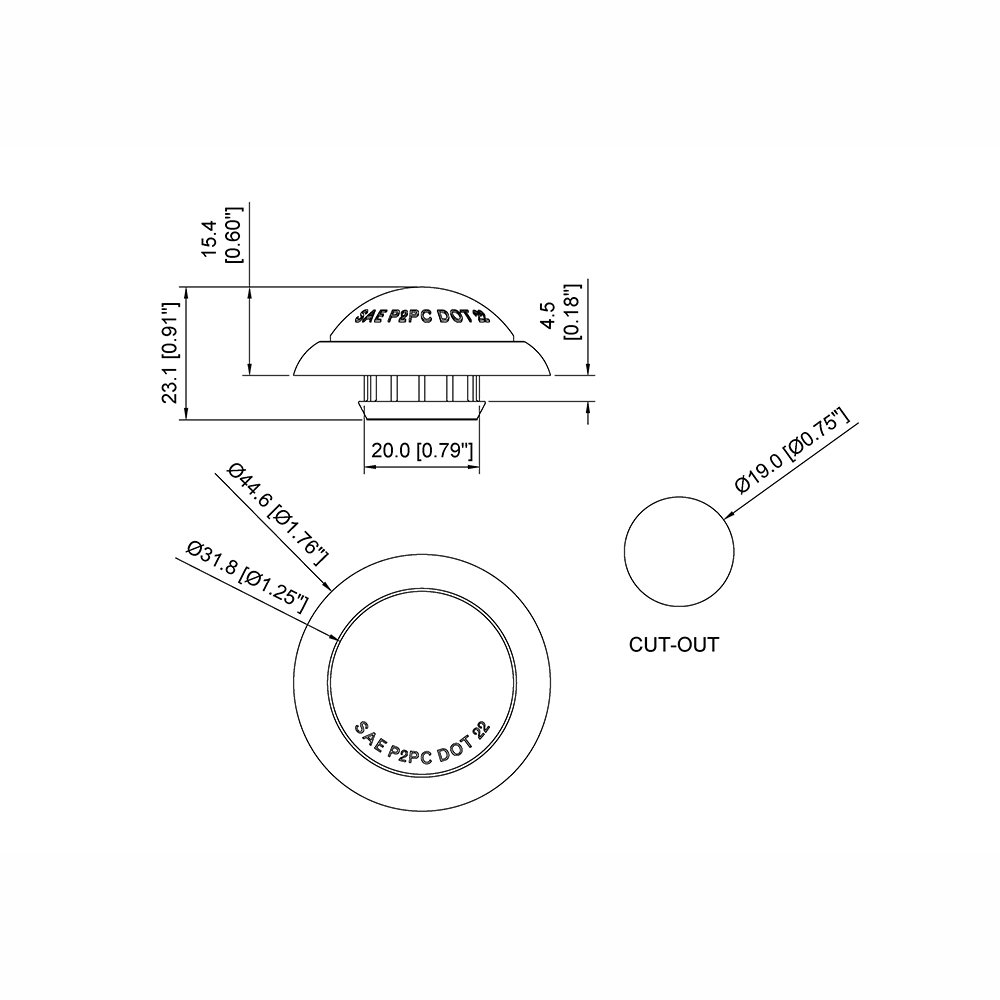

• Easy installation by cutting out a 3/4” (19mm) hole and pushing in
• Two-wire design includes separate lead and ground wires with .180 (4.5mm)
bullet connectors, or stripped wires w/o connector
• PC lens, ABS housing and LED circuitry completely sealed by epoxy to ensure
a permanent and water proof seal
• Meets DOT FMVSS 108/SAE requirements, P2 and PC rated
• Rated for 12V, tested to 13.8V

• Also available in multi-voltage 10~30V operating range or 24V by special order

Part No.	Description	Input Voltage	Lighting Color	LED Count	Current Draw (mA) at 13.8V
203007R	Red Light Kit with Bullet Ends	12 V	Red	7	0.08 A
203007A	Amber Light Kit with Bullet Ends	12 V	Amber	7	0.05 A
203007C	White Light Kit with Bullet Ends	12 V	White	7	0.05A
203207R	Red Light Kit with Bullet Ends & SS Ring	12 V	Red	7	0.08 A
203207A	Amber Light Kit with Bullet Ends & SS Ring	12 V	Amber	7	0.05 A
203207C	White Light Kit with Bullet Ends & SS Ring	12 V	White	7	0.05A
203057R	Red Light Kit with Stripped Wire	12 V	White	7	0.08 A
203057A	Amber Light Kit with Stripped Wire	12 V	Amber	7	0.05A
203057C	White Light Kit with Stripped Wire	12 V	White	7	0.05A
203257R	Red Light Kit with Stripped Wire & SS Ring	12 V	Red	7	0.08 A
203257A	Amber Light Kit with Stripped Wire & SS Ring	12 V	Amber	7	0.05A
203257C	White Light Kit with Stripped Wire & SS Ring	12 V	White	7	0.05A
203000S	Decorative Finish Ring Stainless Steel Highly Polished, Fits All 203007 Series
