2-1/2" Round LED Marker and Clearance w/ Reflex Reflector, P2 or P2PC Rated

Brand Name:	HOJA or Privately Labelled
Input Voltage:	12V, 10~30V
Functions:	Marker, Clearance
Mounting Type:	Grommet Mount
Standards:	FMVSS 108/SAE
Lens Marking:	P2A, AP2PC
IP Rating:	IP65
Applications:	Truck, Trailer, RV, Speciality Vehicles

E-mail : info@hoja.com.cn

• Available in economical version of (1) SMD LED or regular version of (4) SMD LEDs, super bright LEDs with up-to-date technology

• Grommet mount, fits standard 2-pin plug (PL10)

• Lens with Reflex Reflector

• Features engineered lens optics; functions as clearance light, side marker or identification light

• PMMA (Acrylic) lens and ABS housing ultrasonically welded together to ensure a permanent and water proof seal.

• Meets DOT FMVSS 108/SAE requirements, P2A rated for 102531 & 102534 series, PC & P2A rated for 102561 series

• Rated for 12V, tested to 13.8V

• Also available in multi-voltage 10~30V operating range, or 24V by special order only

Part No.	Description	Input Voltage	Lighting Color	LED Count	LED Type	Current Draw (A) at 13.8V

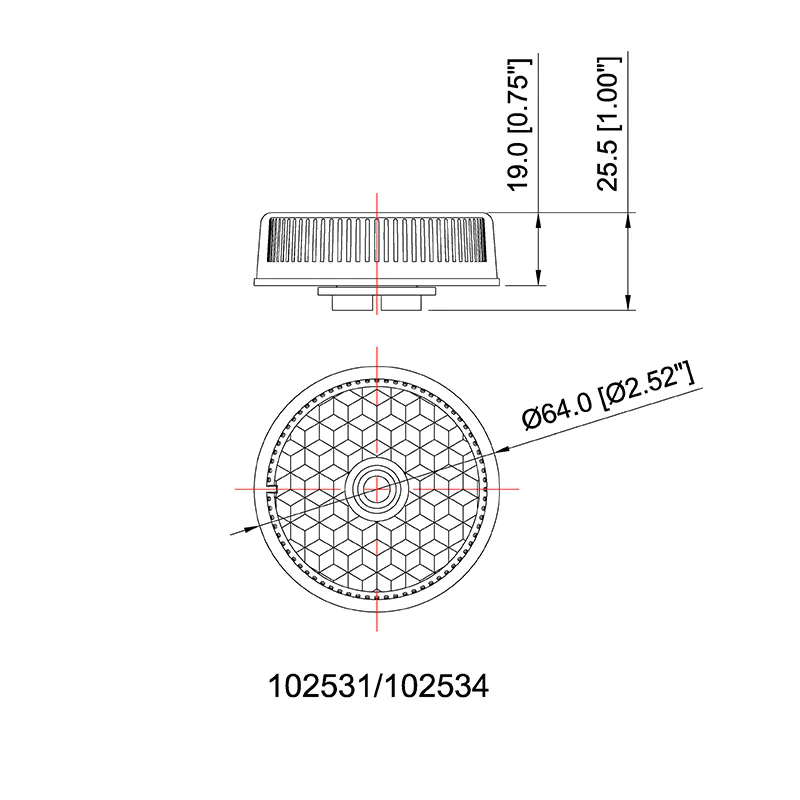

102531A	Grommet Kit	12 V	Amber	1	SMD	0.05 A
102531AL	Lamp Only	12 V	Amber	1	SMD	0.05 A
102531R	Grommet Kit	12 V	Red	1	SMD	0.05 A
102531RL	Lamp Only	12 V	Red	1	SMD	0.05 A
102534A	Grommet Kit	12 V	Amber	4	SMD	0.06 A

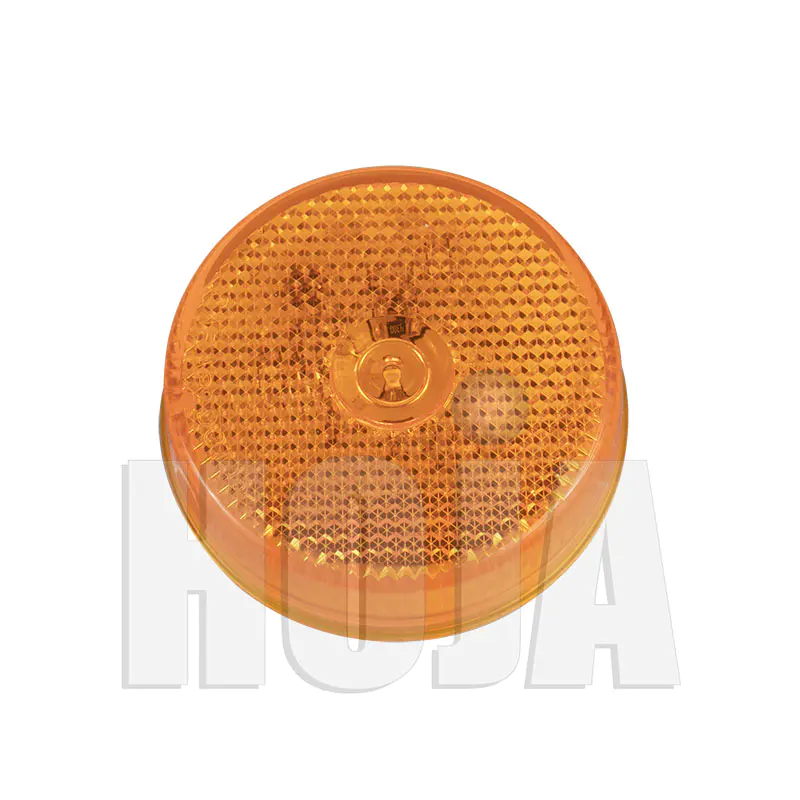

102534AL	Lamp Only	12 V	Amber	4	SMD	0.06 A
102534AM	Grommet Kit, Multi-volt	10~30 V	Amber	4	SMD	0.06 A

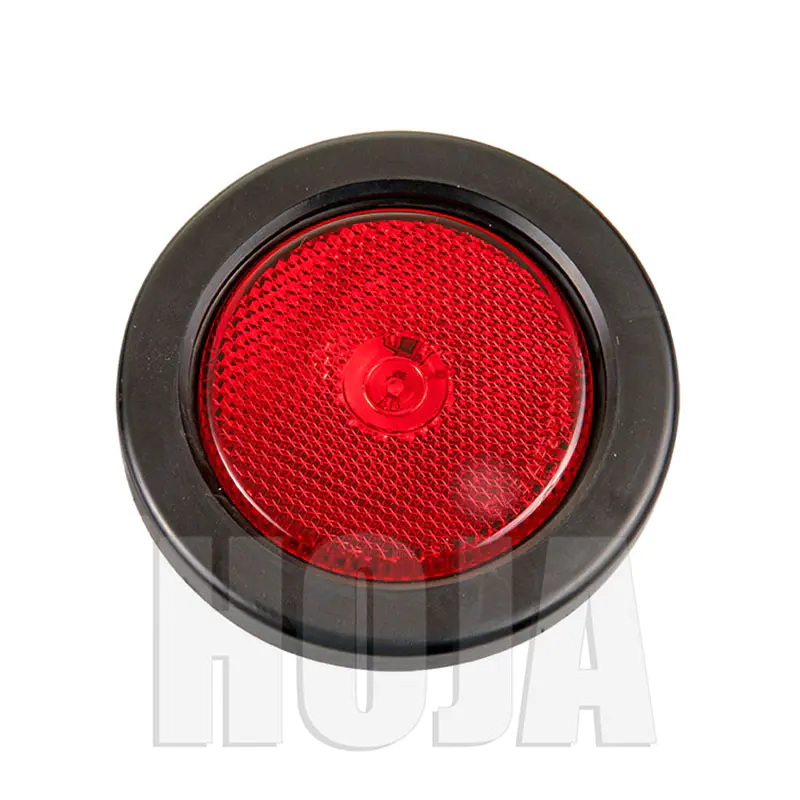

102534R	Grommet Kit	12 V	Red	4	SMD	0.06 A

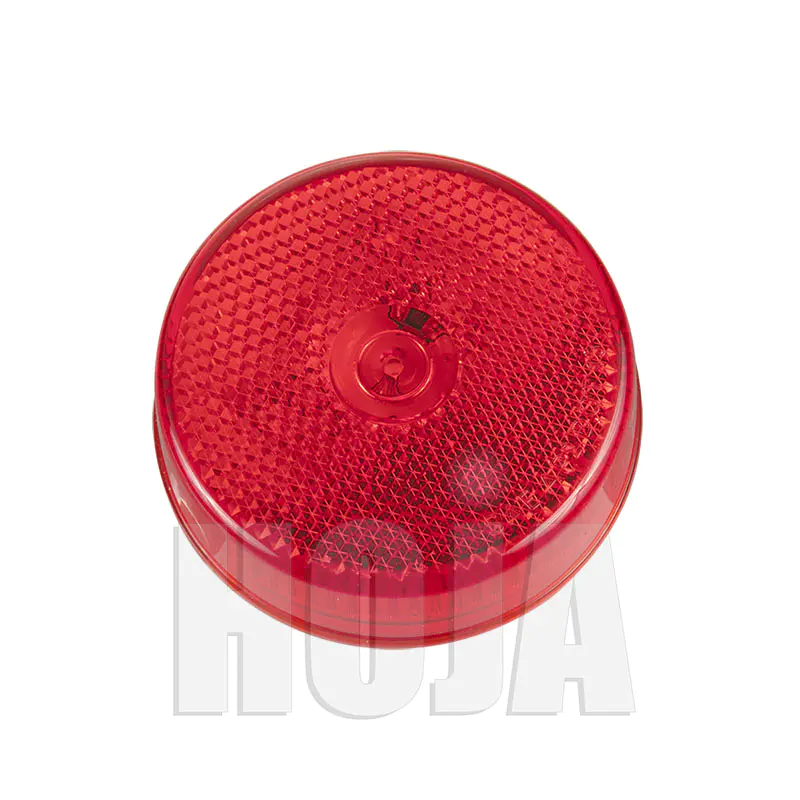

102534RL	Lamp Only	12 V	Red	4	SMD	0.06 A
102534RM	Grommet Kit, Multi-volt	10~30 V	Red	4	SMD	0.06 A

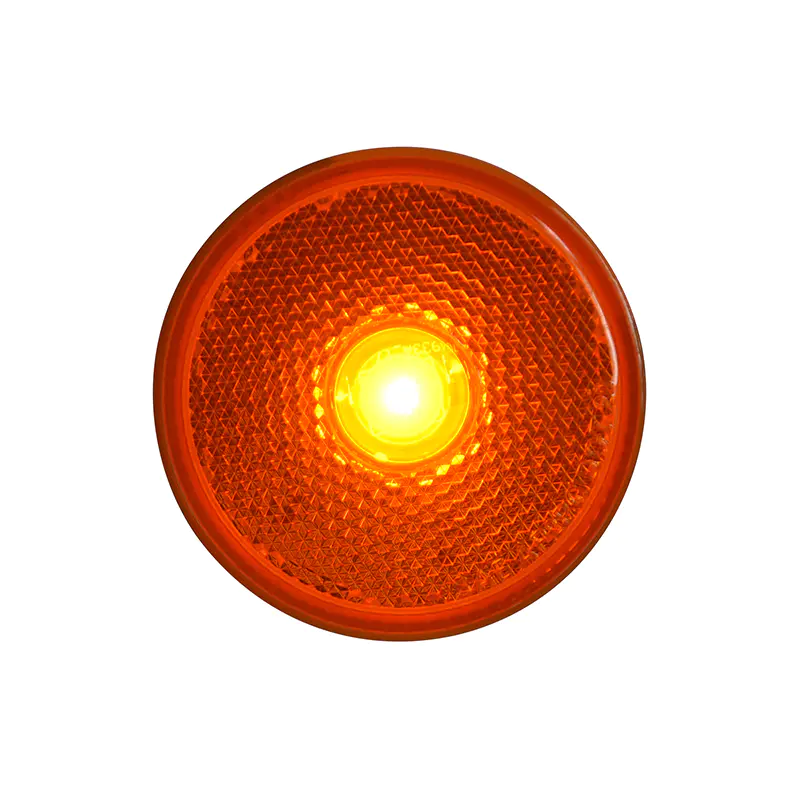

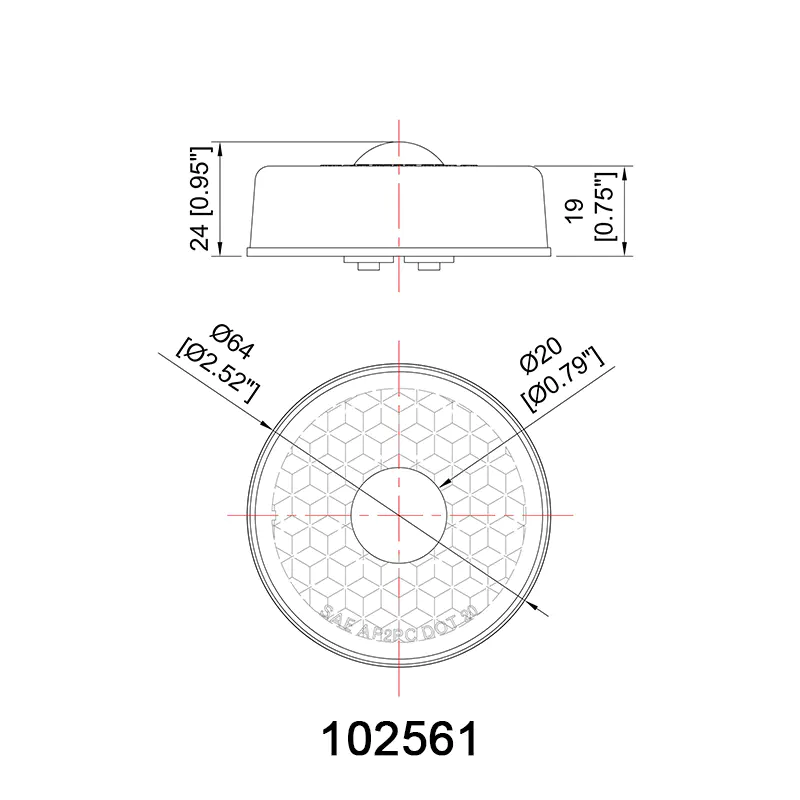

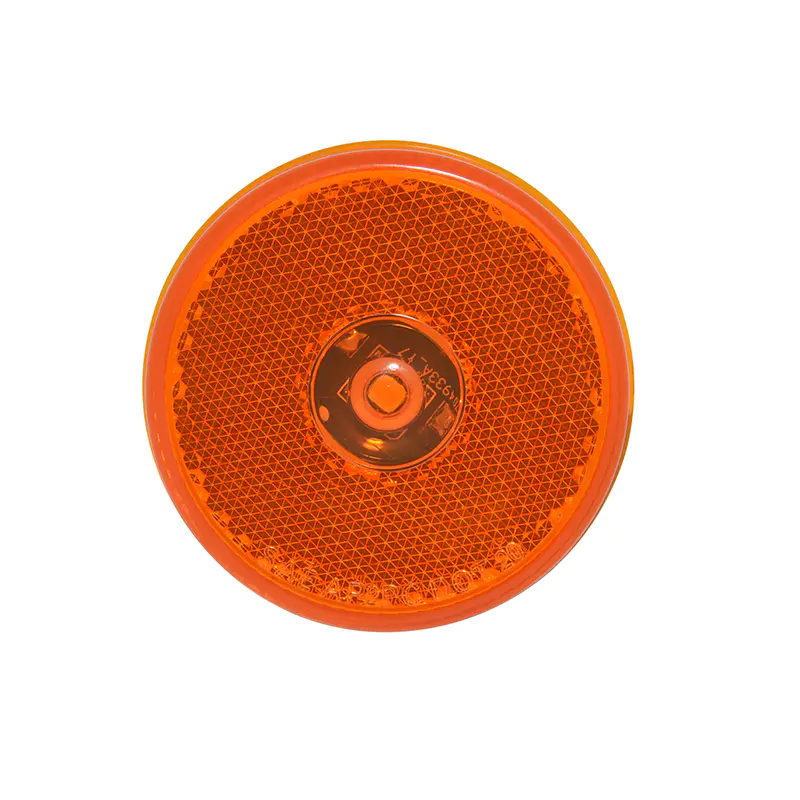

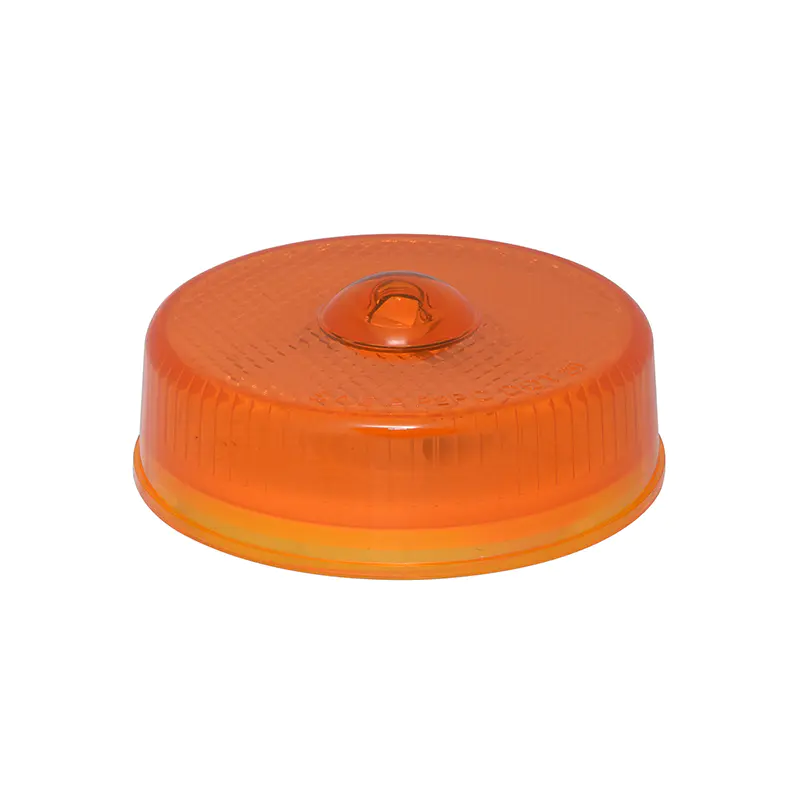

102561A	Grommet Kit	12 V	Amber	1	SMD	0.05 A
102561AL	Lamp Only	12 V	Amber	1	SMD	0.05 A
102561AM	Grommet Kit, Multi-volt	10~30V	Amber	1	SMD	0.05 A

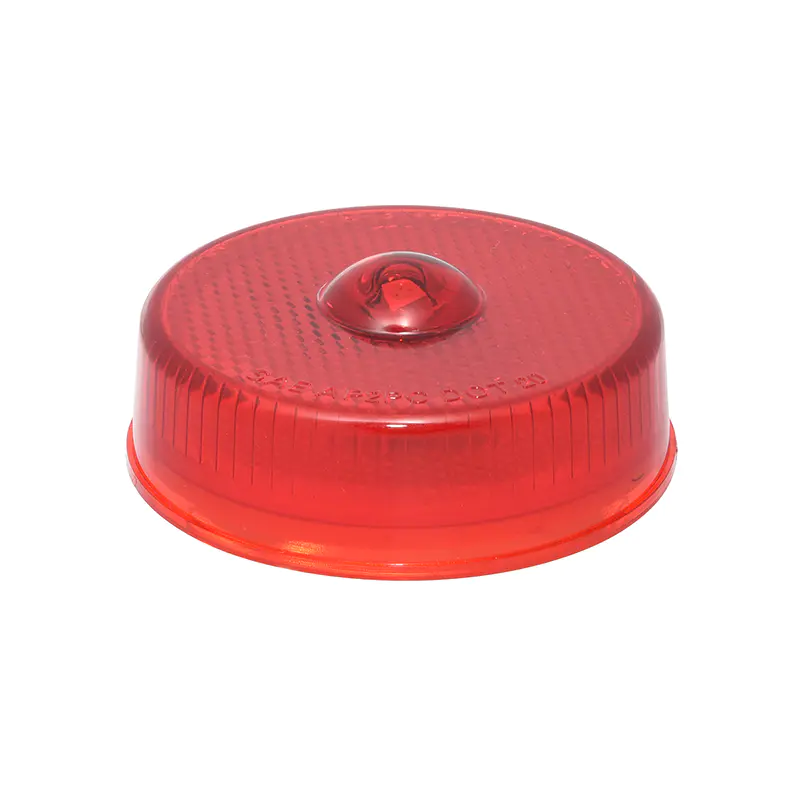

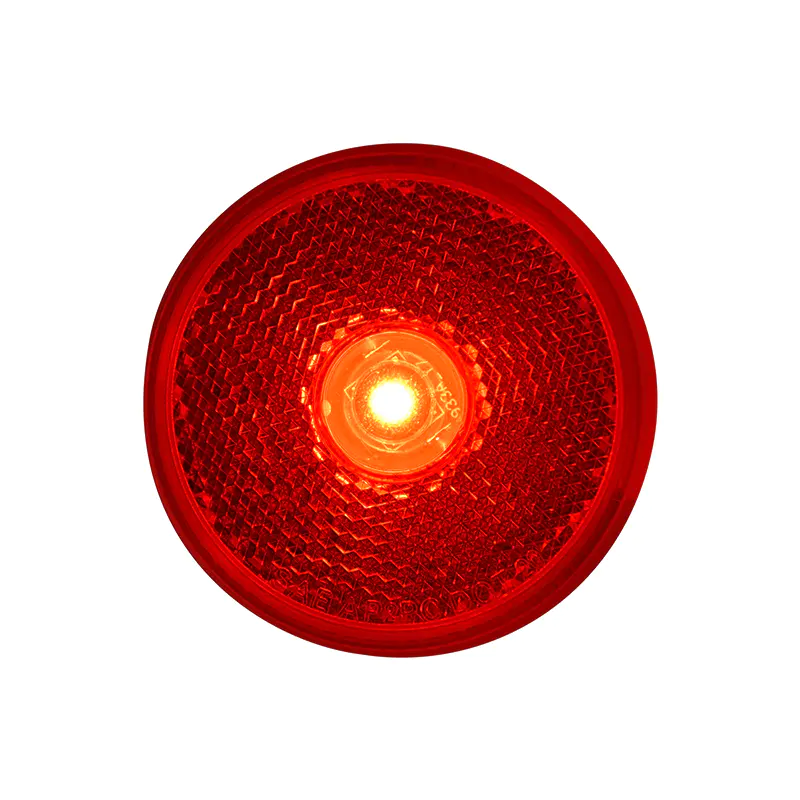

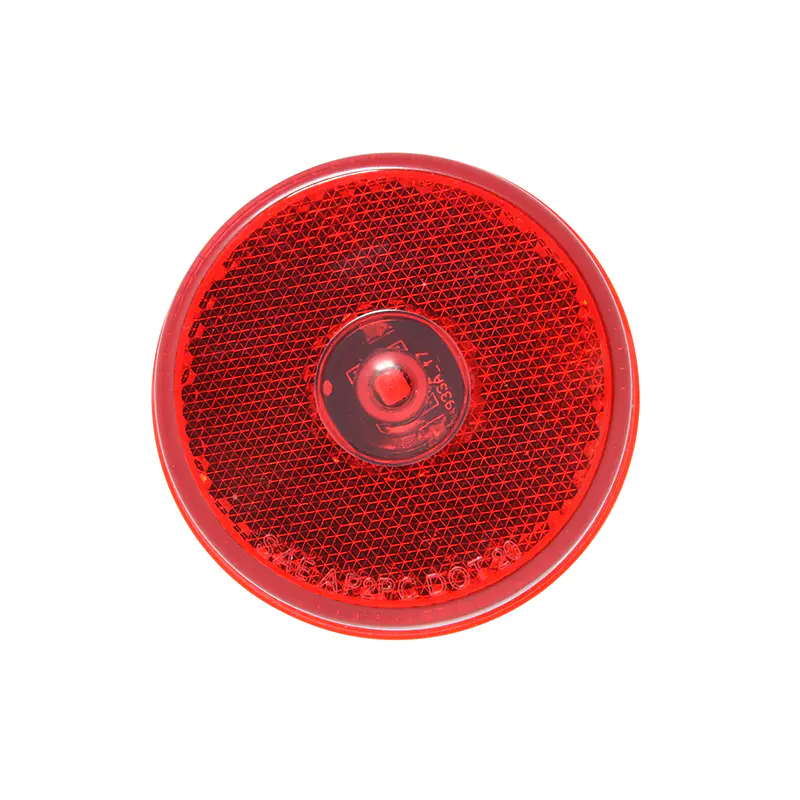

102561R	Grommet Kit	12 V	Red	1	SMD	0.05 A
102561RL	Lamp Only	12 V	Red	1	SMD	0.05 A
102561RM	Grommet Kit, Multi-volt	10~30V	Red	1	SMD	0.05 A
102500G	Grommet only for 2-1/2” Round M/C Lights
922502P	Right Angle 2-pin Plug for 2” & 2-1/2” M/C Lights
