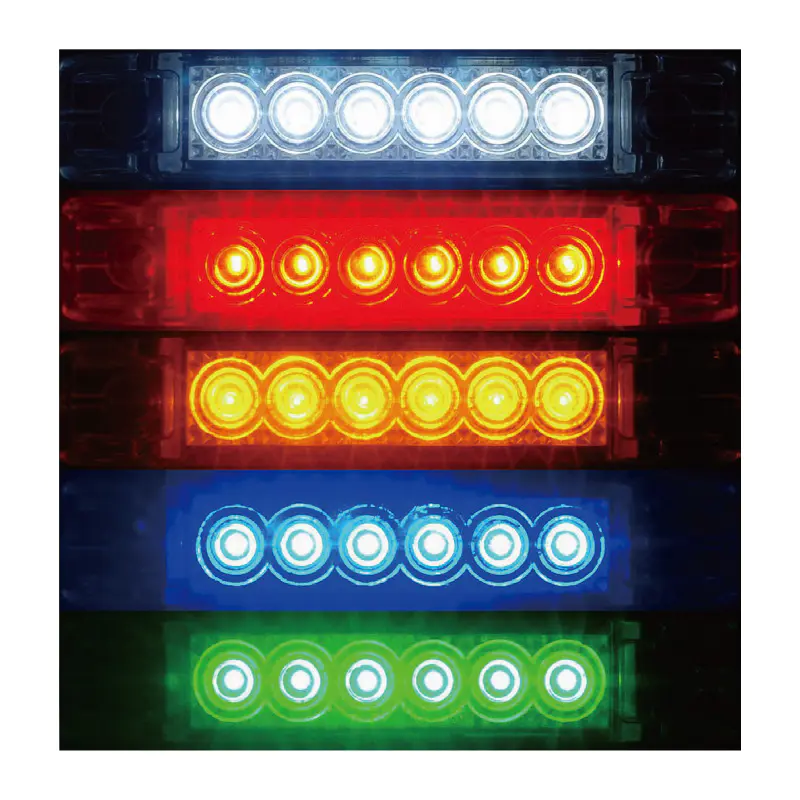

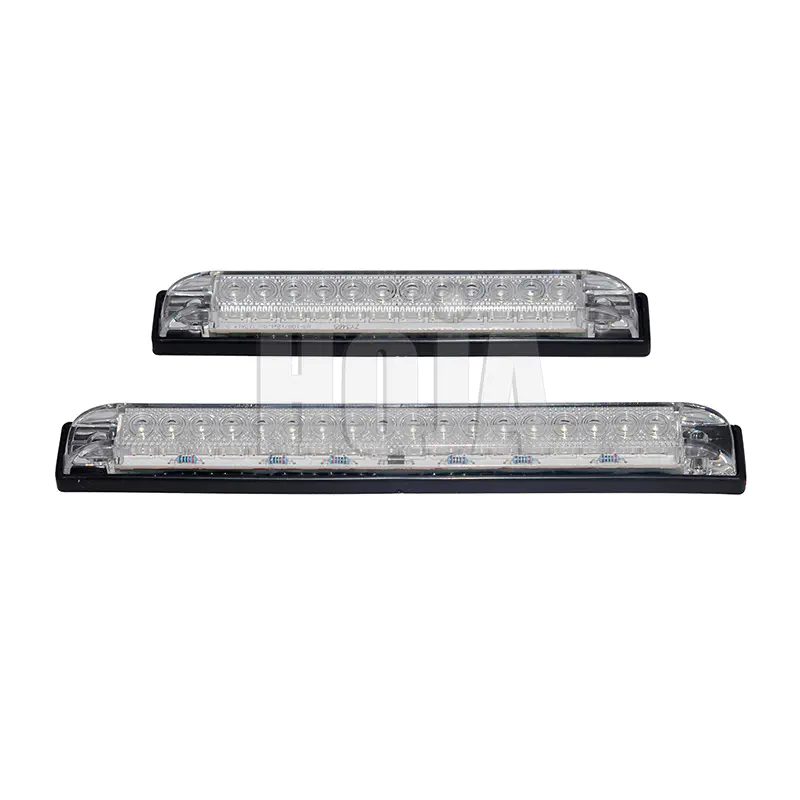

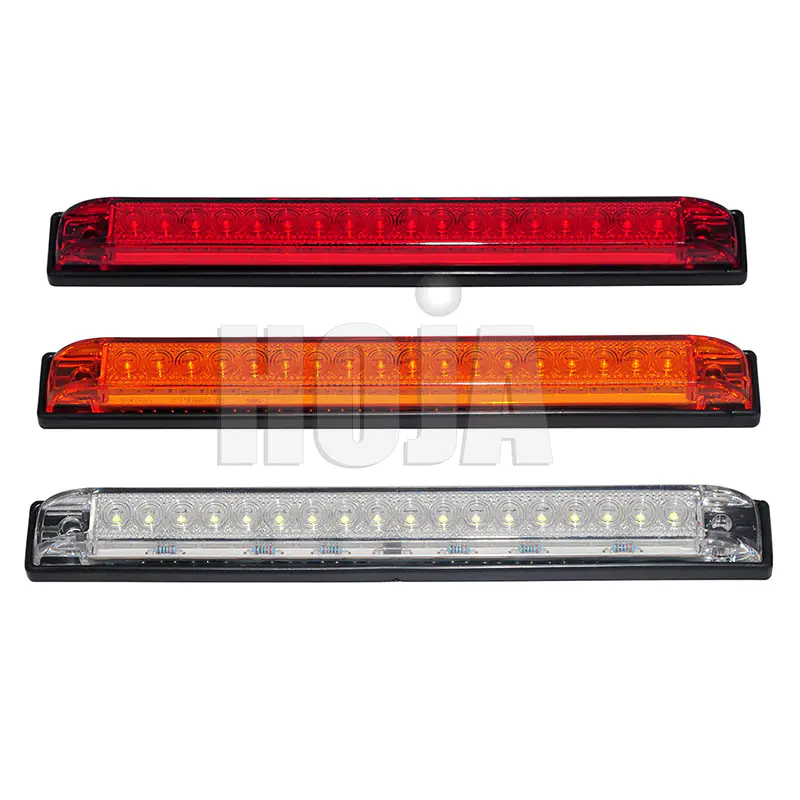

• This surface mount Slim Line LED Light features engineered lens optics; red models can function as identification light and third brake light; Clear, Green and Blue colors are ideal for lighting or decorating interior and exterior of boats, RV and other vehicles
• Black rubber gasket included for mounting to all surfaces
• Two bare end wires of 6" (15mm) length, separate lead wire and ground wire
• Super flux (P4) type LED, super bright
• LED circuitry is completely potted by epoxy to ensure permanent and water proof seal, Submersible!
• Red models meet DOT FMVSS 108/SAE requirements for identification and third brake light
• Rated for 12V, tested to 13.8V
• Also available in multi-voltage 10~30V operating range or 24V by special order
|
Part No. |
Description |
Input Voltage |
Lighting Color |
Lens Color |
LED Count |
LED Type |
Current Draw (mA) at 13.8V |
|
108506R |
4" Light Red |
12V |
Red |
Clear |
6 |
P4 |
100 mA |
|
108506A |
4" Light Amber |
12V |
Amber |
Clear |
6 |
P4 |
100 mA |
|
108506C |
4" Light Clear |
12V |
Clear |
Clear |
6 |
P4 |
40 mA |
|
108506G |
4" Light Green |
12V |
Green |
Clear |
6 |
P4 |
40 mA |
|
108506B |
4" Light Blue |
12V |
Blue |
Clear |
6 |
P4 |
40 mA |
|
108506RR |
4" Light Red/Red |
12V |
Red |
Red |
6 |
P4 |
100 mA |
|
108506AA |
4" Light Amber/Amber |
12V |
Amber |
Amber |
6 |
P4 |
100 mA |
|
108712R |
6" Light Red |
12V |
Red |
Clear |
12 |
P4 |
200 mA |
|
108712A |
6" Light Amber |
12V |
Amber |
Clear |
12 |
P4 |
200 mA |
|
108712C |
6" Light Clear |
12V |
Clear |
Clear |
12 |
P4 |
80 mA |
|
108712G |
6" Light Green |
12V |
Green |
Clear |
12 |
P4 |
80 mA |
|
108712B |
6" Light Blue |
12V |
Blue |
Clear |
12 |
P4 |
80 mA |
|
108712RR |
6" Light Red/Red |
12V |
Red |
Red |
12 |
P4 |
200 mA |
|
108712AA |
6" Light Amber/Amber |
12V |
Amber |
Amber |
12 |
P4 |
200 mA |
|
108918R |
8" Light Red |
12V |
Red |
Clear |
18 |
P4 |
300 mA |
|
108918A |
8" Light Amber |
12V |
Amber |
Clear |
18 |
P4 |
300 mA |
|
108918C |
8" Light Clear |
12V |
Clear |
Clear |
18 |
P4 |
120 mA |
|
108918G |
8" Light Green |
12V |
Green |
Clear |
18 |
P4 |
120 mA |
|
108918B |
8" Light Blue |
12V |
Blue |
Clear |
18 |
P4 |
80 mA |
|
108918RR |
8" Light Red/Red |
12V |
Red |
Red |
18 |
P4 |
300 mA |
|
108918AA |
8" Light Amber/Amber |
12V |
Amber |
Amber |
18 |
P4 |
300 mA |
