• Surface mount & Snap-on lens; detachable PC lens with reflex reflector for red color only, engineered lens optics; Black ABS base with 4 mounting holes
• Functions as Stop, Tail and Turn combined
• (10) SMD LEDs, super bright and long life span up to 50,000 hours
• LEDs & PCB circuitry are fully potted by epoxy on the base to ensure a permanent and water-proof seal.
• Direct lead wires with stripped wire ends
• Meets ECE requirements, E-mark certified
• Also meets DOT FMVSS 108/SAE requirements
• Rated for 12V, tested to 13.8V
• Also available in multi-voltage 10~30V operating range, or 24V by special order
Part No.
|
Description
|
Input Voltage
|
Lighting Color
|
LED Count
|
LED Type
|
Current Draw
(A) at 13.8V
|
104910R
|

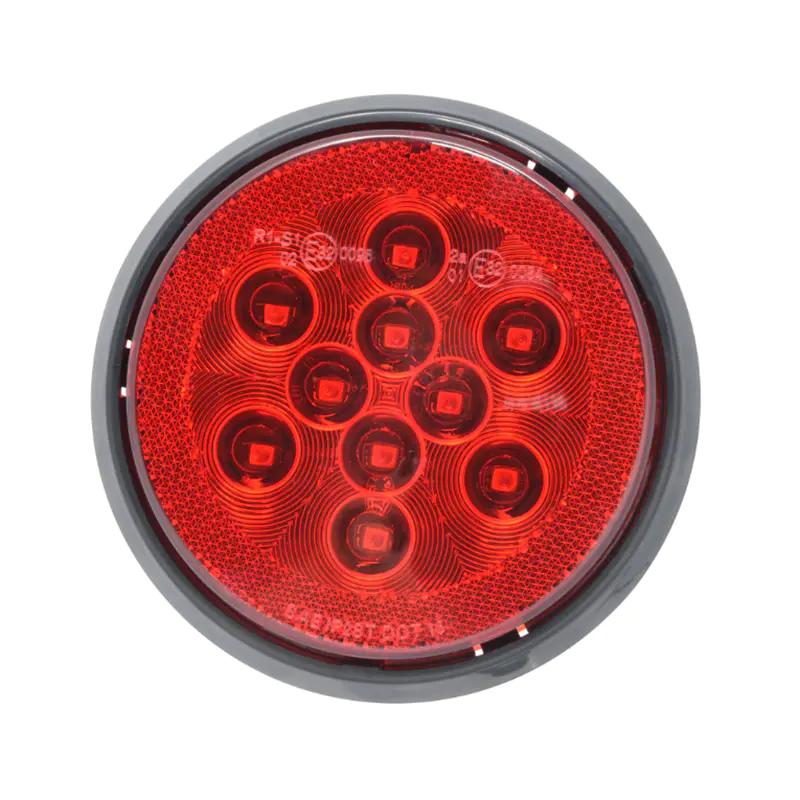

Light with Reflex Lens, Red
|
12 V
|
Red
|
10
|
SMD
|
0.02/0.18 A
|
104910A
|

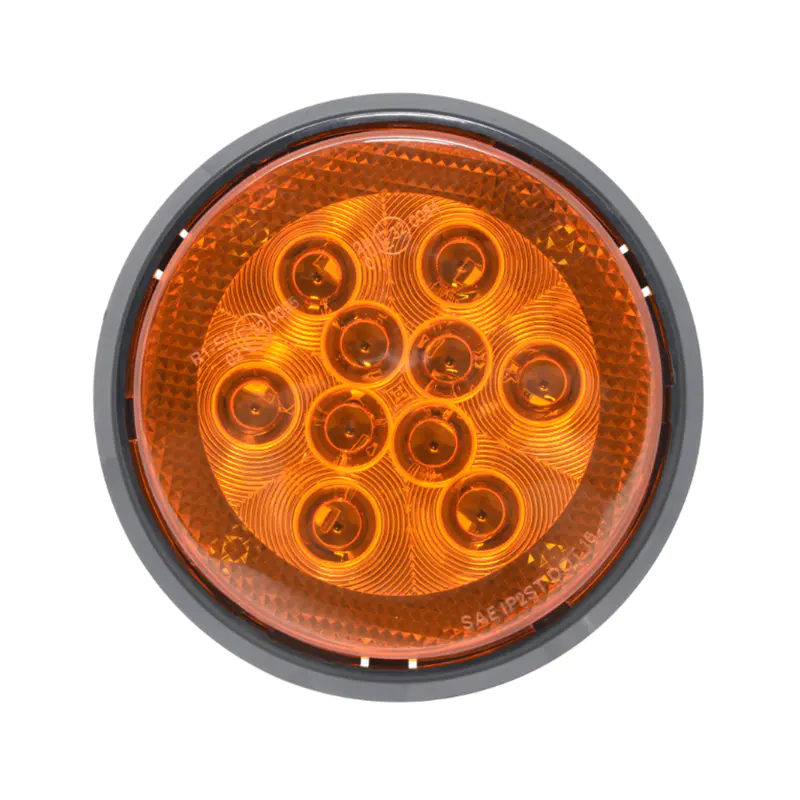

Light, Amber
|
12 V
|
Amber
|
10
|
SMD
|
0.18 A
|
104910C
|
Light, Cool White
|
12 V
|
C.White
|
10
|
SMD
|
0.18 A
|
