4" Round LED Light Stop/Tail/Turn, Flange Mount

Brand Name:	HOJA or Privately Labelled
Input Voltage:	12V, 10~30V
Functions:	Stop, Tail, Turn
Mounting Type:	Flange Mount
Standards:	FMVSS 108/SAE
Lens Marking:	STI
IP Rating:	IP65
Applications:	Truck, Trailer, RV, Speciality Vehicles

E-mail : info@hoja.com.cn

• Flange mount, standard 4” Round STT light series; Stop/Turn/Tail functions combined

• Flange in durable PC material integrated with the lamp body in one unit by sonic welding; flange color available in Black or Grey (-GR)

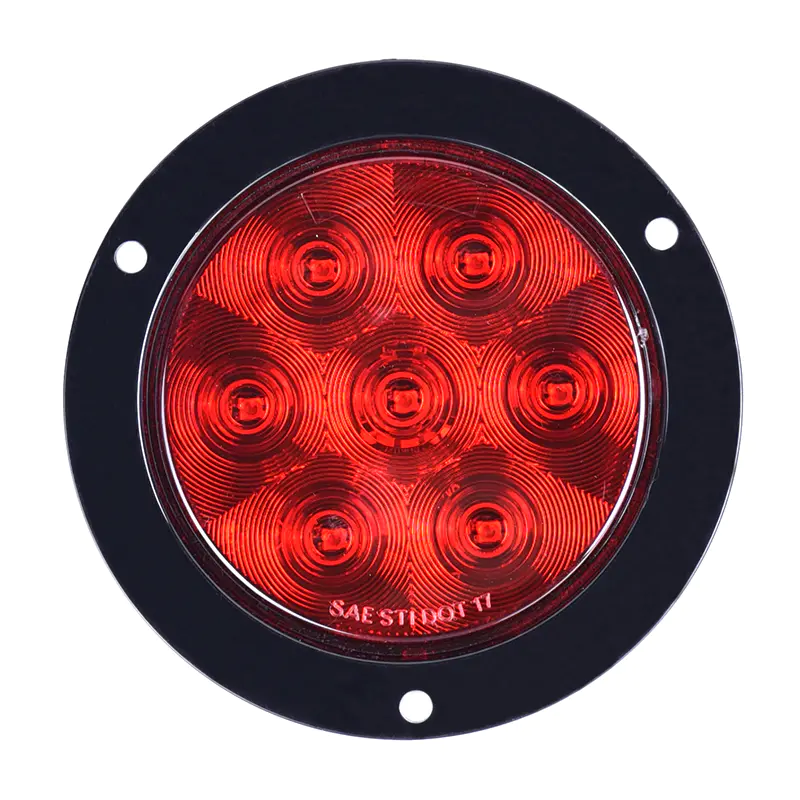

• Choice of 7 LEDs (economical version) or 12 LEDs versions; super bright SMD LEDs of long life span up to 50,000 hours

• Engineered lens optics

• Requires 4-1/4” Mounting Hole (4-1/4” or 114mm cut-out hole diameter)

• PC lens and housing welded together to ensure a permanent and water proof seal.

• Available in standard right angle 3-prong connector or 3-pin AMP male connector

• Meets DOT FMVSS 108/SAE requirements except 7 LED versions of Amber & White colors

• Rated for 12V, tested to 13.8V

• Also available in multi-voltage 10~30V operating range or 24V by special order.

Part No.	Description		Input Voltage	Lighting Color	LED Count	LED Type	Current Draw (A) at 13.8V
	Flange Color	Connector Type

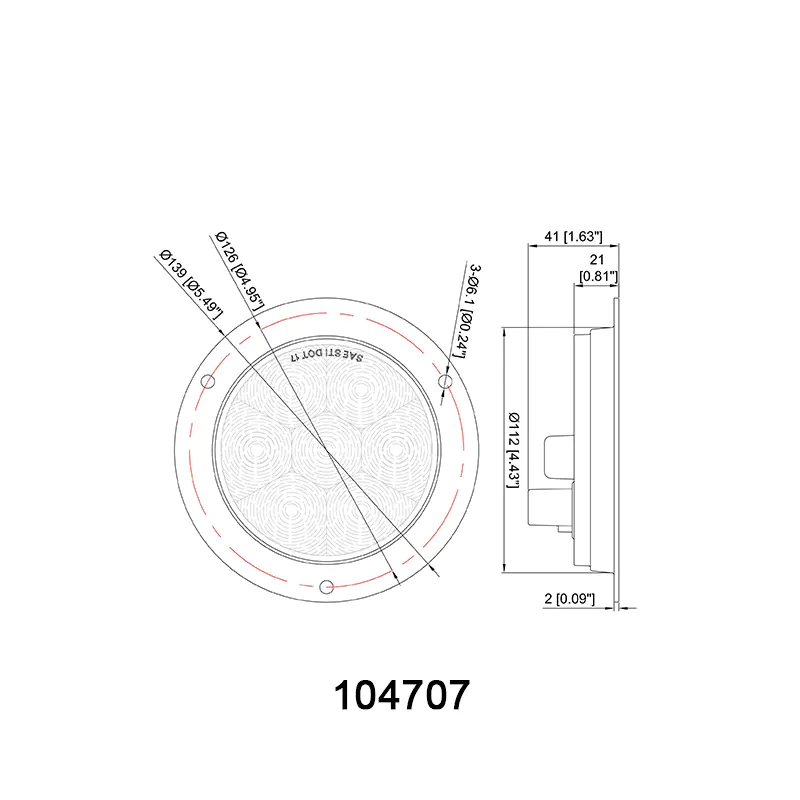

104707R	Black	3-prong	12 V	Red	7	SMD	0.02/0.13 A
104707RM	Black	3-prong	12~24 V	Red	7	SMD	0.02/0.11 A
104707AM	Black	3-prong	12~24 V	Amber	7	SMD	0.02/0.11 A
104707CM	Black	3-prong	12~24 V	White	7	SMD	0.20 A

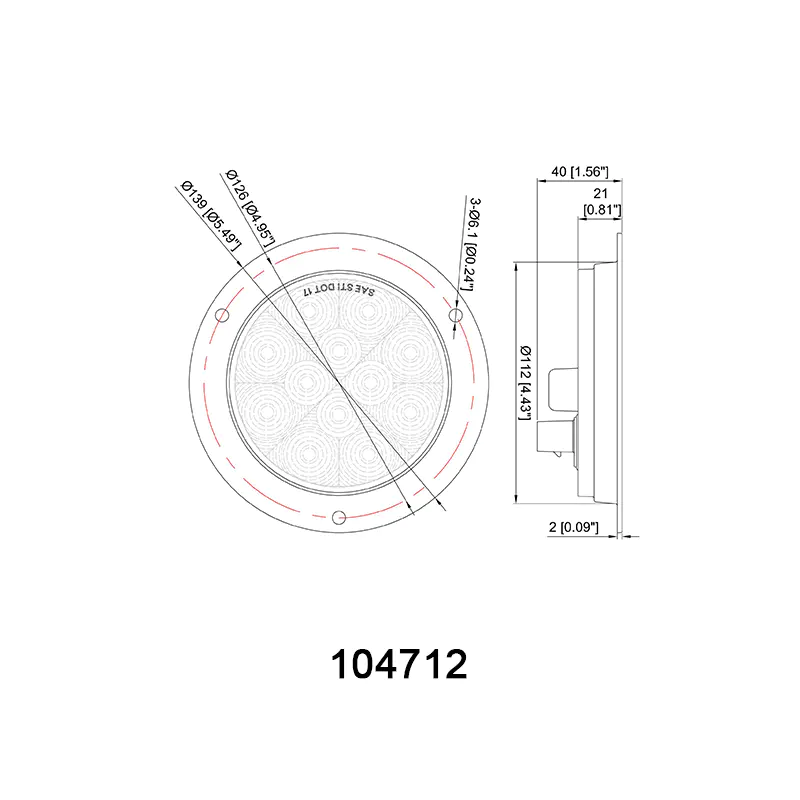

104712R	Black	3-prong	12 V	Red	12	SMD	0.02/0.19 A
104712A	Black	3-prong	12 V	Amber	12	SMD	0.02/0.19 A
104712C	Black	3-prong	12 V	White	12	SMD	0.30A
104712RM	Black	3-prong	12~24 V	Red	12	SMD	0.02/0.11 A
104712AM	Black	3-prong	12~24 V	Amber	12	SMD	0.02/0.11 A
104712CM	Black	3-prong	12~24 V	White	12	SMD	0.16 A

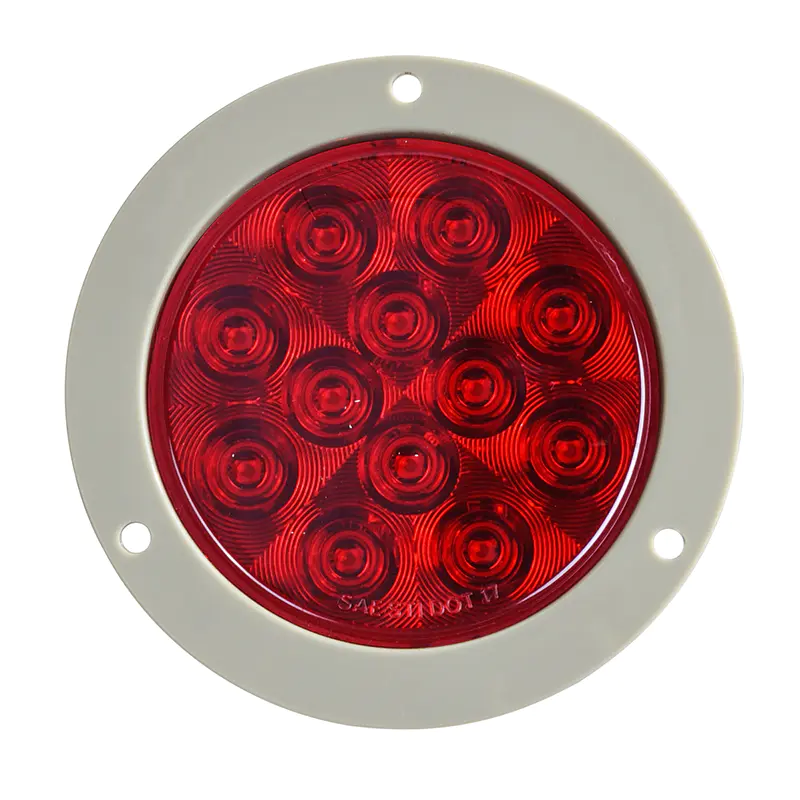

104707R-GR	Grey	3-prong	12 V	Red	7	SMD	0.02/0.13 A
104707RM-GR	Grey	3-prong	12~24 V	Red	7	SMD	0.02/0.11 A
104707AM-GR	Grey	3-prong	12~24 V	Amber	7	SMD	0.02/0.11 A
104707CM-GR	Grey	3-prong	12~24 V	White	7	SMD	0.20 A
104707R-AMP	Black	AMP	12 V	Red	7	SMD	0.02/0.13 A
104712R-AMP	Black	AMP	12 V	Red	12	SMD	0.02/0.11 A
104712A-AMP	Black	AMP	12 V	Amber	12	SMD	0.02/0.11 A
104712C-AMP	Black	AMP	12 V	White	12	SMD	0.16 A
104707R-AMP-GR	Grey	AMP	12 V	Red	7	SMD	0.02/0.13 A
104712R-AMP-GR	Grey	AMP	12 V	Red	12	SMD	0.02/0.11 A
104712A-AMP-GR	Grey	AMP	12 V	Amber	12	SMD	0.02/0.11 A
104712C-AMP-GR	Grey	AMP	12 V	White	12	SMD	0.16 A
906403P	Right Angle 3 Prong Plug for 4” Round Light
TE 282104-1	3Pin AMP(Tyco) Type Super Seal Male Plug
