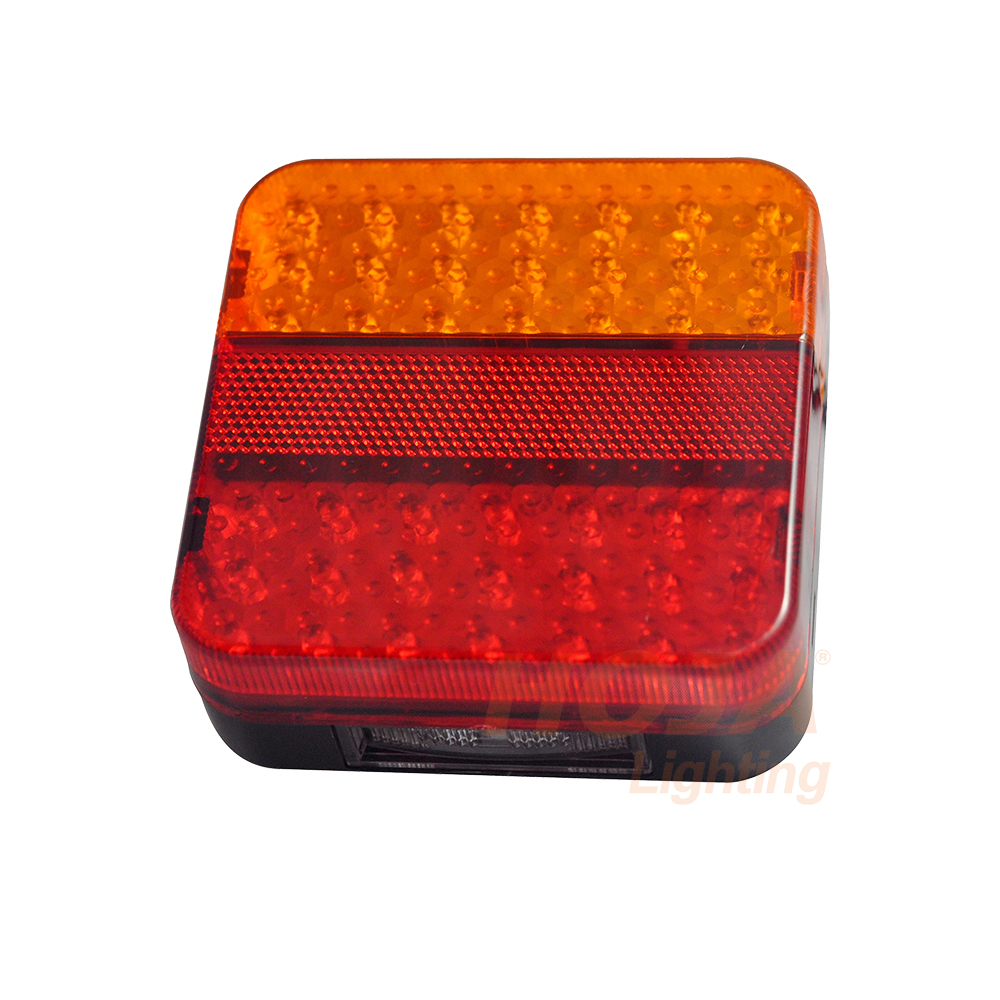

• Innovative square (110mm x 110mm) shape trailer light with engineered
lens optics; combined functions of Stop, Tail (Indicator) and Turn Signal, as
well as an optional License Plate Light. Amber LEDs on top, reflex stripe
in middle, and red LEDs below. Product is ideal for boat trailers and other vehicles
• PC lens and base, the lens is snapped on the base
• LEDs and circuitry are completely sealed by epoxy to ensure permanent
water proof, Submersible
• Super bright Red & Amber LEDs of 5mm round type - long life span up to 100,000 hours
• 2 steel zinc plated bolts (M5 size) and 20cm (8”) cable included for installation
• Rated for 12V, tested to 13.8V
• Also available in multi-voltage 10~30V operating range or 24V by special order
• Meets ECE requirements for all functions (E-MARK certified)
Part No. |
Description |
Nos. of LEDs |
Input Voltage |
Lighting Color |
Current Draw (A) at 13.8V |

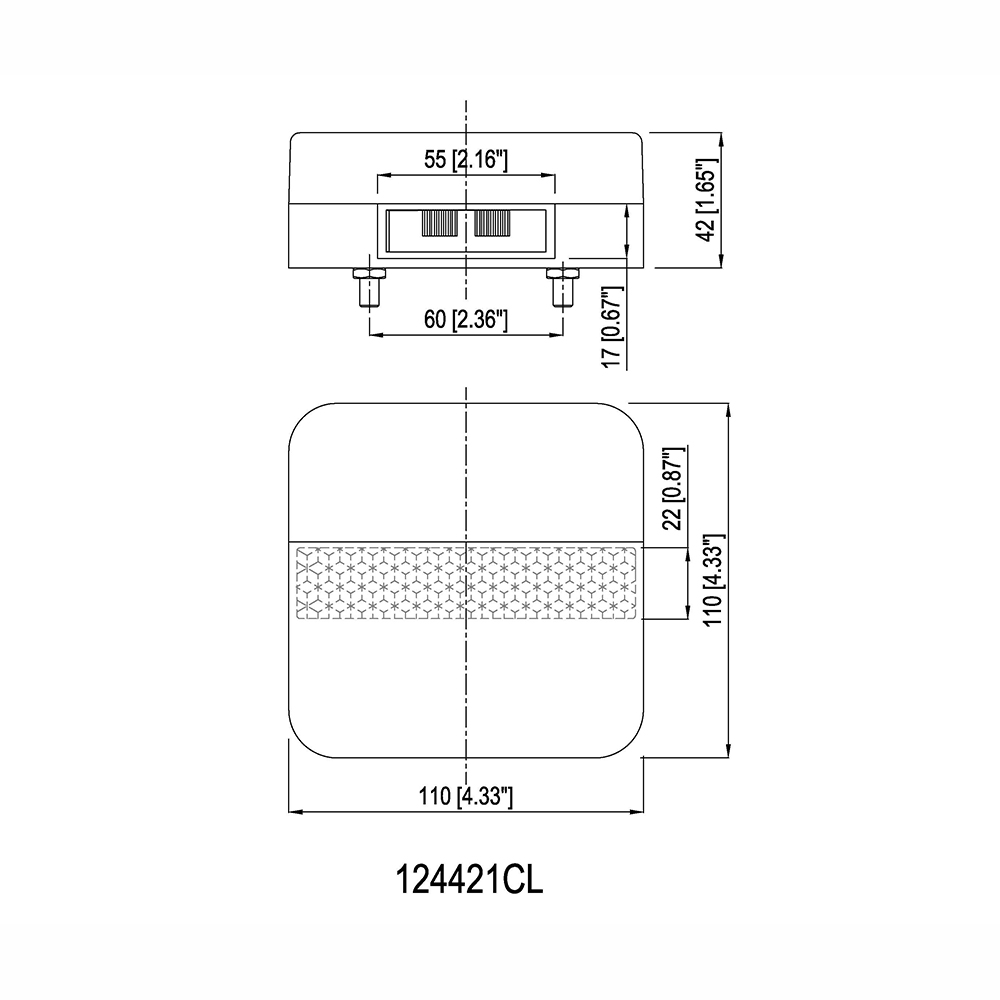

124421CL |
Combination Light Kit, W/O License Plate Light |
21+21 |
12V |
Red/Amber |
0.14/0.14 A |
124426CL |
Combination Light Kit, W/ License Plate Light |
21+21+5 |
12V |
Red/Amber/White |
0.14/0.14/0.04 A |
124421CLM |
Combination Light Kit, W/O License Plate Light, Multi-voltage |
21+21 |
12~24V |
Red/Amber |
0.14/0.14 A |
124426CLM |
Combination Light Kit, W/ License Plate Light, Multi-voltage |
21+21+5 |
12~24V |
Red/Amber/White |
0.14/0.14/0.04 A |
