with standard 4-way plugs, black coated license plate bracket with corrosion resistance, and mounting hardware
• Stud mount on industry standard 2” centers
• SMD LEDs, super bright and long life span up to 50,000 hours
• Acrylic lens and durable plastic housing
• Submersible (IP68 rated)
• Meets SAE/FMVSS requirements, lens marking “STI”, “AP2P3PC” on the side marker, and “L” on the license plate light
• Rated for 12V, tested to 13.8V
Part No. |
Description |
Input Voltage |
LED Count & Lighting Color |
LED Type |
Current Draw (A) at 13.8V |
126767-KIT |

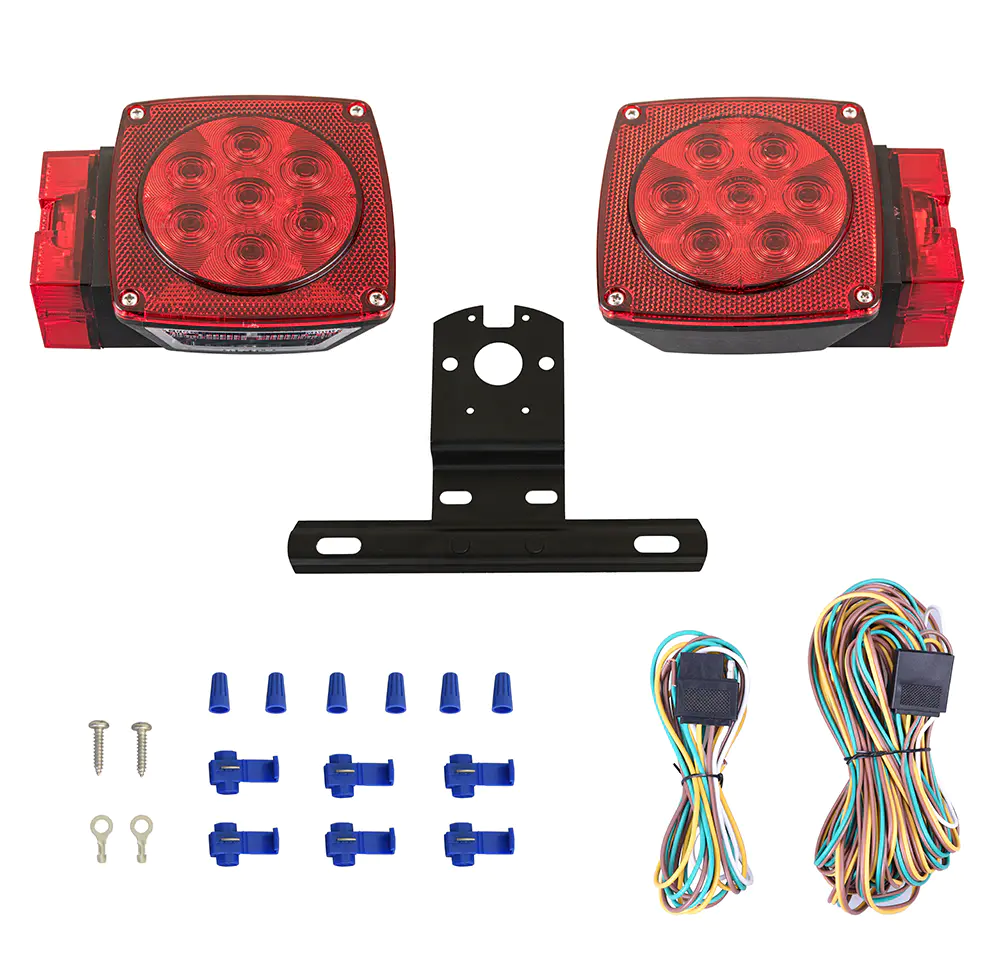

Square LED Combination Tail Light Kit for Over 80” |
12V |
7 Red+6 Red +3 White/7 Red+6 Red |
SMD |
Stop/Turn: 0.2 A Tail/Mark/License: 0.16 A |
126867-KIT |

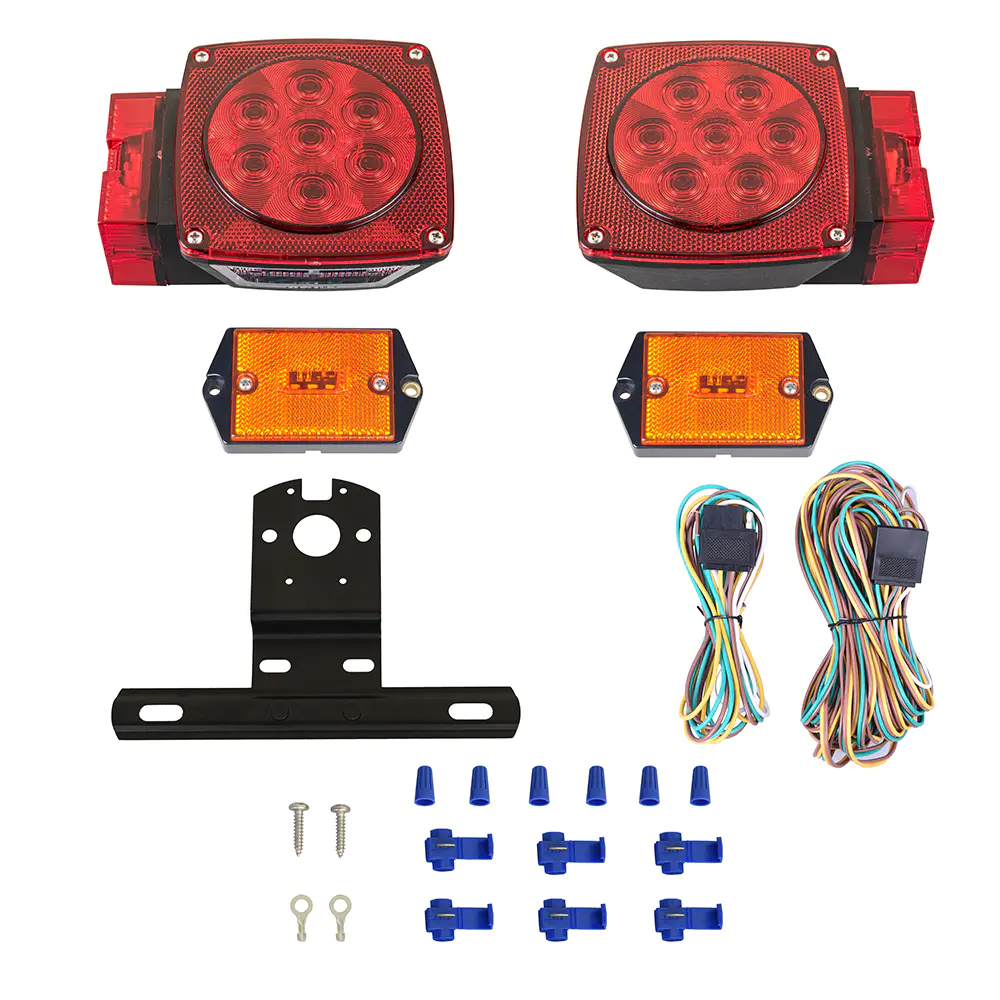

Square LED Combination Tail Light Kit for Over 80” w/ Side Marker Lights |
12V |
7 Red+6 Red +3 White/7 Red+6 Red/ 3 Amber |
SMD |
top/Turn: 0.2 A Tail/Mark/License: 0.16 A/ Side Marker:0.08A |
