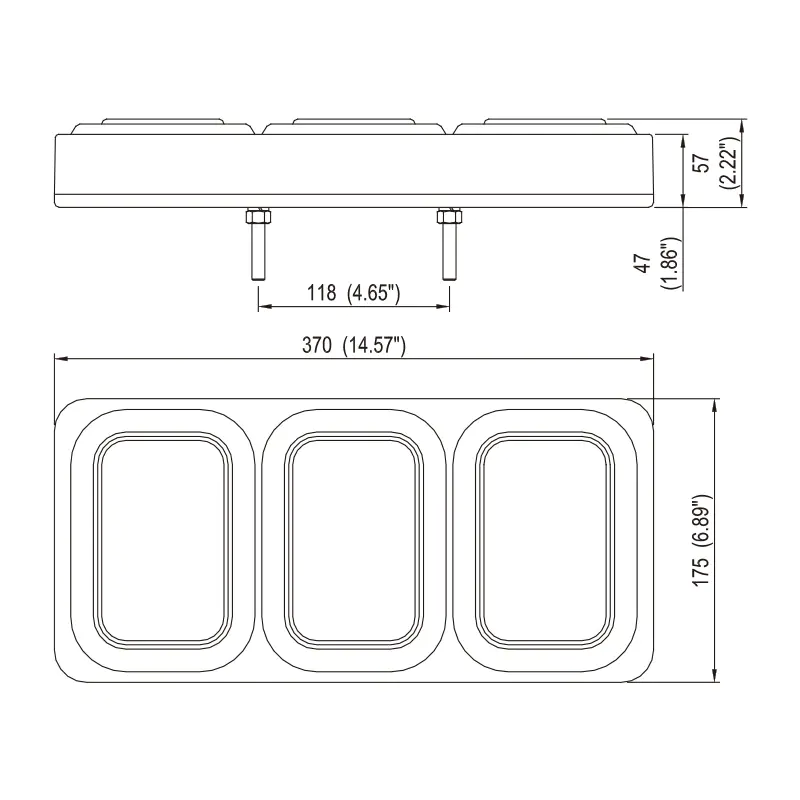

• LED Tail Light Box assembly consists of three rectangular Red/Amber/White lights plus one round amber marker light; ideal for trailers and trucks
• Combination of functions: Red light for Stop (brake) and Tail (indicator),Amber light for Turn Signal and White light for Reverse (Back-up); all built-in one plastic box; left hand and right hand as a set
• Each light uses super bright SMD LEDs
• Each light is sealed by welding to ensure a permanent and water proof seal
• 5 core cable of colored wires in 1 meter (40") length for easy connection with electrical controller or power system
• Individual light meets ECE requirements (E-MARK certified)
• Rated for 12V, tested to 13.8V
• Also available in multi-voltage 10~30V operating range, or 24V by special order
|
Part No. |
Description |
Input Voltage |
LED Count |
Lighting Color |
Current Draw (mA) at 13.8V |
|
151503B |
LED Tail Light Box, 3 Rectangular Light Assembly, Stop/Tail/Turn/Reverse Functions, 12V |
12V |
|
||
|
151503B2 |
LED Tail Light Box, 3 Rectangular Light Assembly, Stop/Tail/Turn/Reverse Functions, 24V |
24V |
|
||
|
151503BM |
LED Tail Light Box, 3 Rectangular Light Assembly, Stop/Tail/Turn/Reverse Functions,Multi-voltage 12~24V | 12V～24V | |||
| Stop (Brake) Function, Rear Red Light |
|
12 |
Red |
390 mA |
|
|
Tail (Indicator) Function, Rear Red Light + Amber Side Marker |
|
(1) Red Tail + (1) Marker |
Red + Amber |
150 mA |
|
|
Turn Signal Function, Rear Amber Light |
|
12 |
Amber |
220 mA |
|
|
Reverse Function, Rear White Light |
|
12 |
White |
150 mA |
|
