LED Stop Tail Turn Lights

LED Tail Light Box

LED Tail Light Box

Brand Name: HOJA or Privately Labelled
Input Voltage: 12V, 10~30V
Functions: Stop, Tail, Turn, Back-up
Mounting Type: Stud Mount
Standards: FMVSS 108/SAE, ECE
Lens Marking:
IP Rating: IP65
Applications: Truck, Trailer, RV, Speciality Vehicles

E-mail : info@hoja.com.cn

Product Detail

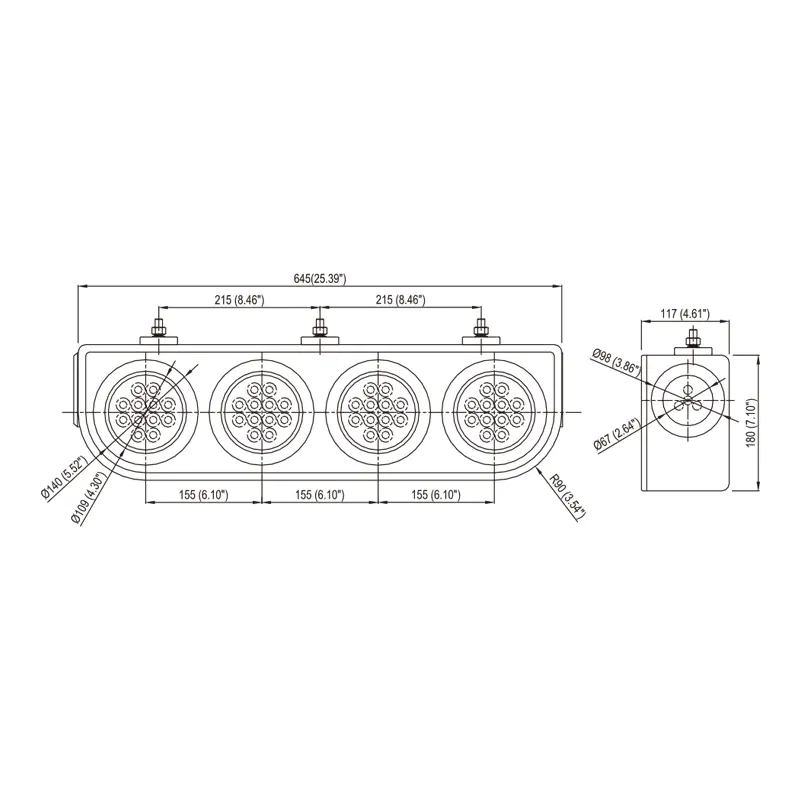

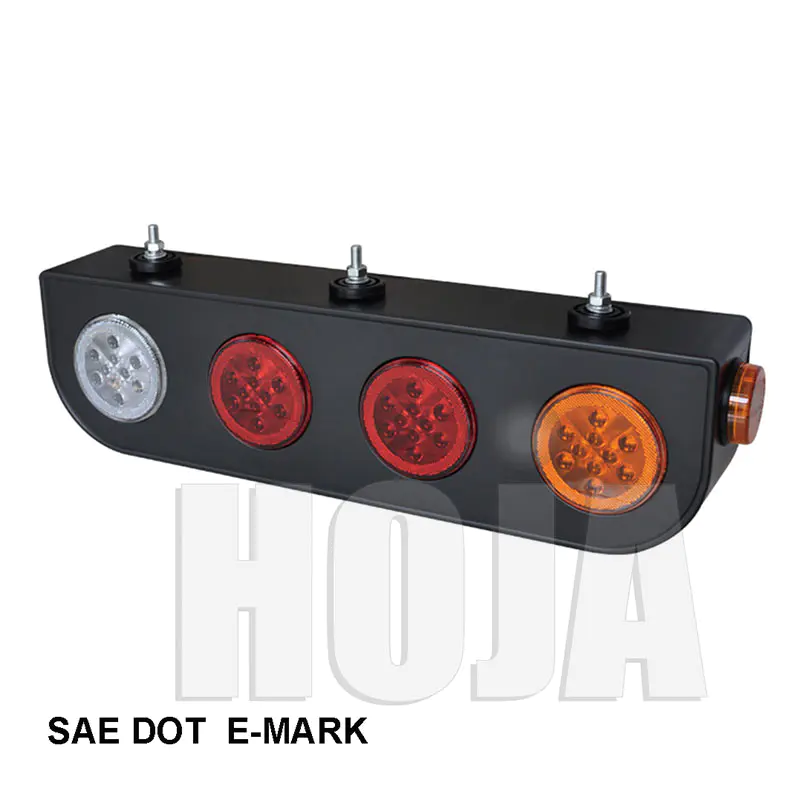

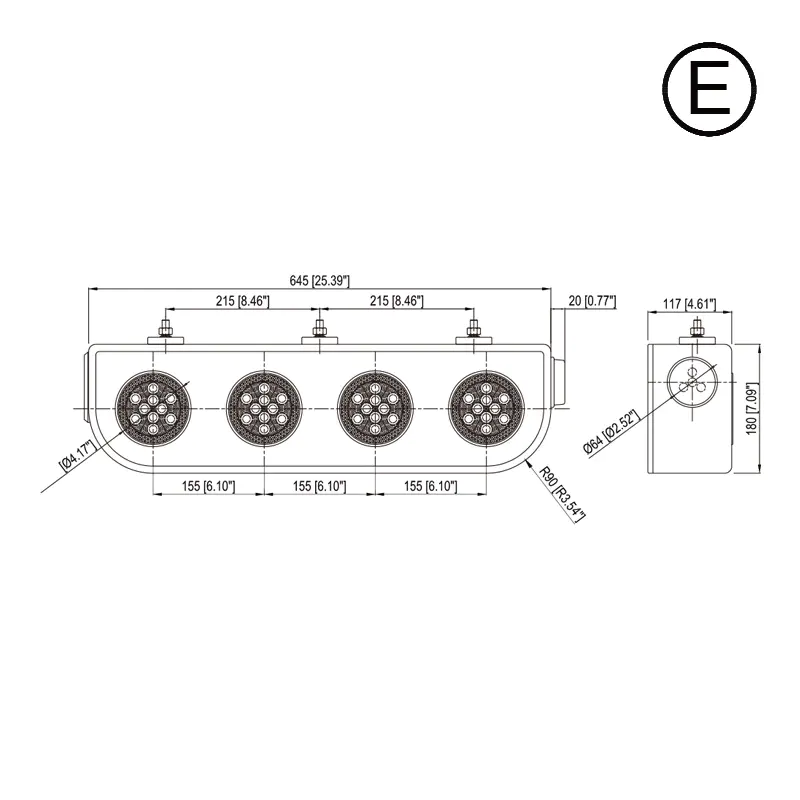

• LED Tail Light Box, assembly of 4" round Red/Amber/White lights on the rear and 2-1/2" round marker light on side, specially designed as combo lights for trucks and trailers. The version (152204B) of stud mounted lights features anti-theft for protection of the lights from being stolen

• Stop (brake), Tail (indicator), Turn Signal and Reverse (Back-up) functions combined, plus an auxiliary amber marker light at the side of box, all built-in one stiff plastic box; left hand and right hand installed as a set for a vehicle

• All the 4" tail lights have reflex reflector incorporated in the lens on the anti-theft version.

• Uses super bright LEDs of super flux (P4) type on grommet mount lights and SMD LEDs on stud mount lights

• 5 core cable of colored wires in 1 meter (40") length for easy connection with electrical controller or power system

• Each light meets DOT FMVSS 108/SAE requirements, all the lights on anti-theft version comply with ECE requirements

• Available in multi-voltage 10~30V operating range, or 24V by special order



Part No.

Description

Input Voltage

Lighting Color

LED Count

Current Draw (mA) at 13.8V

150104B

LED Tail Light Box,Stop/Tail/Turn/Reverse Combined Functions, 12V

12V







150104B2

LED Tail Light Box,Stop/Tail/Turn/Reverse Combined Functions, 24V

24V







150104BM

LED Tail Light Box,Stop/Tail/Turn/Reverse Combined Functions, Multi-voltage 12~24V

12V~24V







152204B

LED Tail Light Box,Stop/Tail/Turn/Reverse Combined Functions, 12V

12V







152204B2

LED Tail Light Box,Stop/Tail/Turn/Reverse Combined Functions, 24V

24V







152204BM

LED Tail Light Box,Stop/Tail/Turn/Reverse Combined Functions, Multi-voltage 12~24V

12V~24V







Stop (Brake) Function, Hi-Mode Rear Red Lamp



Red

12

390 mA

Tail (Indicator) Function, Low-Mode Red Rear Lamp +Amber Side Marker



Red

12 (Rear) + 3 (Side)

150 mA

Turn Signal Function, Rear Amber Lamp



Amber

12

220 mA

Reverse Function, Rear White Lamp



White

12

150 mA
