LED Stop Tail Turn Lights

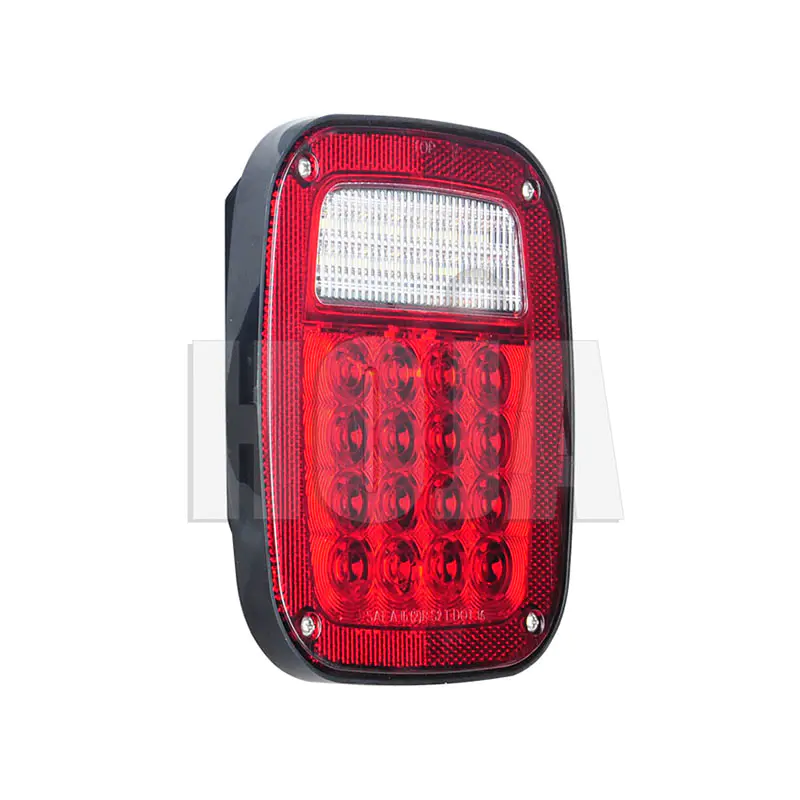

JEEP-Style LED Combo Tail Light STT & Back Up, Low Depth

JEEP-Style LED Combo Tail Light STT & Back Up, Low Depth

Brand Name: HOJA or Privately Labelled
Input Voltage: 12V, 10~30V
Functions: Stop, Tail, Turn, Back up
Mounting Type: Stud Mount
Standards: FMVSS 108/SAE
Lens Marking: I6(2)RS2T
IP Rating: IP65
Applications: Truck, Trailer, RV, Speciality Vehicles

E-mail : info@hoja.com.cn

Product Detail

• Combination functions of Stop/Tail/Turn and Back Up Light with reflex built in

• 16 LEDs for red color and 12 white LEDs for back up

• PC lens and ABS housing, low depth

• Completely sealed, weather tight

• Stud mount with hardware included

• Hard-wired, 4 wires with protective sleeve, wiring instruction on the back of the light

• Meets SAE/FMVSS requirements, lens marking I6(2)RS2T

• Rated for 12V, tested to 13.8V

• Also available in multi-voltage 10~30V operating range, or 24V  by special order only



Part No.

Description

Input Voltage

LED Count & Lighting Color

LED Type

Current Draw (mA) at 13.8V

107116R

Combo Tail Light STT & Back Up

12V

16Red+12White

SMD

Stop/Turn: 0.15 A

Tail: 0.02 A

Back Up: 0.24A

107116RM

Combo Tail Light STT & Back Up, Multi-volt

12~24 V

16Red+12White

SMD

Stop/Turn: 0.13 A

Tail: 0.02 A

Back Up: 0.13A
