• Traditional square style fits most applications as well as retro-fits to replace incandescent versions
• SMD LED technology for super bright and waterproof performance
• Acrylic lens and durable plastic housing

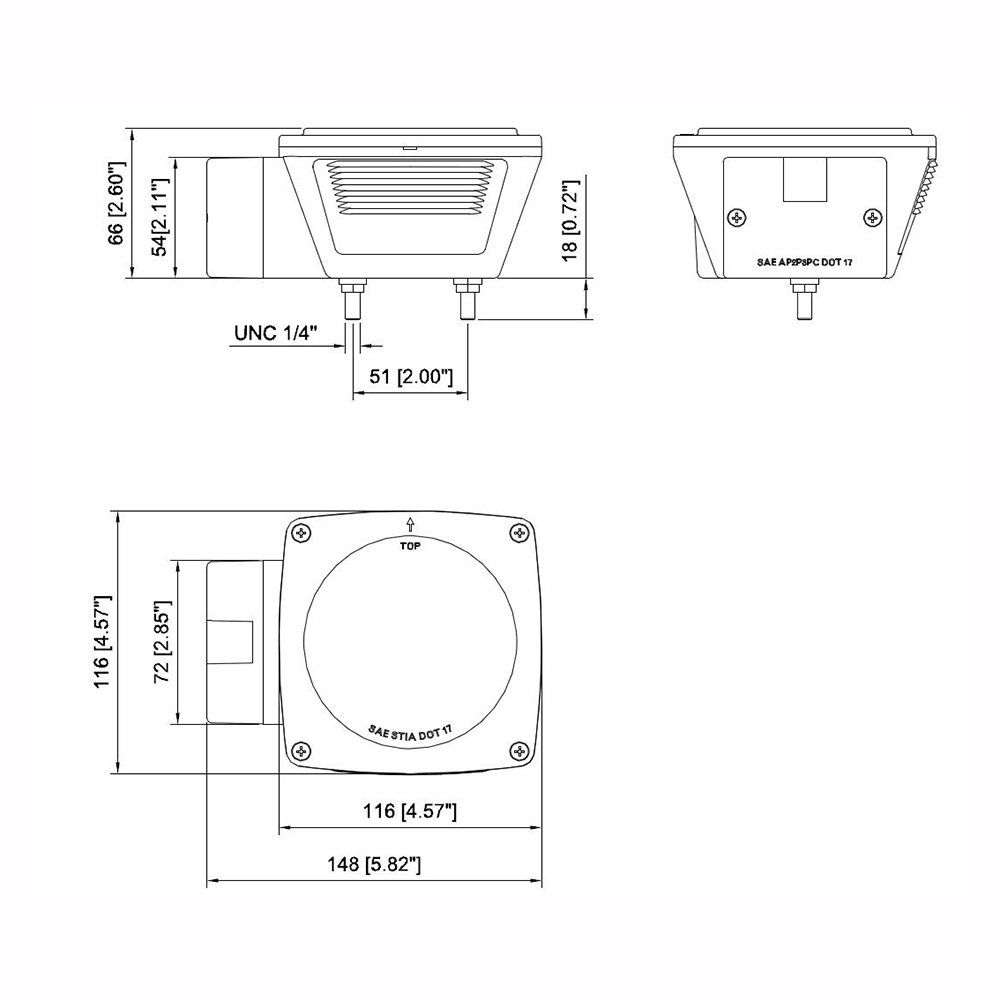

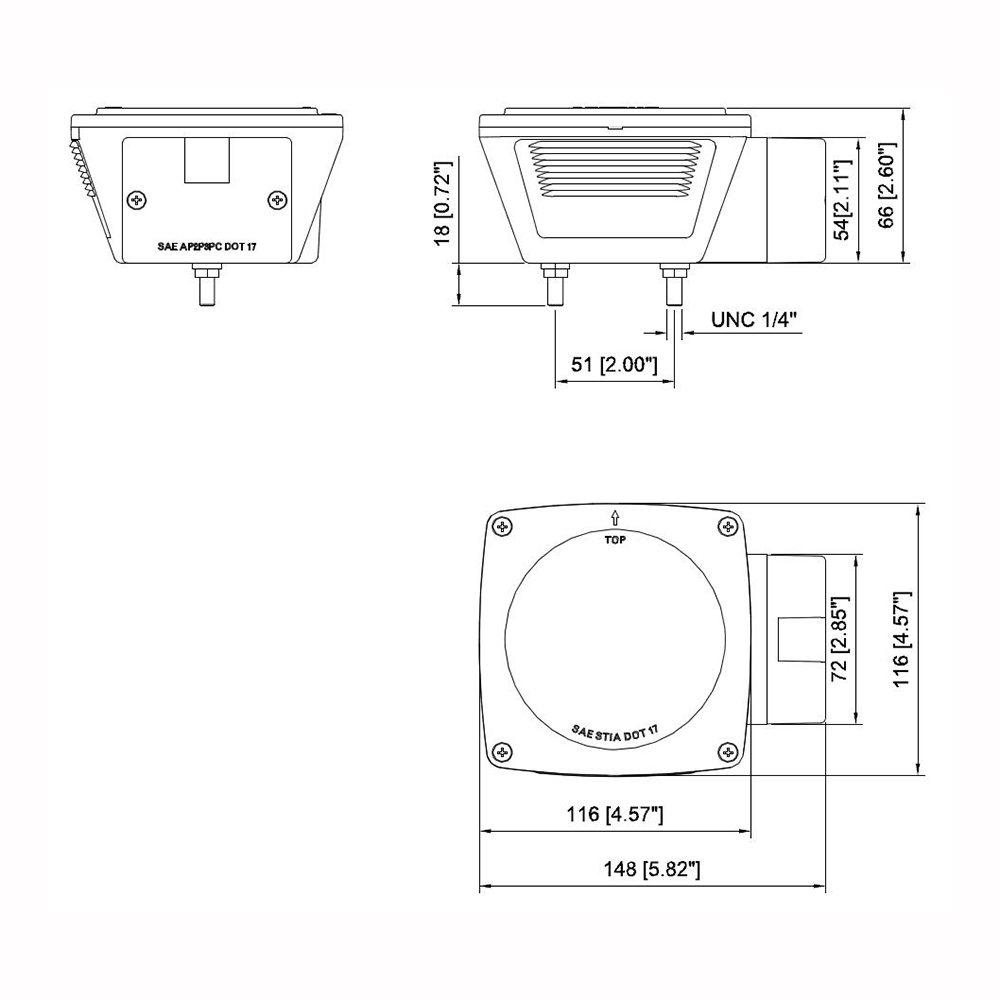

• Stud mount on 2” centers
• Hard wired
• Meets SAE/FMVSS requirements, lens marking “STI”, “AP2P3PC” on the side marker, and “L” on the license plate light
• Rated for 12V, tested to 13.8V
Part No.
Description
Input Voltage
LED Count &
Lighting Color
LED Type
Current Draw
(A) at 13.8V
126767-L

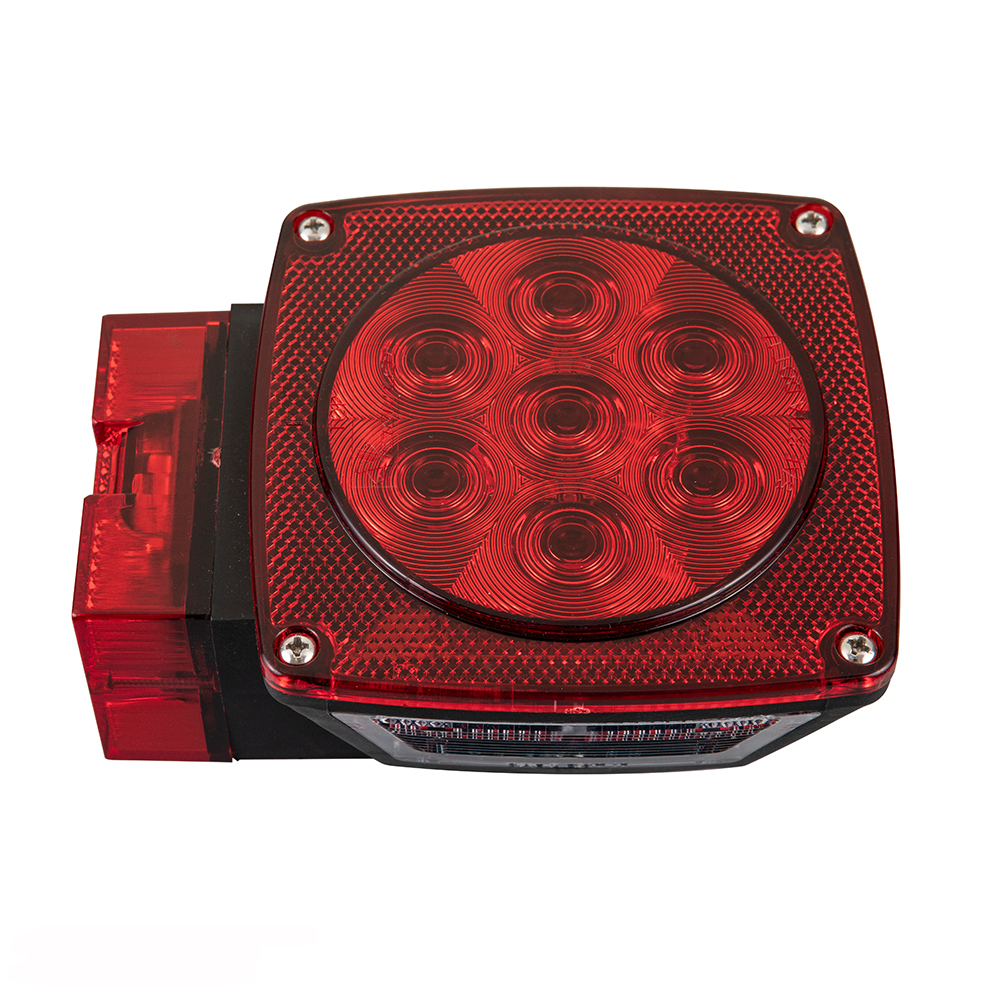

Square LED Combination Tail Lights w/ License Plate Light, Driver (Left) Side, Over 80”
12V
7 Red+6 Red
+3 White
SMD
Stop/Turn: 0.1 A
Tail/Mark/License: 0.10 A

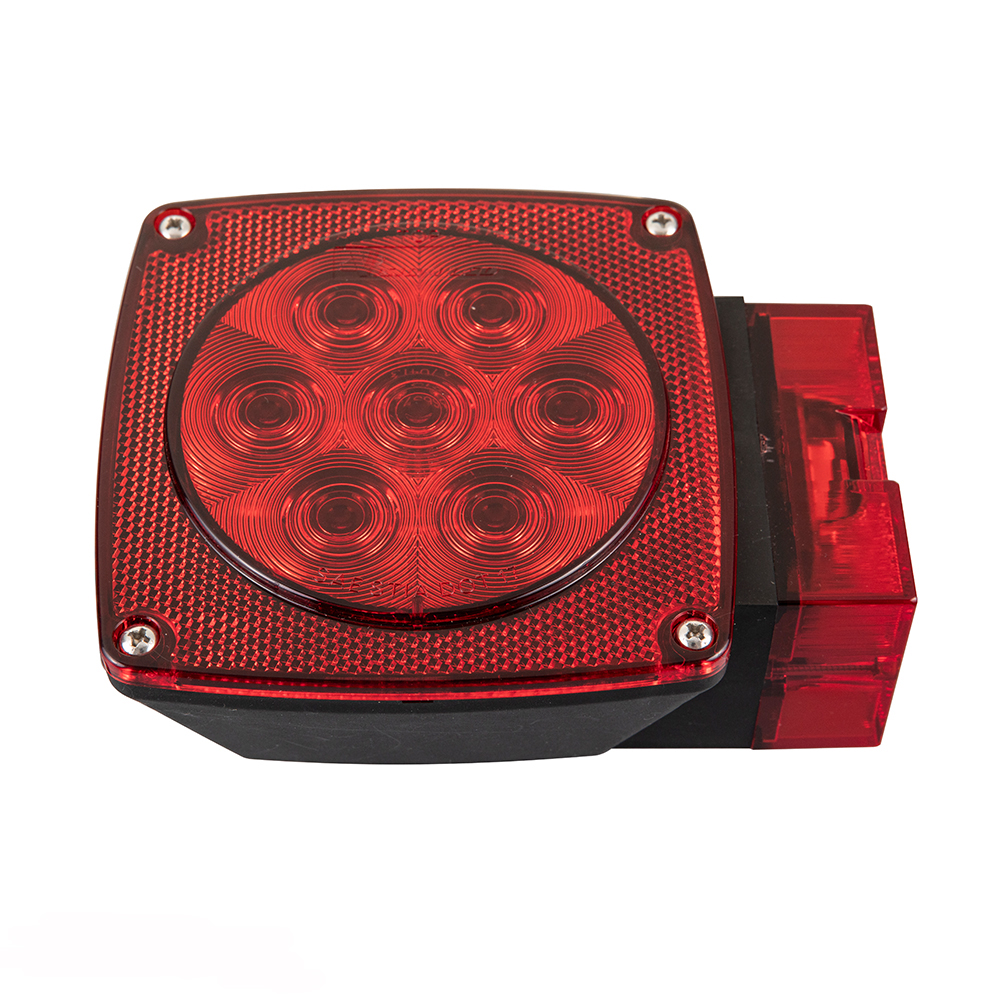

126767-R
Square LED Combination Tail Lights w/o License Plate Light,
Passenger (Right) Side, Over 80”
12V
7 Red+6 Red
SMD
Stop/Turn: 0.1 A
Tail/Mark: 0.06 A
