5.3"×3.4" Rectangular LED Tail Light, STOP/TAIL/TURN

Brand Name:	HOJA or Privately Labelled
Input Voltage:	12V, 10~30V
Functions:	Stop, Tail, Turn
Mounting Type:	Grommet Mount
Standards:	FMVSS 108/SAE
Lens Marking:	STIPP2
IP Rating:	IP65
Applications:	Truck, Trailer, RV, Speciality Vehicles

E-mail : info@hoja.com.cn

• Available in versions of (12) SMD LEDs and (15) SMD LEDs, super bright and long life span up to 100,000 hours

• Features combined functions of Stop/Tail/Turn

• Both versions comply with requirements for Front Park Lamp (P), and (15) LED version can be identified as lamps for LLV (long life vehicle)

• Engineered lens optics, durable PC lens and housing welded in a single unit to ensure a permanent and water proof seal.

• Standard right angle 3-prong connector fitting 3-prong pigtail plug, black PVC grommet mounting

• Both (12) and (15) diode versions meet DOT FMVSS 108/SAE requirements with lens marking "STIPP2", and (12) diode version meets ECE (E-Mark) requirements

• Rated for 12V, tested to 13.8V

• Also available in multi-voltage 10~30V operating range, or 24V by special order only

Part No.	Description	Input Voltage	Lighting Color	LED Count	Current Draw(A) at 13.8V

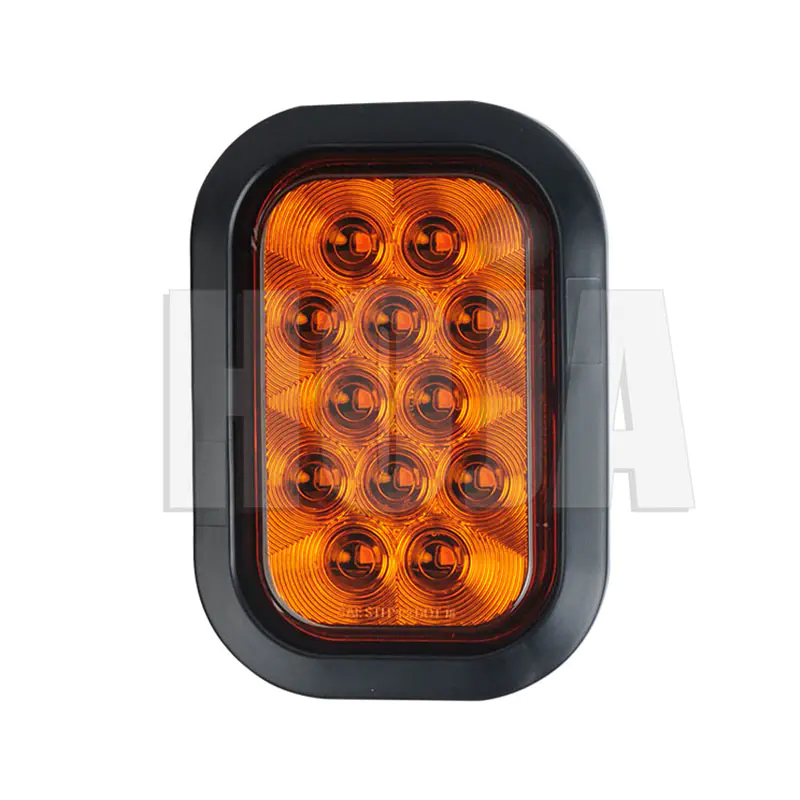

107412A	Grommet Kit	12V	Amber	12	0.16 A

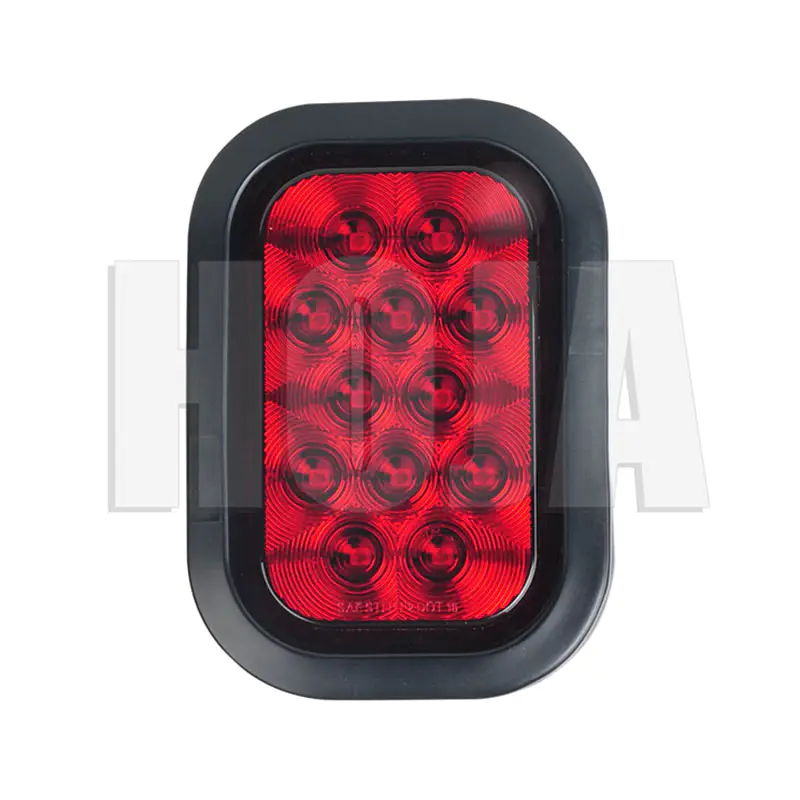

107412R	Grommet Kit	12V	Red	12	0.02/0.18 A

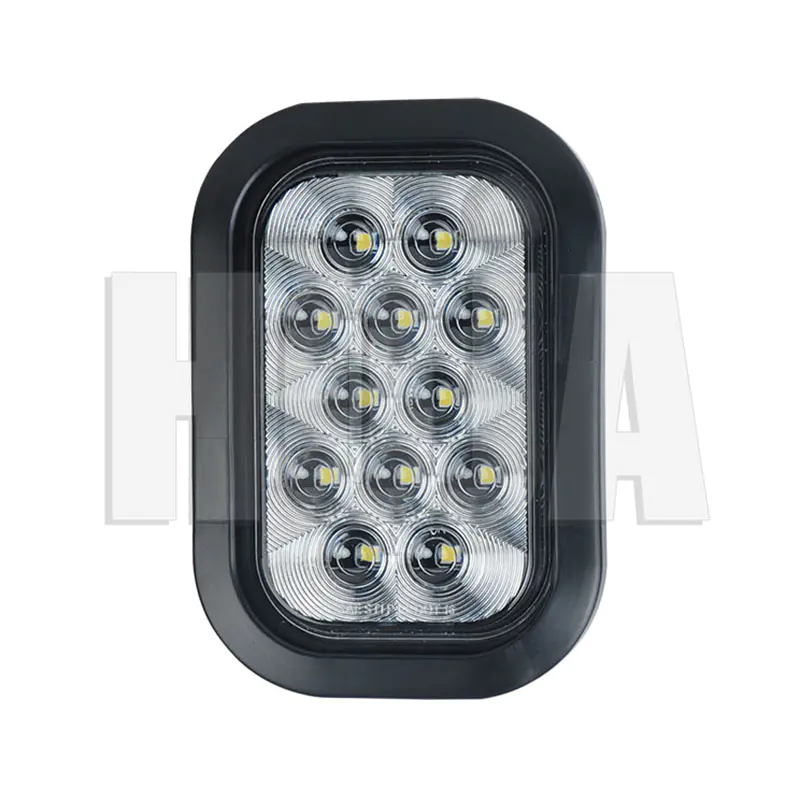

107412C	Grommet Kit	12V	White	12	0.16 A
107412AM	Grommet Kit, Multi-volt	10～30 V	Amber	12	0.16 A
107412RM	Grommet Kit, Multi-volt	10～30 V	Red	12	0.02/0.18 A
107412CM	Grommet Kit, Multi-volt	10～30 V	White	12	0.16 A
107415A	LLV Lamp Grommet Kit	12V	Amber	15	0.20 A
107415A-F	Front Park Built-in Flash LLV Lamp Kit	12V	Amber	15
107415R	LLV Lamp Grommet Kit	12V	Red	15	0.02/0.25 A
107415C	LLV Lamp Grommet Kit	12V	White	15	0.20 A
107415AM	LLV Lamp Grommet Kit Multi-volt	10～30V	Amber	15	0.20A
107415AM-F	Front Park Built-in Flash Lamp Kit Multi-volt	10～30 V	Amber	15
107415RM	LLV Lamp Grommet Kit Multi-volt	10～30 V	Red	15	0.02/0.25 A
107415CM	LLV Lamp Grommet Kit Multi-volt	10～30 V	White	15	0.20A
107400G	Grommet only for Rectangular Tail Light
906403P	Right Angle 3 Prong Plug for 6" Oval Light
