.jpg "3\" Surface Mount LED Handy Light")
• 3 LEDs of SMD type, super bright and long life span up to 50,000 hours
• Features engineered lens optics, functions as clearance light, side marker or identification light, ideal for any application on trailer and universal
• New design of Non-Directional version(112901 series) for easy installation in any direction

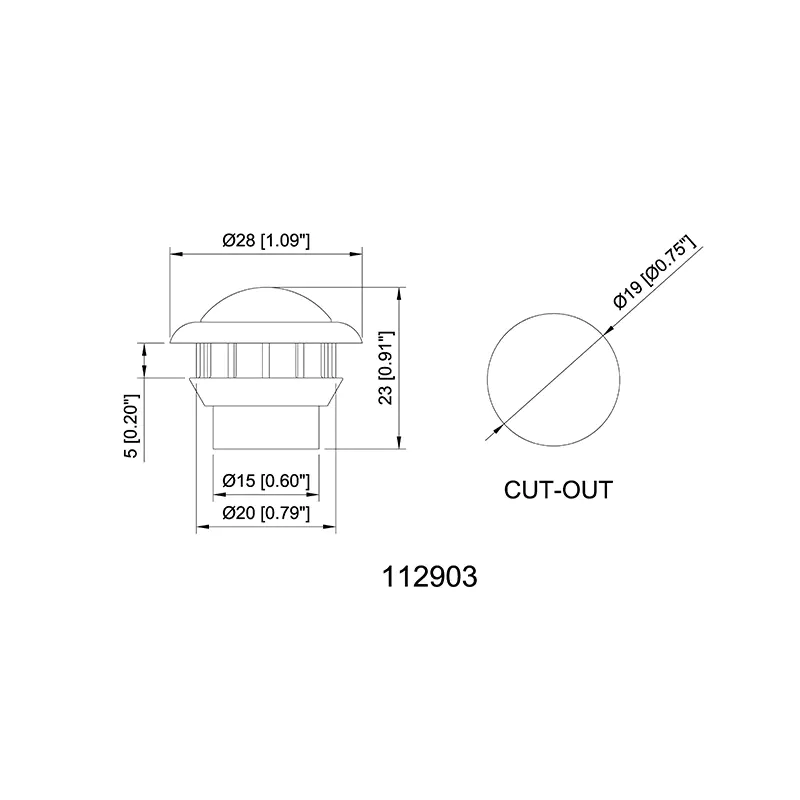

• Compact size, easy for installation by drilling a 3/4" hole and pushing in
• Two-wire design includes separate lead and ground wires with or without .180" bullet connectors
• PC lens, ABS housing and LED circuitry completely sealed by epoxy to ensure a permanent and water proof seal
• Meets DOT FMVSS 108/SAE requirements, P2 and PC rated
• Rated for 12V, tested to 13.8V
• Also available in multi-voltage 10~30V operating range, or 24V by special order
|
Part No. |
Description |
Input Voltage |
Lighting Color |
LED Count |
Current Draw (mA) at 13.8V |
|

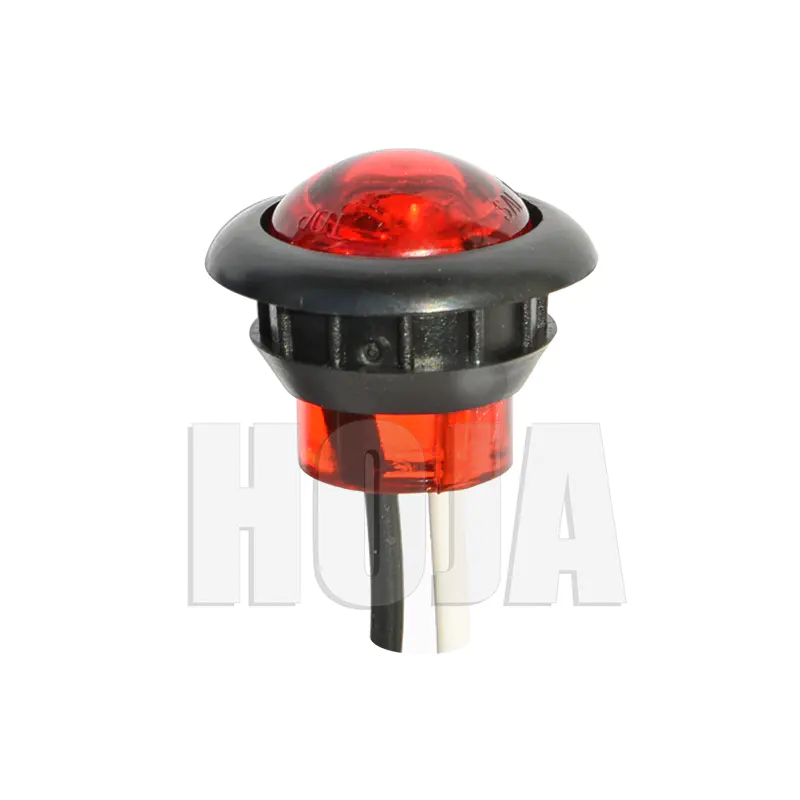

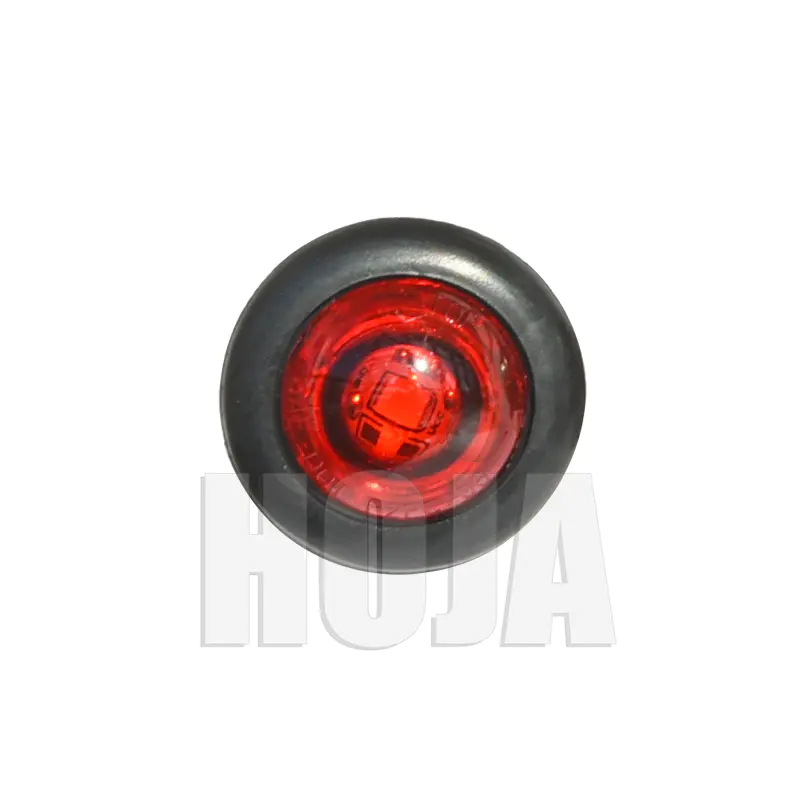

112901R |
Non-directional Red Light w/Bullet Ends |
12V |
Red |
1 |
120 mA |
|
112911R |
Non-directional Red Light Bare Wire Ends |
12V |
Red |
1 |
120 mA |
|

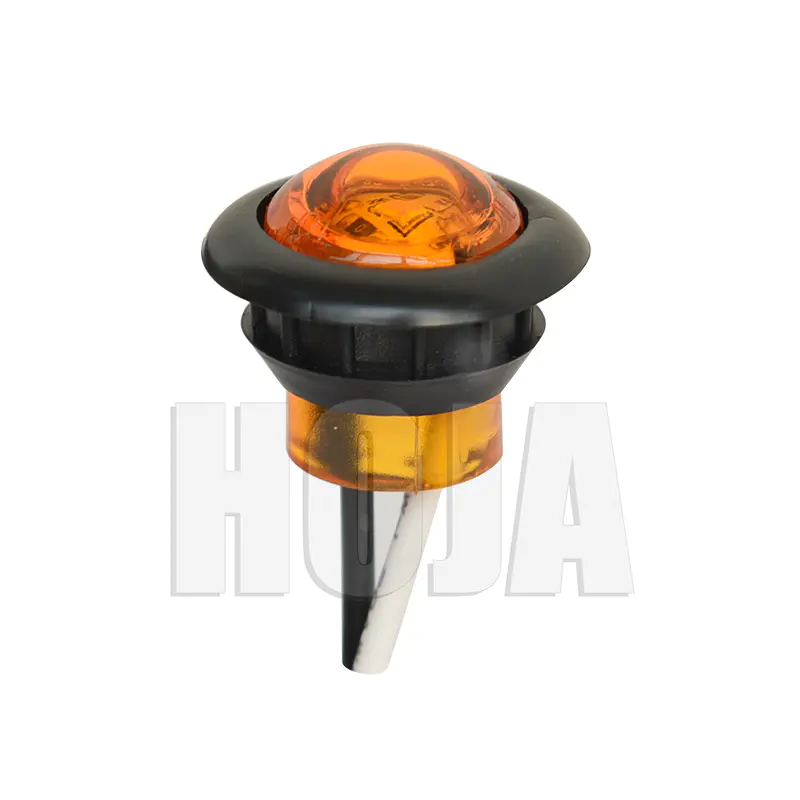

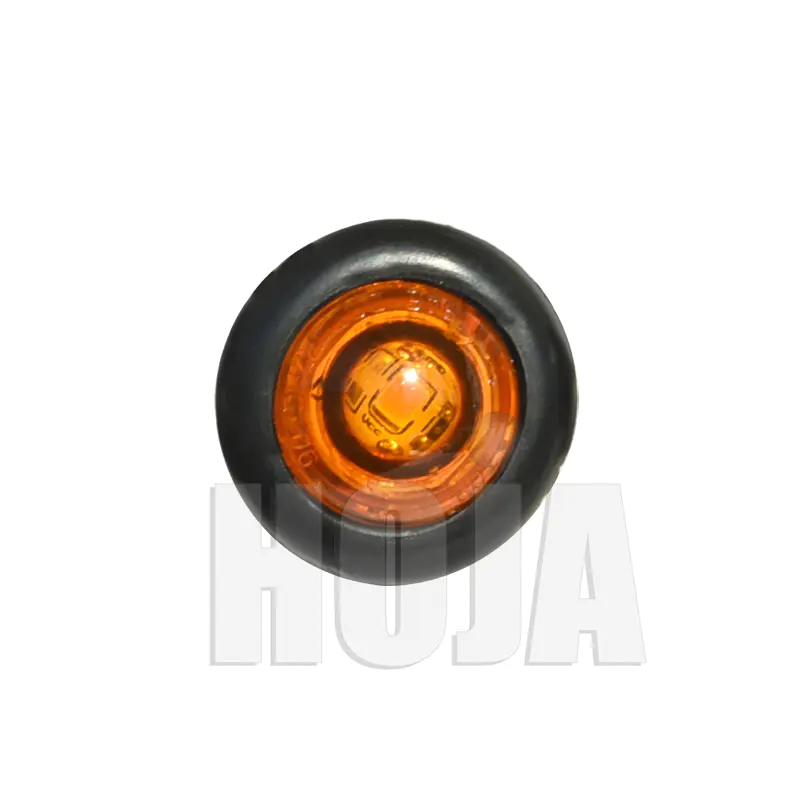

112901A |
Non-directional Amber Light w/Bullet Ends |
12V |
Amber |
1 |
120 mA |
|
112911A |
Non-directional Amber Light Bare Wire Ends |
12V |
Amber |
1 |
120 mA |
|

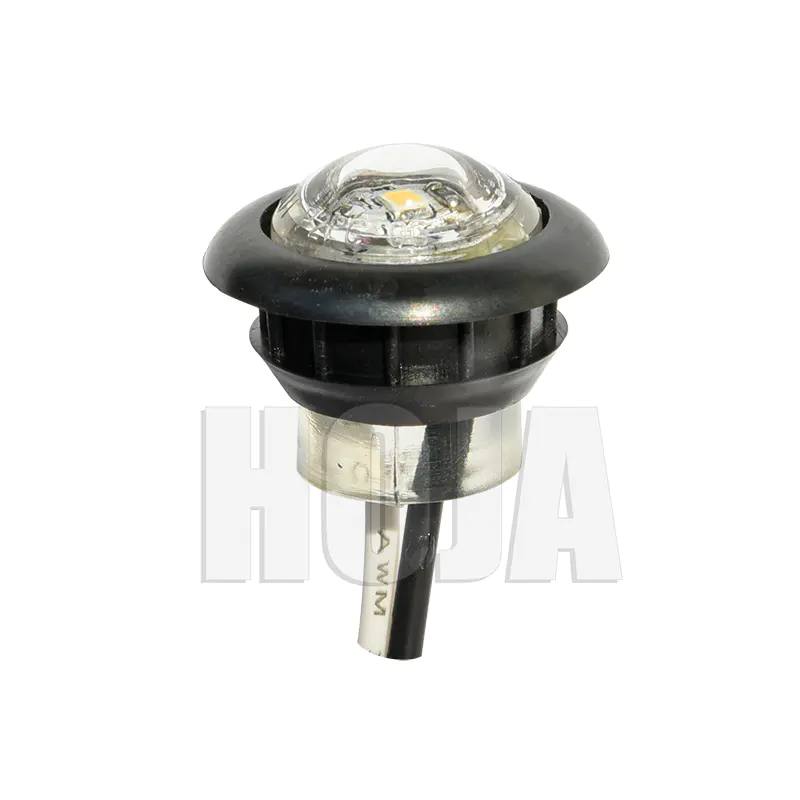

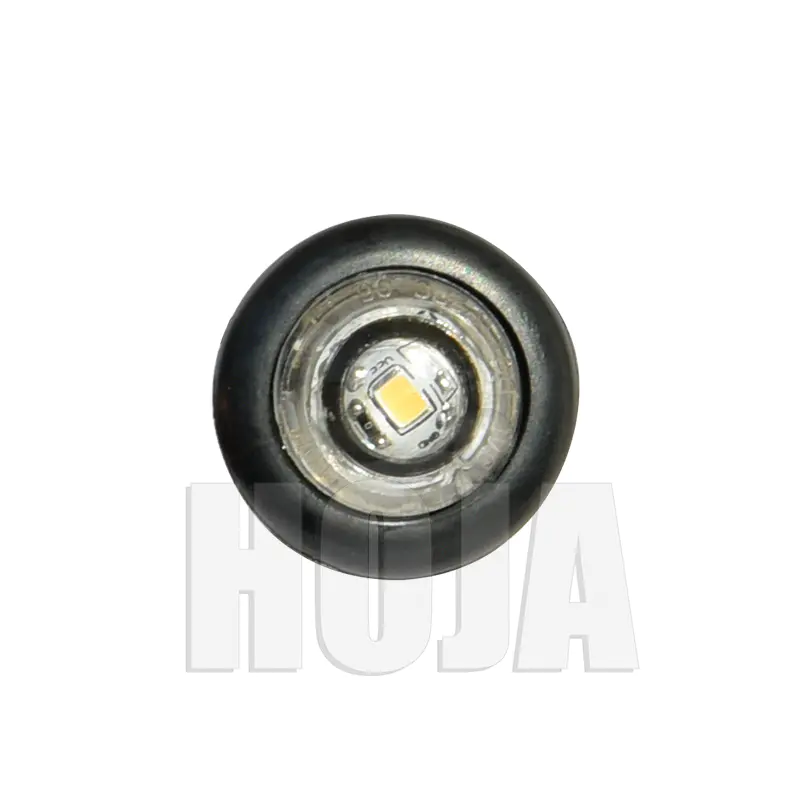

112901C |
Non-directional White Light w/Bullet Ends |
12V |
C. White |
1 |
120 mA |
|
112911C |
Non-directional White Light Bare Wire Ends |
12V |
C. White |
1 |
120 mA |
|

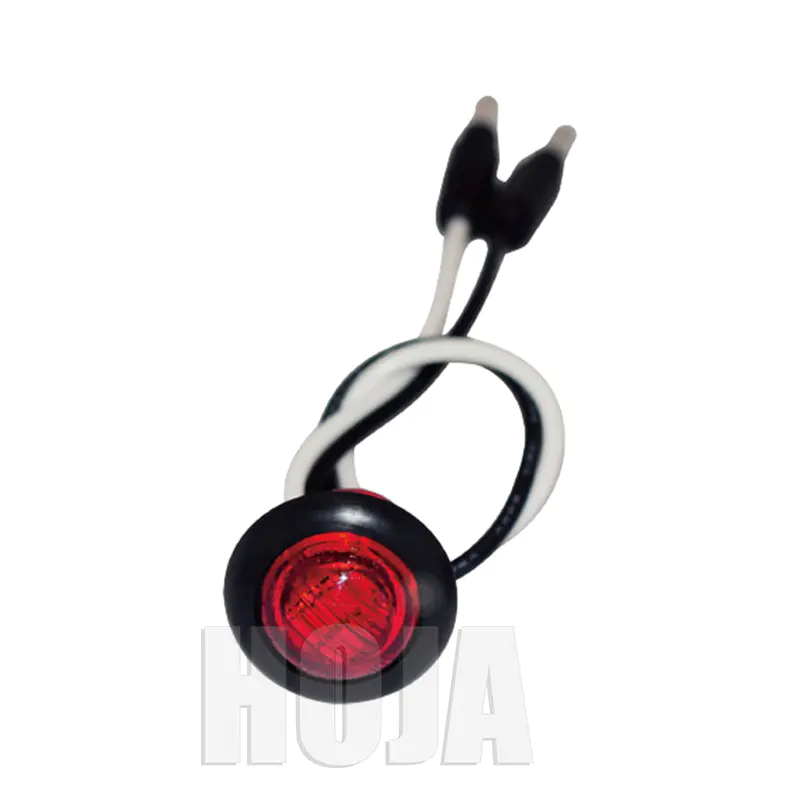

112903R |
Red Light Kit w/ Bullet Ends |
12V |
Red |
3 |
20 mA |
|
112903A |
Amber Light Kit w/ Bullet Ends |
12V |
Amber |
3 |
20 mA |
|

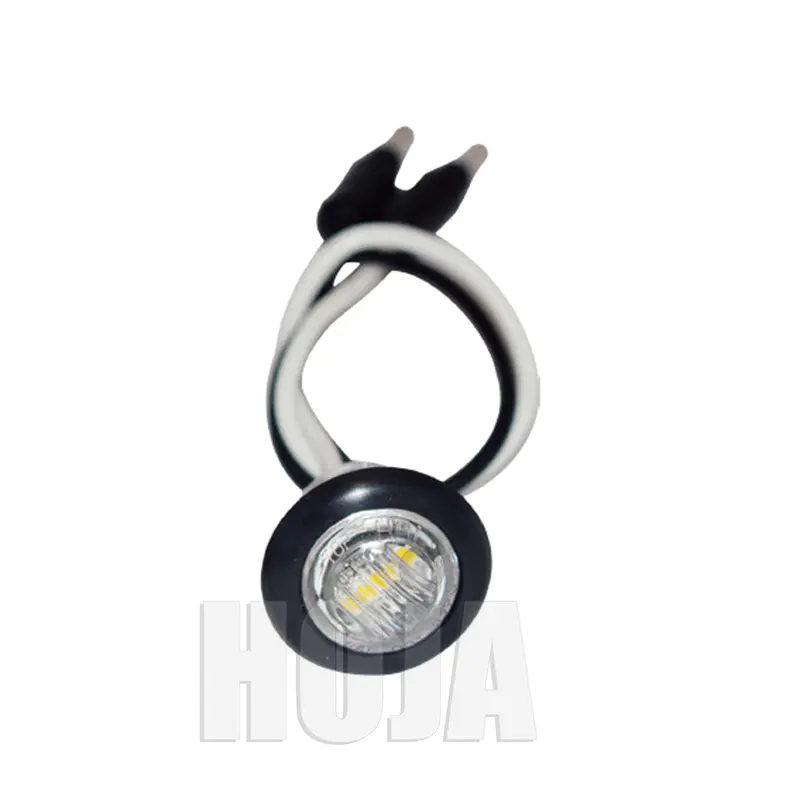

112903C |
Clear Light Kit w/ Bullet Ends |
12V |
C. White |
3 |
20 mA |
|
112903CB |
Clear Lens/Blue Light with Bullet Ends |
12V |
Blue |
3 |
20 mA |
|
112923R |
Red Light Kit w/ Bullet Ends & SS Ring |
12V |
Red |
3 |
20 mA |
|

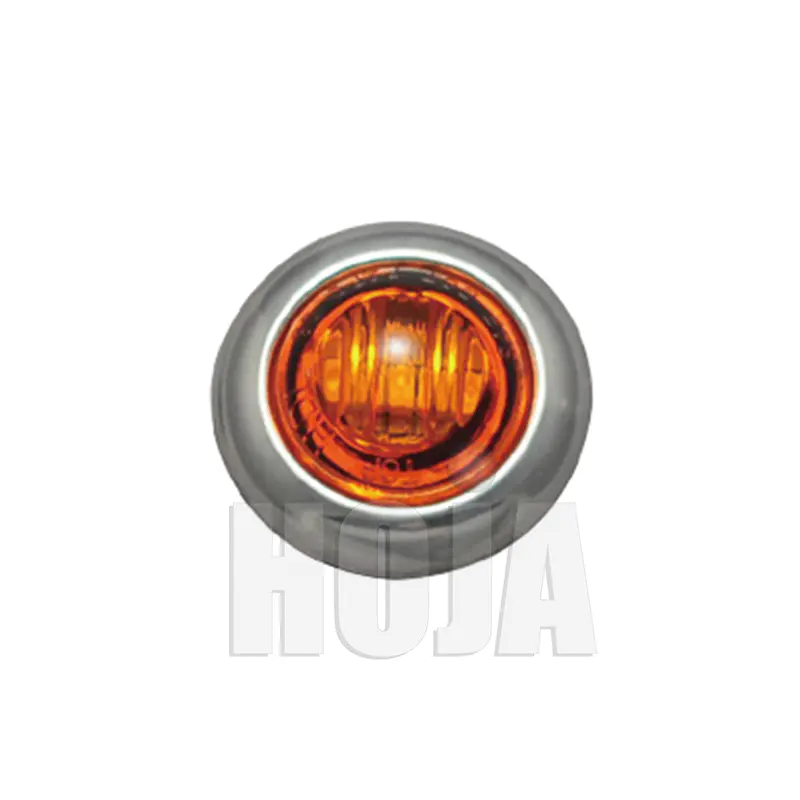

112923A |
Amber Light Kit w/ Bullet Ends & SS Ring |
12V |
Amber |
3 |
20 mA |
|
112923C |
Clear Light Kit w/ Bullet Ends & SS Ring |
12V |
C. White |
3 |
20 mA |
|
112923CB |
Clear Lens/Blue Light w/ Bullet Ends & SS Ring |
12V |
Blue |
3 |
20 mA |
|
112953R |
Red Light Kit w/ Bare Wire Ends |
12V |
Red |
3 |
20 mA |
|
112953A |
Amber Light Kit w/ Bare Wire Ends |
12V |
Amber |
3 |
20 mA |
|
112953C |
Clear Light Kit w/ Bare Wire Ends |
12V |
C. White |
3 |
20 mA |
|
112953CB |
Clear Lens/Blue Light w/ Bare Wire Ends |
12V |
Blue |
3 |
20 mA |
|
112903RM |
Red Light w/ Bullet Ends, Multi-voltage |
12～24V |
Red |
3 |
20 mA |
|
112903AM |
Amber Light w/ Bullet Ends, Multi-voltage |
12～24V |
Amber |
3 |
20 mA |
|
112903CM |
Clear Light w/ Bullet Ends, Multi-voltage |
12～24V |
C. White |
3 |
20 mA |
|

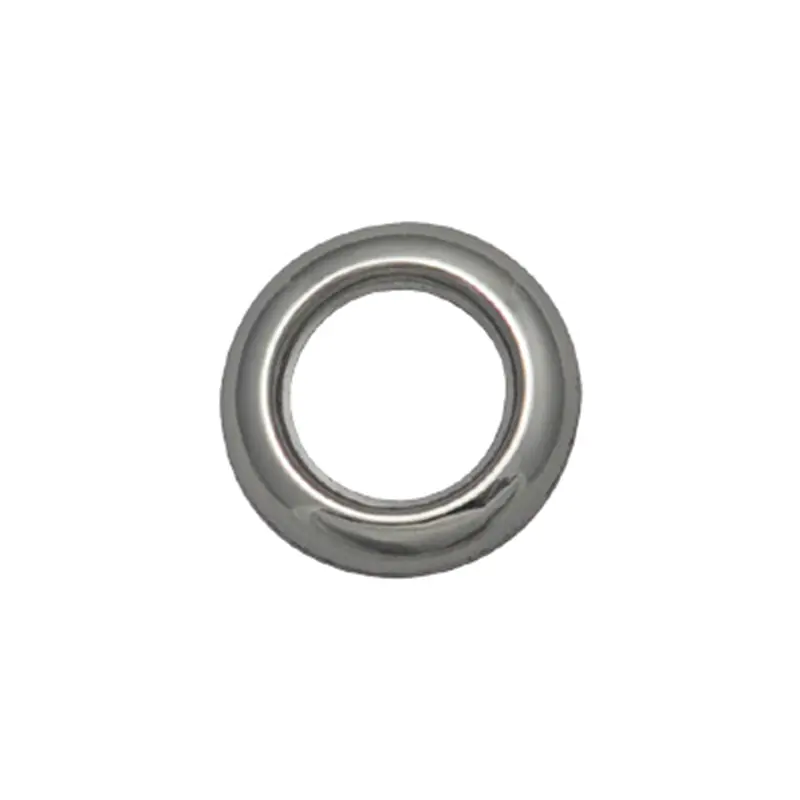

112900S |
Stainless Steel Ring Highly Polished |
||||
