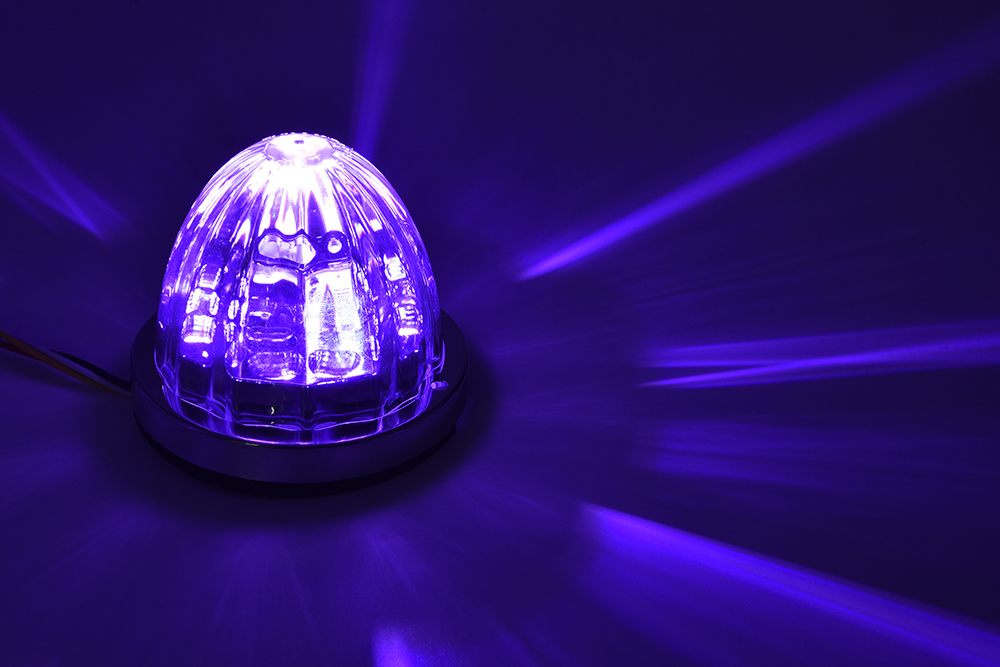

LED Watermelon Light, Clearance Marker & Auxiliary

Brand Name:	HOJA or Privately Labelled
Input Voltage:	12V, 24V, 10~30V
Functions:	Marker, Clearance
Mounting Type:	Surface Mount
Standards:	FMVSS 108/SAE/DOT
Lens Marking:	P2PC
IP Rating:	IP65
Applications:	Truck, Trailer, RV, Speciality Vehicles

E-mail : info@hoja.com.cn

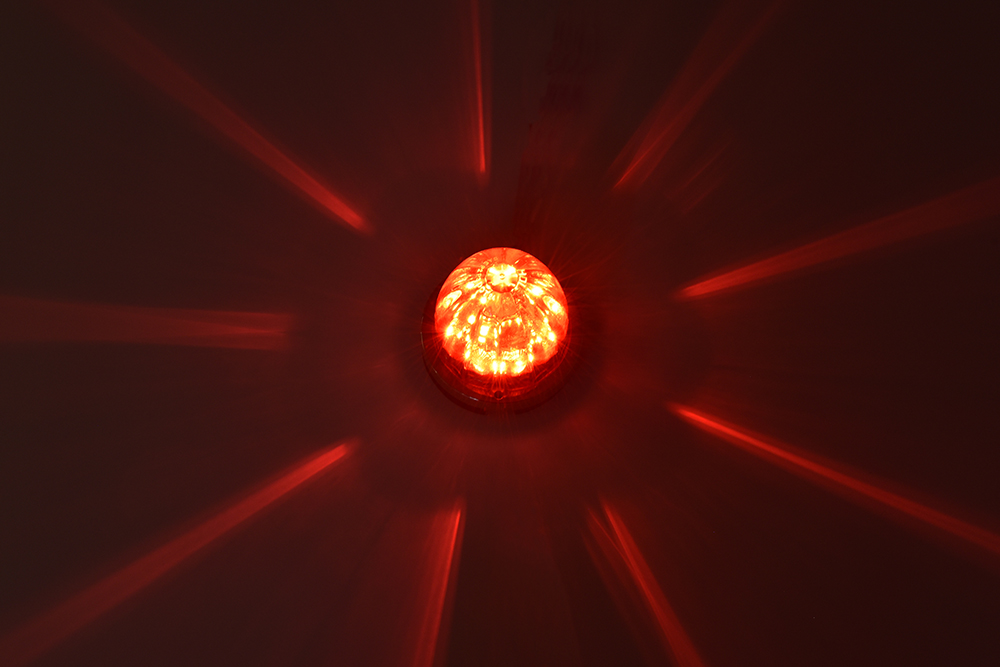

Features engineered lens optics with 1 Center Diode, 12 Side Diodes, and 6 Tower Diodes spreading out Star-burst beams; functions as clearance, side marker or decorative auxiliary light with optional Hi/Low modes, ideal for trucks and trailers

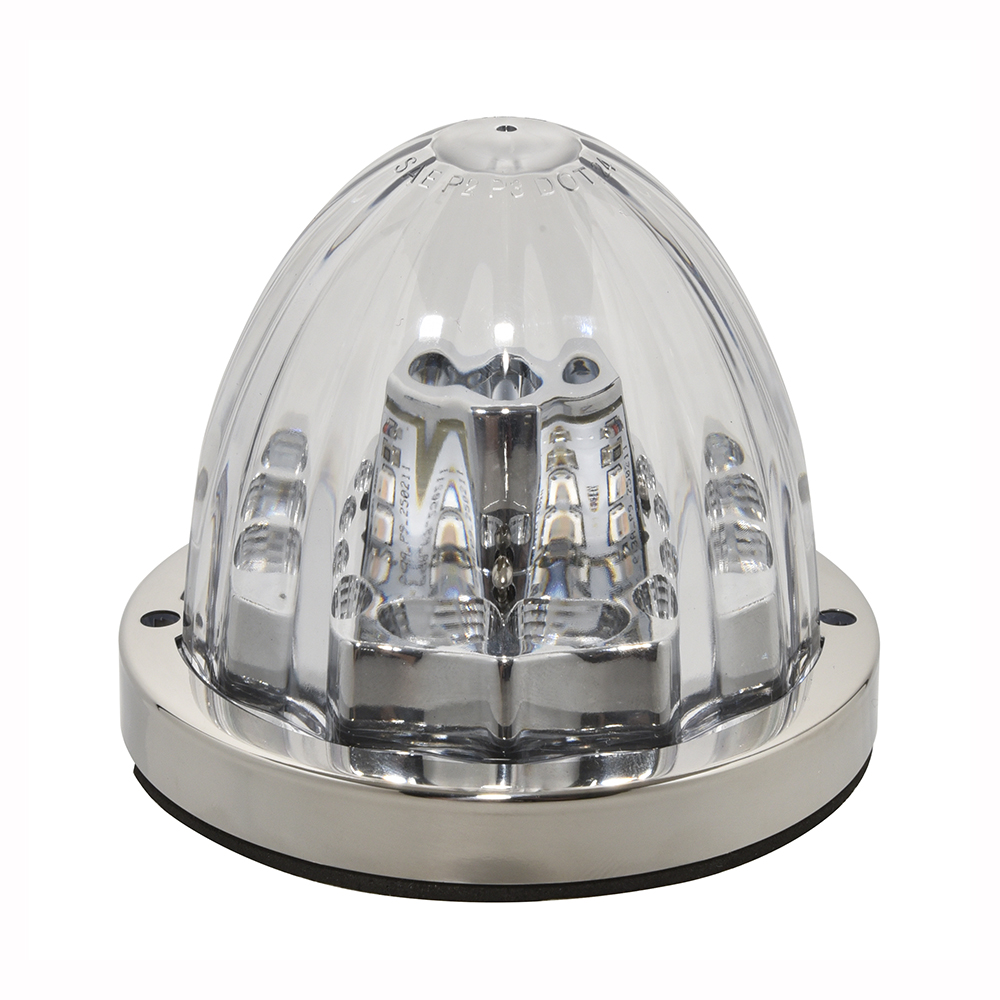

PC (polycarbonate) Lens and Housing, assembled with highly polished 304 stainless steel Trim Ring and Foam Gasket

LED and electronic circuitry completely sealed by epoxy to ensure a permanent and water proof seal, IP67 rated

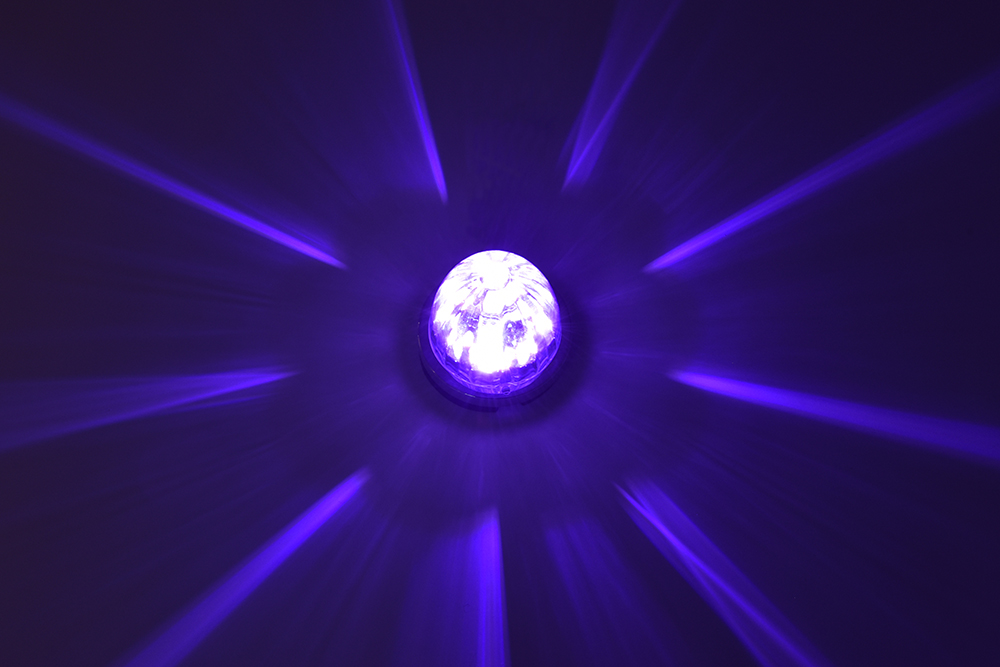

Available in single colors & optional dual color combinations, such as: Red lens / Red LED or Clear lens / Red+Purple LEDs

3-Wire or 4-Wire versions with .180 (4.5mm) bullet ends

Meets DOT FMVSS 108/SAE requirements running on Low mode, P2 and PC rated

Rated for 12V, tested to 13.8V, also available in 10~30V operating range , or 24V by special order

Part No.	Description	Input Volt.	Lighting Color	LED Type & LED Count	Current Draw (mA) at 13.8V

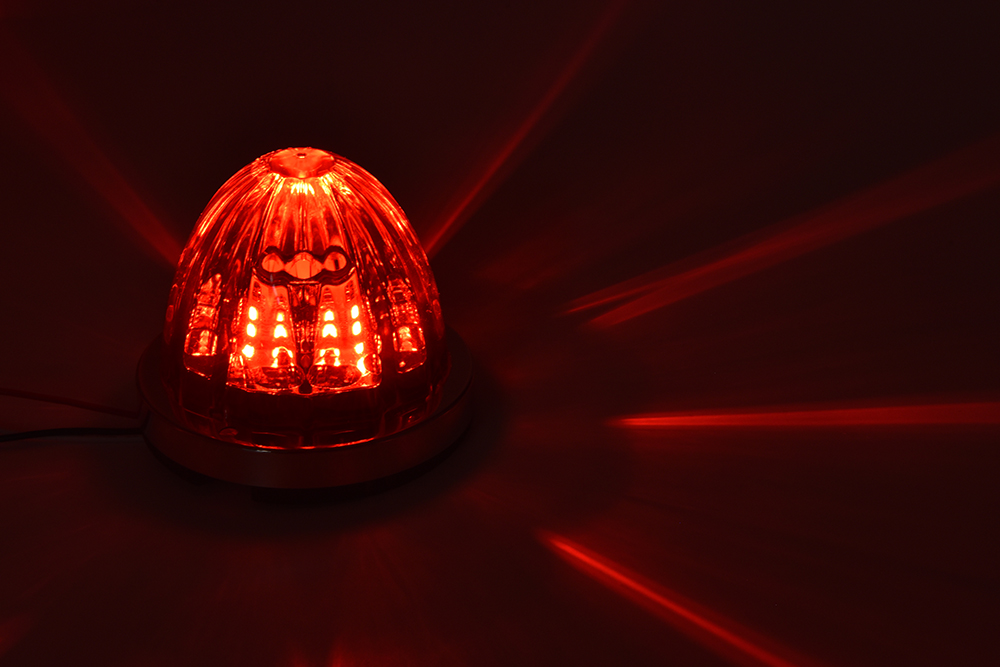

232019R	Red lens, Red LED	12 V	Red	13xP4 + 6xSMD3030	Hi: 0.32 A / Low: 0.05 A
232019CR	Clear lens, Red LED	12 V	Red	13xP4 + 6xSMD3030	Hi: 0.32 A / Low: 0.05A

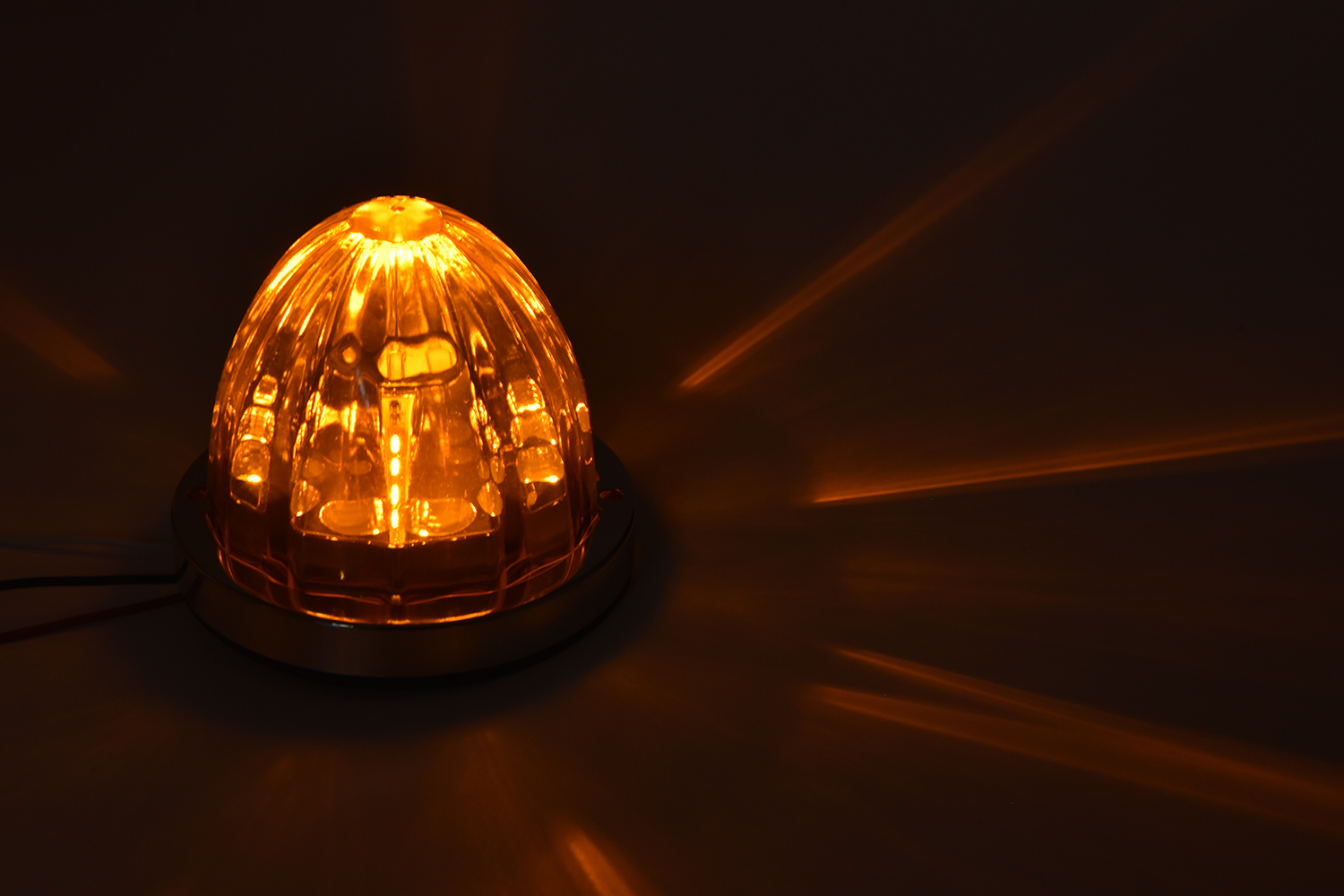

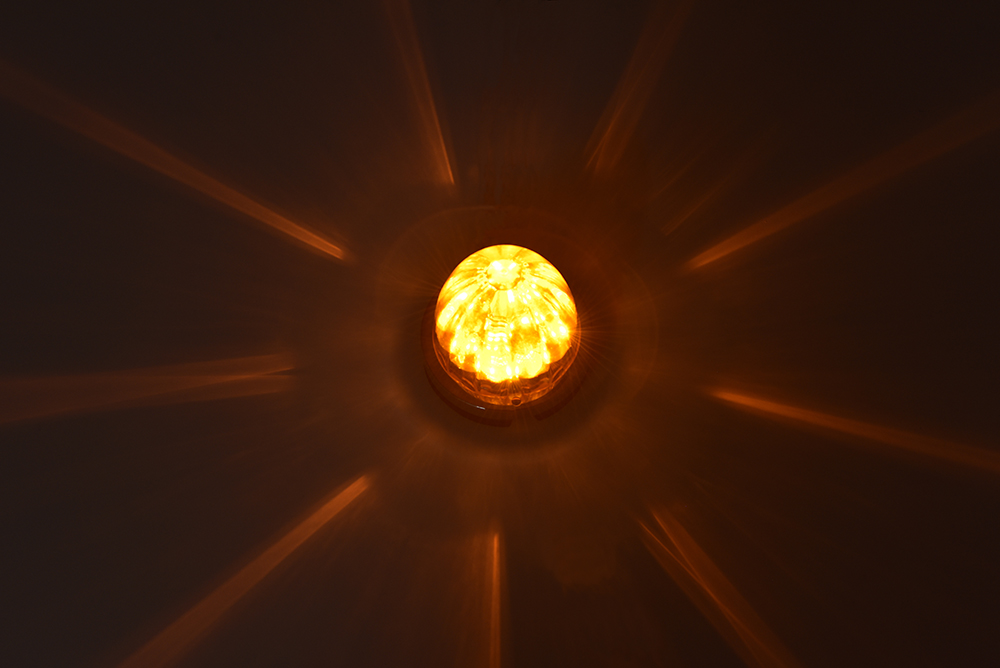

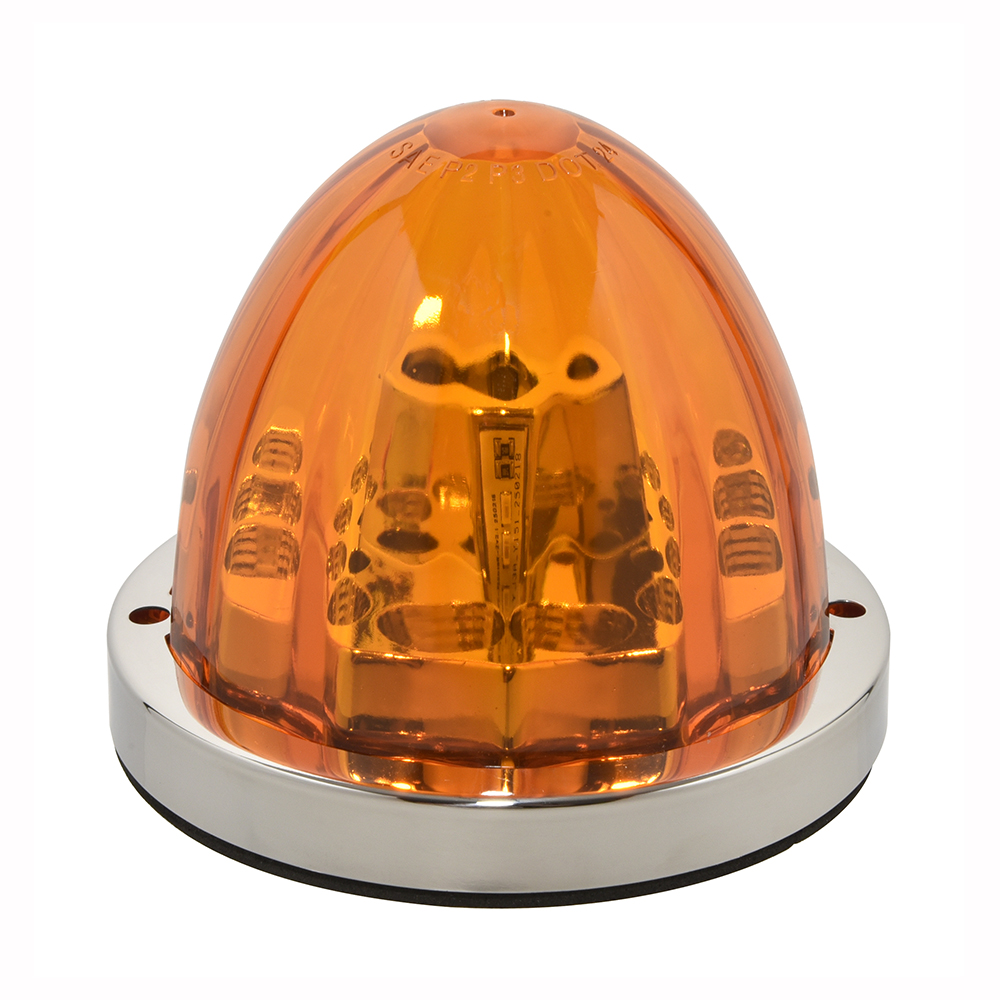

232019A	Amber lens, Amber LED	12 V	Amber	13xP4 + 6xSMD3030	Hi: 0.32 A / Low: 0.06 A
232019CA	Clear lens, Amber LED	12 V	Amber	13xP4 + 6xSMD3030	Hi: 0.32 A / Low: 0.06 A
232019C	Clear lens, White LED	12 V	White	13xP4 + 6xSMD3030	Hi: 0.30 A / Low: 0.07 A
232019CRA	Clear lens, Red & Amber LED	12 V	Red / Amber	13xP4 + 6xSMD3030	Hi: 0.32 A / Lo: 0.03A Aux: 0.33 A
232019CRP	Clear lens, Red & Purple LED	12 V	Red / Purple	13xP4 + 6xSMD3030	Hi: 0.32 A / Lo: 0.03A Aux: 0.33 A
232019CRG	Clear lens, Red & Green LED	12 V	Red / Green	13xP4 + 6xSMD3030	Hi: 0.32 A / Lo: 0.03A Aux: 0.33A
