LED Marker & Clearance Lights

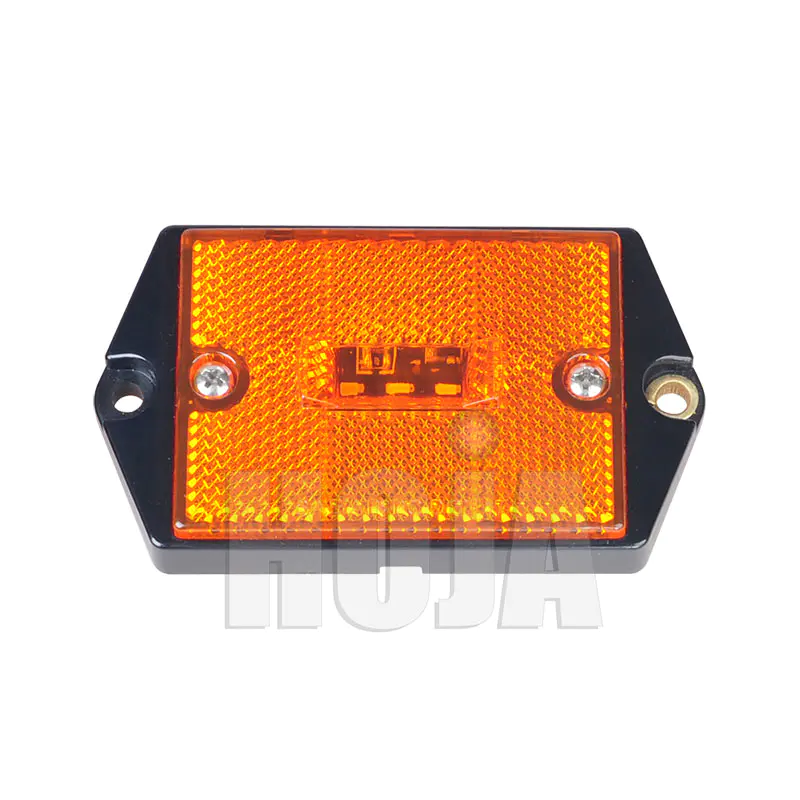

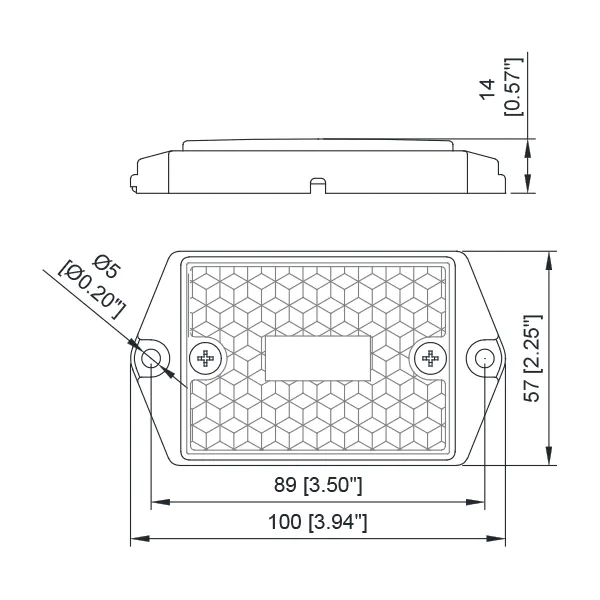

Rectangular Surface Mount LED Marker Clearance Light with Reflex

Rectangular Surface Mount LED Marker Clearance Light with Reflex

Brand Name: HOJA or Privately Labelled
Input Voltage: 12V, 10~30V
Functions: Marker, Clearance
Mounting Type: Surface Mount
Standards: FMVSS 108/SAE
Lens Marking: AP2PC
IP Rating: IP65
Applications: Truck, Trailer, RV, Speciality Vehicles

E-mail : info@hoja.com.cn

Product Detail

• (3) SMD LEDs of super bright and long life span up to 50,000 hours

• Lens screwed on, replaceable. Lens with built-in reflex reflector

• Surface mount black plastic base

• Functions as side marker, clearance or identification light

• Epoxy potted LED board to ensure a permanent and weather proof seal

• Self grounding and a separate 6" (150mm) lead wire (optional .180 male bullet connector available)

• In compliance with DOT FMVSS 108/SAE, P2PC rated; lens marking: AP2PC

• Rated for 12V, designed for 13.8V

• Also available in multi-voltage 10~30V operating range, or 24V by special order only



Part No.

Description

Input Voltage

Lighting Color

LED Count

Current Draw(A) at 13.8V

114803A

Light Kit Amber

12V

Amber

3

0.04 A

114803R

Light Kit Red

12V

Red

3

0.04 A

114803AM

Light Kit Amber, Multi-volt

12~24 V

Amber

3

0.04 A

114803RM

Light Kit Red, Multi-volt

12~24 V

Red

3

0.04 A
