• Optional 10 SMDs economical type or 16 of 5mm LEDs regular version
• Functions as clearance, side marker or identification light

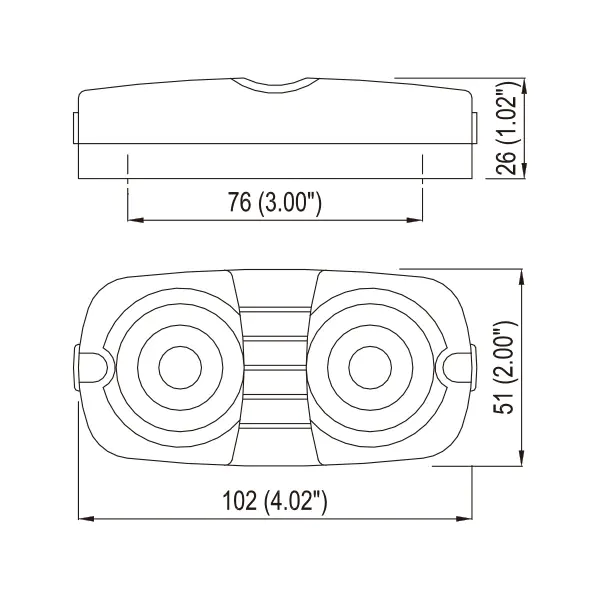

• Snap-on PC lens, replaceable; Surface mount base features concealed mounting screw holes with industry standard 3" centers
• 114210 series come with a self-grounding terminal on the mounting hole, while 114216 series with two-wire design including separate lead and ground wires
• LED circuit board coated with conformal coating for excellent moisture and environmental protection
• Meets DOT FMVSS 108/SAE requirements
• Rated for 12V, tested to 13.8V
• Also available in dual voltage 12~24V operating range or 24V by special order
Part No. |
Description |
Input Voltage |
Lighting Color |
LED Type |
LED Count |
Current Draw (mA) at 13.8V |
114210R |
Economical Light Kit |
12V |
Red |
SMD |
10 |
30 mA |
114210A |
Economical Light Kit |
12V |
Amber |
SMD |
10 |
30 mA |
114210RM |
Eco Kit, Dual Voltage |
12~24 V |
Red |
SMD |
10 |
30/60 mA |
114210AM |
Eco Kit, Dual Voltage |
12~24 V |
Amber |
SMD |
10 |
30/60 mA |
114216R |
Regular Kit |
12V |
Red |
5mm |
16 |
75 mA |
114216A |
Regular Kit |
12V |
Amber |
5mm |
16 |
75 mA |
114216RM |
Regular Kit, Dual Voltage |
12~24 V |
Red |
5mm |
16 |
36/75 mA |
114216AM |
Regular Kit, Dual Voltage |
12~24 V |
Amber |
5mm |
16 |
36/75 mA |
