LED Marker & Clearance Lights

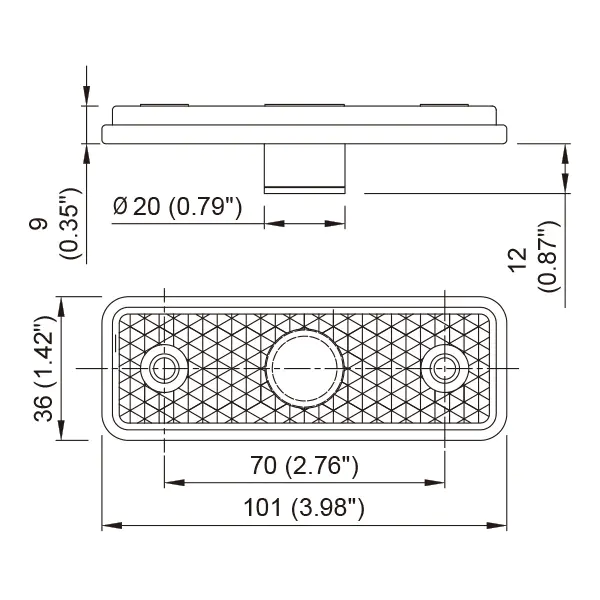

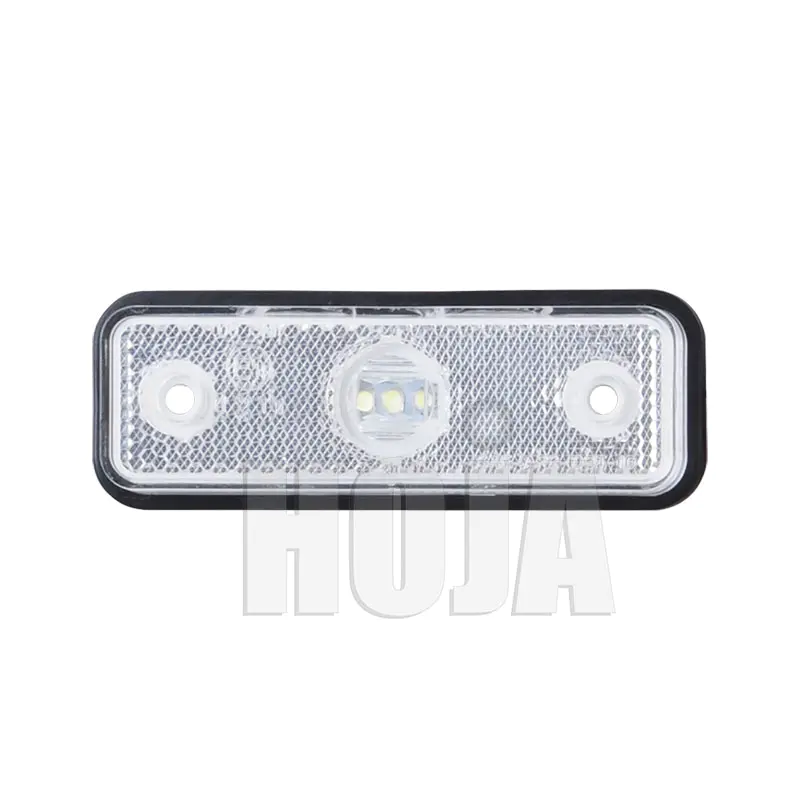

4"×1.2" Oblong LED Marker and Clearance Reflex

4"×1.2" Oblong LED Marker and Clearance Reflex

Brand Name: HOJA or Privately Labelled
Input Voltage: 12V, 10~30V
Functions: Marker, Clearance
Mounting Type: Surface Mount
Standards: FMVSS 108/SAE, ECE
Lens Marking: AP2
IP Rating: IP65
Applications: Truck, Trailer, RV, Speciality Vehicles

E-mail : info@hoja.com.cn

Product Detail

• 3 LEDs of super bright SMD type

• Features reflex lens plus engineered lens optics in center above LED; functions as side marker or clearance light

• Surface mount design, two-wire design contains separate lead and ground wires

• PC lens and housing ultrasonically welded in a single unit, LED circuit board completely sealed by epoxy to ensure a permanent and water proof seal

• Rubber gasket for mounting to all surfaces included

• Meets DOT FMVSS 108/SAE requirements, amber model also meets ECE requirements

• Rated for 12V, tested to 13.8V

• Also available in multi-voltage 10~30V operating range, or 24V by special order



Part No.

Description

Input Voltage

Lighting Color

LED Count

Current Draw (mA) at 13.8V

112403R

Lamp Kit Red with Gasket

12V

Red

3

20 mA

112403A

Lamp Kit Amber with Gasket

12V

Amber

3

20 mA

112403C

Lamp Kit Clear with Gasket

12V

Clear

3

20 mA

112403RM

Lamp Kit Red, Multi-voltage

12~24 V

Red

3

20 mA

112403AM

Lamp Kit Amber, Multi-voltage

12~24 V

Amber

3

20 mA

112403CM

Lamp Kit Clear, Multi-voltage

12~24 V

Clear

3

20 mA
