• 8 LEDs of 5mm type
• Functions as clearance, side marker or identification light
• PC lens and housing ultrasonically welded in a single lamp unit to ensure a permanent and water proof seal; install easily by snapping lamp unit on base mount bracket; bracket available in chrome plated and black finishes; ideal for retrofit of traditional incandescent lights of the leading brands
• Two-wire plug contains separate lead and ground wires for mounting to all surfaces; available in multiple wiring and mounting options by special order
• Meets DOT FMVSS 108/SAE requirements
• Rated for 12V, tested to 13.8V
• Also available in multi-voltage 10~30V operating range or 24V by special order
Part No. |
Description |
Input Voltage |
Lighting Color |
LED Count |
Current Draw (mA) at 13.8V |
112508RL |
Lamp only |
12V |
Red |
8 |
40 mA |
112508AL |
Lamp only |
12V |
Amber |
8 |
40 mA |

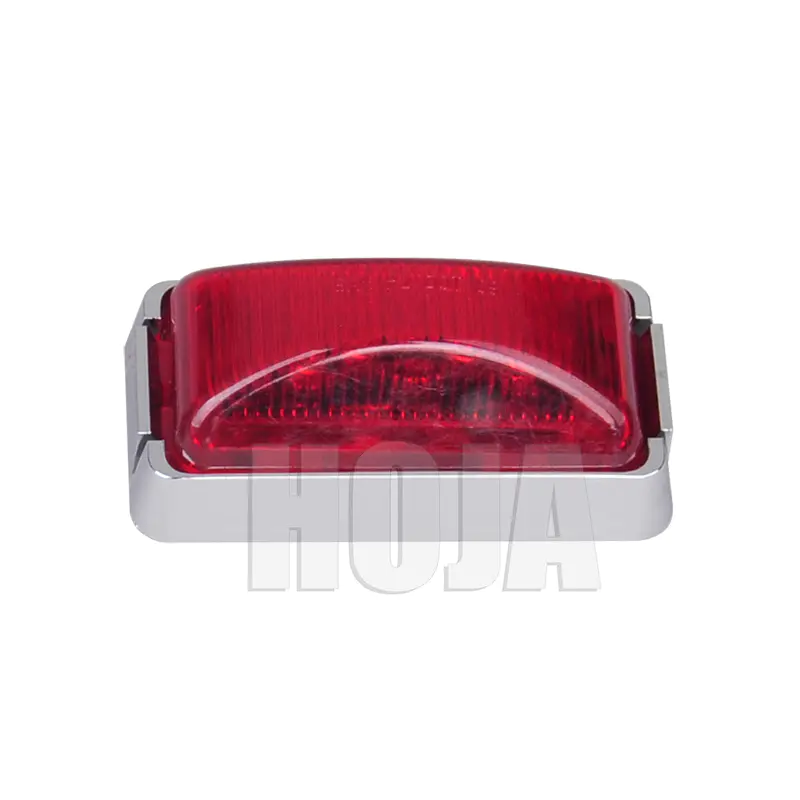

112508R |
Chrome Base Mount Kit |
12V |
Red |
8 |
40 mA |
112508A |
Chrome Base Mount Kit |
12V |
Amber |
8 |
40 mA |
112508RM |
Chrome Kit.Multi-voltage |
12~24 V |
Red |
8 |
40 mA |
112508AM |
Chrome Kit,Multi-voltage |
12~24 V |
Amber |
8 |
40 mA |
112500MB |
Spare 3"x1-1/2" Rectangular Mounting Bracket, Black Plastic |
||||
112500MC |
Spare 3"x1-1/2" Rectangular Mounting Bracket, Chromed Plastic |
