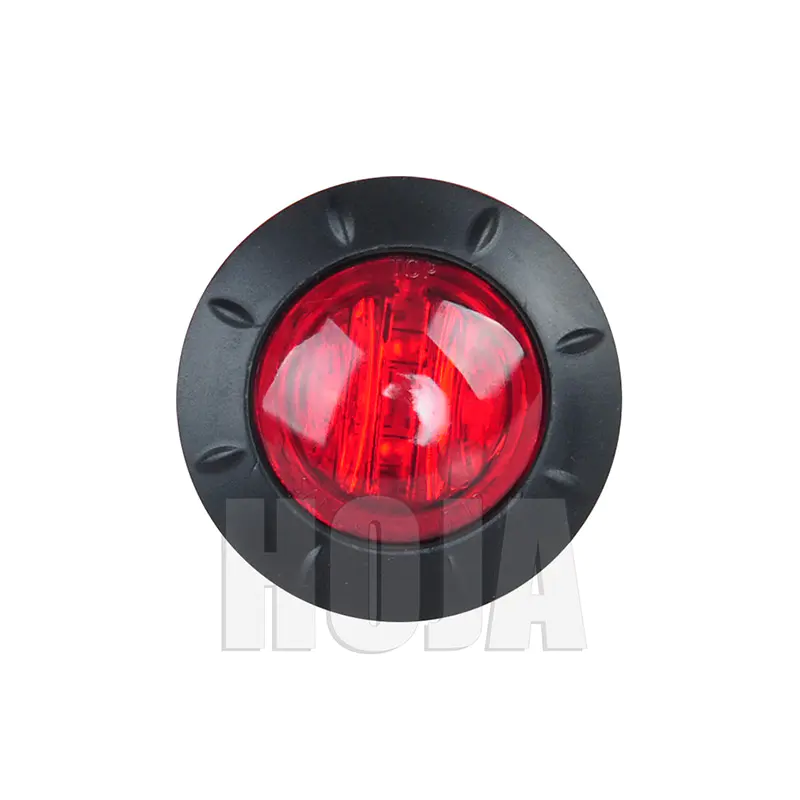

• 6 LEDs of SMD type
• Features engineered lens optics, functions as clearance light, side marker or identification light, ideal for any application on trailer and universal

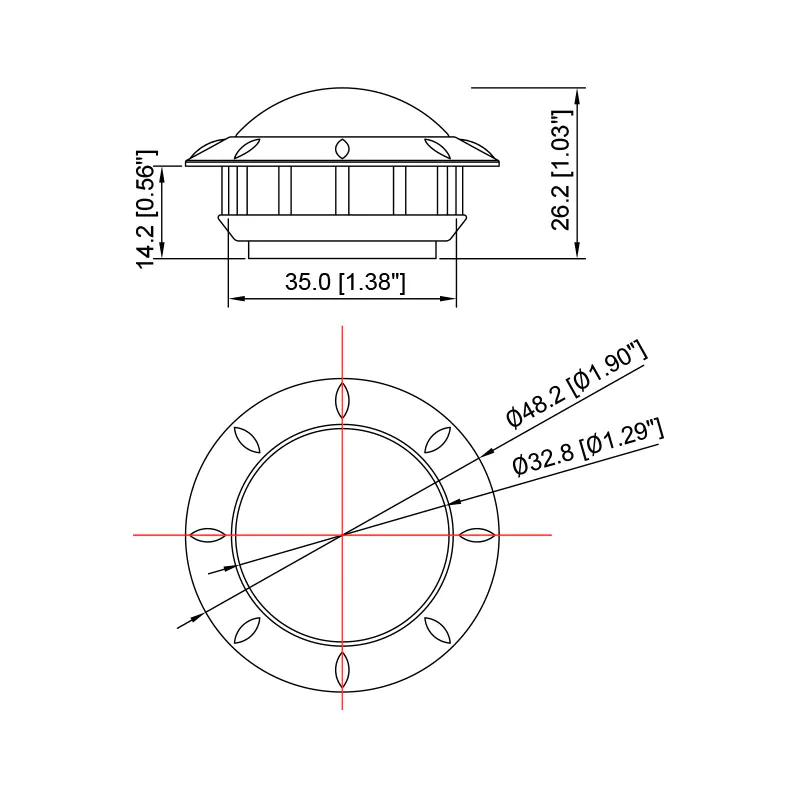

• Compact size, easy for installation by cutting out a 1-3/8" (35mm) hole and pushing in
• Two-wire design includes separate lead and ground wires with bullet terminals
• PC lens, ABS housing and LED circuitry completely sealed by epoxy to ensure a permanent and water proof seal.
• Meets PC and P2 rating of DOT FMVSS 108/SAE requirements
• Rated for 12V, tested to 13.8V
• Also available in multi-voltage 10~30V operating range or 24V by special order
Part No. |
Description |
Input Voltage |
LED Count |
Lighting Color |
Current Draw (mA) at 13.8V |
113806R |
Red Light Kit with Bullet Ends |
12V |
6 |
Red |
40 mA |
113806A |
Amber Light Kit with Bullet Ends |
12V |
6 |
Amber |
40 mA |
113806C |
Clear Light Kit with Bullet Ends |
12V |
6 |
Clear |
40 mA |
113856R |
Red Light Kit with Straight Wire |
12V |
6 |
Red |
40 mA |
113856A |
Amber Light Kit with Straight Wire |
12V |
6 |
Amber |
40 mA |
113856C |
Clear Light Kit with Straight Wire |
12V |
6 |
Clear |
40 mA |
