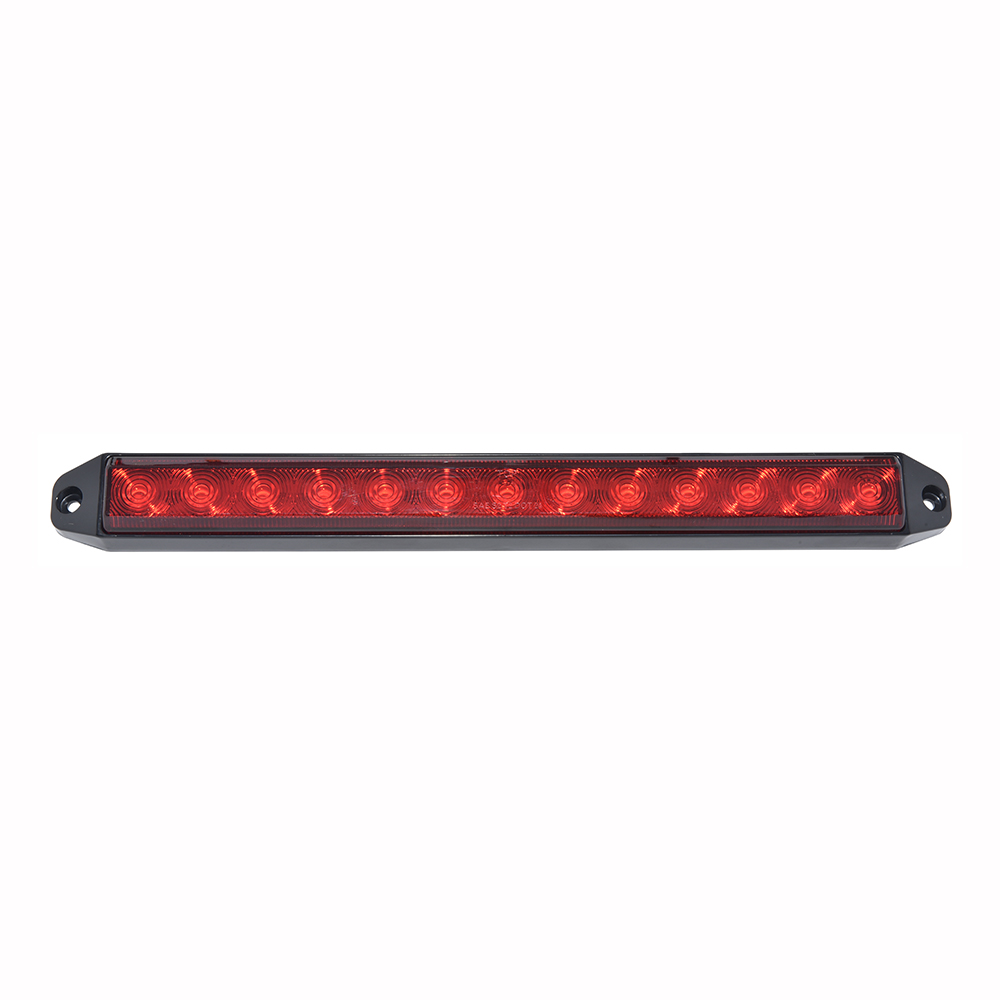

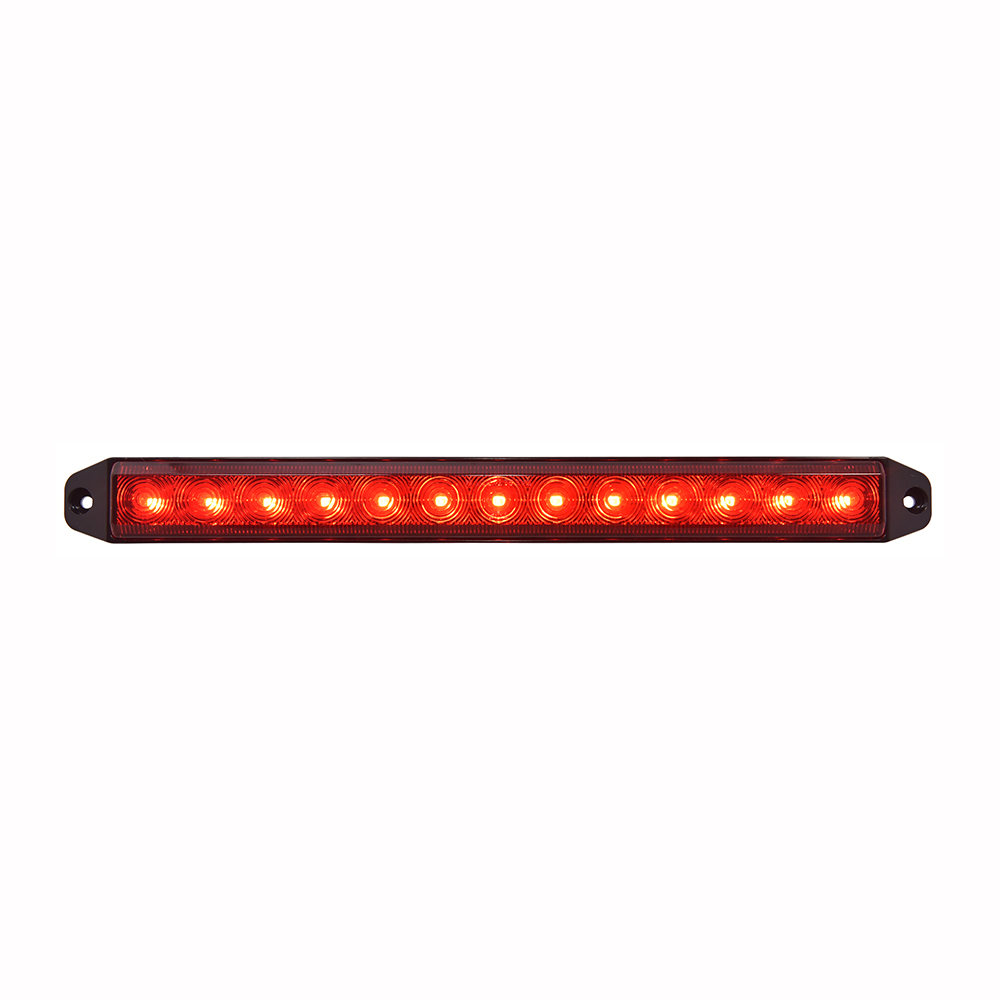

• Identification light bar incorporated with Black Base, surface mount
• Stop, Tail (Indicator) and Turn functions combined, ideal as an identification light on trailers, trucks, RVs, and speciality vehicles
• (13) SMD LEDs, super-bright and long lifespan up to 50,000 hours
• PC lens and ABS housing, lamp unit is sonic welded and epoxy potted on the back to ensure a permanent and weather proof seal, IP 67 rated
• 3 hard wires (Ground/Hi/Low) with stripped ends directly coming out of the backside
• Meets DOT FMVSS 108/SAE requirements; lens marking: S2T2
• Rated for 12V, tested to 13.8V
• Also available in multi-voltage 10~30V operating range or 24V by special order
Part No.
Description
Input Voltage
LED Count
Lens Color
Lighting Color
Current Draw
(A) at 13.8V
119013R
Red Lens Red Light
12 V
13
Red
Red
0.22A/0.02A
119013CR
Clear Lens Red Light
12 V
13
Clear
Red
0.22A/0.02A
