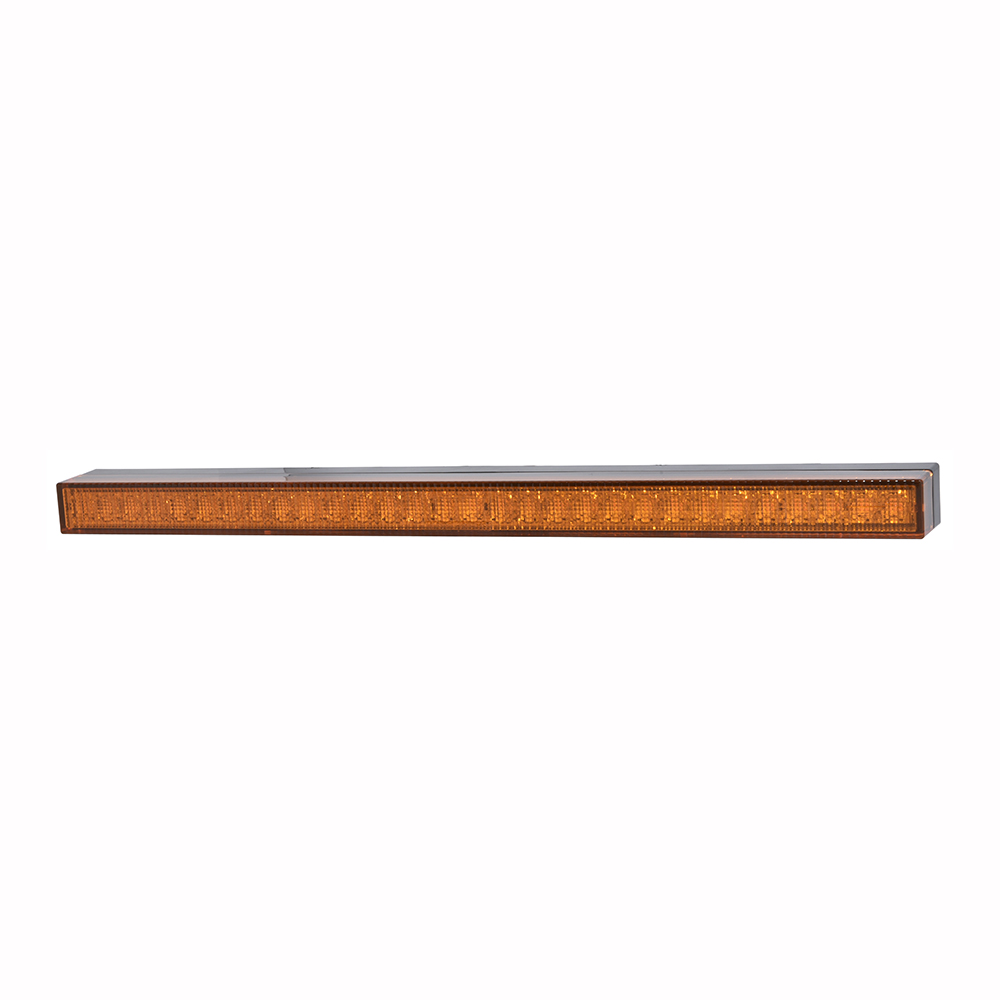

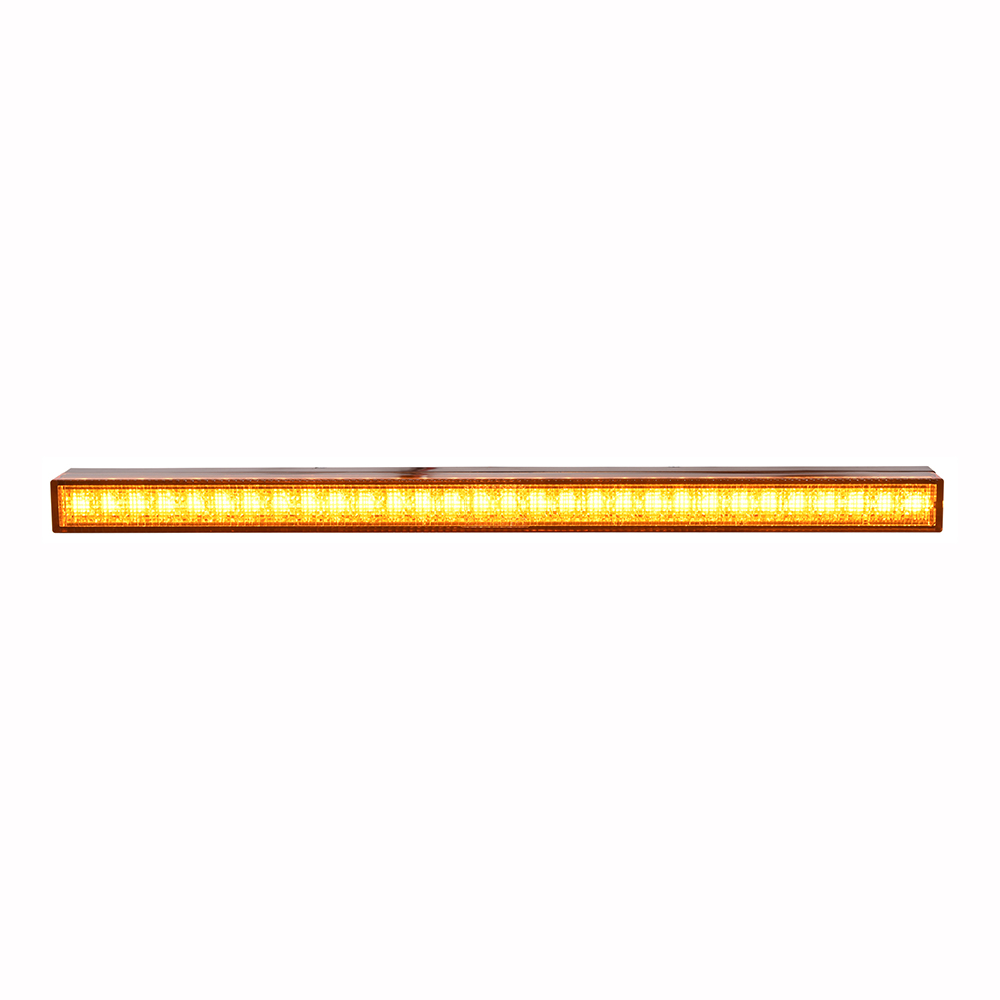

• Stud mount LED light bar incorporated with Black Base
• Functions as Front Turn and Front Position, ideal for use on trucks, trailers, RVs, and speciality vehicles
• (30) SMD LEDs, super-bright and long lifespan up to 50,000 hours
• PC lens and ABS housing, lamp unit is sonic welded and epoxy potted on the back to ensure a permanent and weather proof seal, IP 67 rated
• 3 hard wires (Ground/Front Turn/Postion) with stripped ends directly coming out of the backside
• Meets DOT FMVSS 108/SAE requirements; lens marking: I6 P
• Rated for 12V, tested to 13.8V
• Also available in multi-voltage 10~30V operating range or 24V by special order
Part No.
Description
Input Voltage
LED Count
Lens Color
Lighting Color
Current Draw
(A) at 13.8V
119530A
Amber Lens Amber Light
12 V
30
Amber
Amber
0.54A/0.04A
119530CA
Clear Lens Amber Light
12 V
30
Clear
Amber
0.54A/0.04A
