• This Recessed Mount Light is great for cabin and compartment in boat and RV,and other suitable applications
• Chrome plated or black finish bezel performs a shiny look,white ring also available
• Clear PC lens, engineered lens optics provides a uniform and comfortable lighting beam illuminated from white LED
• SMD LEDs or super flux (P4) type LEDs
• Circuit board completely sealed in epoxy to resist water, corrosion and vibration
• Lighting color available in single color Cool White, Natural White and Red
• Rated for 12V, tested to 13.8V
• Also available in optional version of multi-voltage 10~30V operating range, or 24V version by special order
Part No. |
Finish |
Input Voltage |
Lighting Color |
LED Count |
LED Type |
Current Draw (mA) at 13.8V |
Luminous Flux |
430106C |
Chrome Plated |
12V |
Cool White |
6 |
P4 |
40 mA |
30 lm |
430106CW |
Chrome Plated |
12V |
Natural White |
6 |
P4 |
40 mA |
30 lm |
430406C |
Chrome Plated |
12V |
Red |
6 |
P4 |
100 mA |
30 lm |

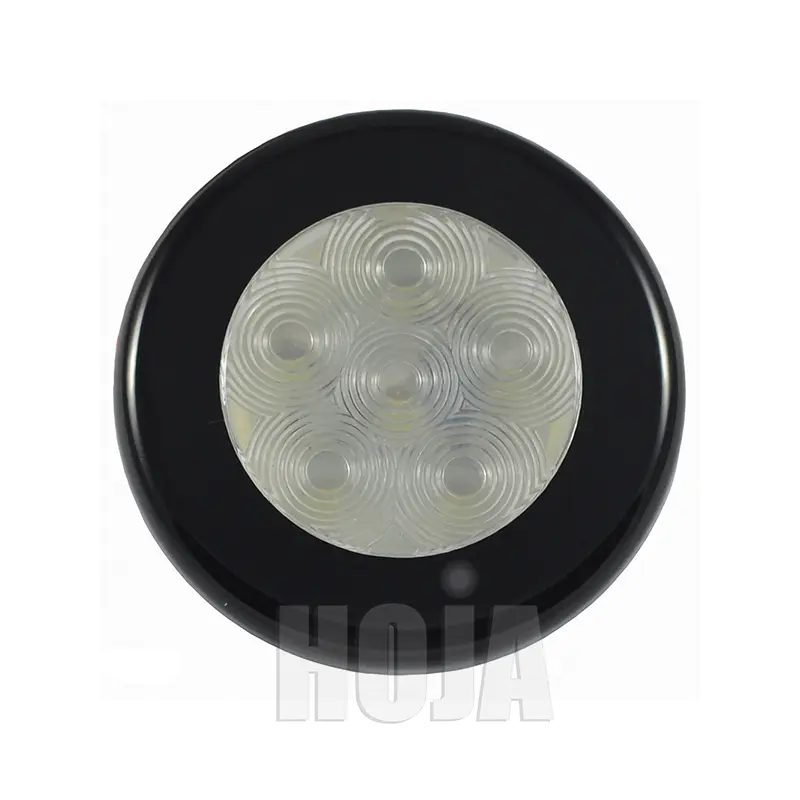

430106B |
Black Finish |
12V |
Cool White |
6 |
P4 |
40 mA |
30 lm |
430106BW |
Black Finish |
12V |
Natural White |
6 |
P4 |
40 mA |
30 Im |
430406B |
Black Finish |
12V |
Red |
6 |
P4 |
100 mA |
30 lm |
430709C |
Chromed |
12V |
Natural White |
9 |
SMD 3528 |
50 mA |
55 lm |

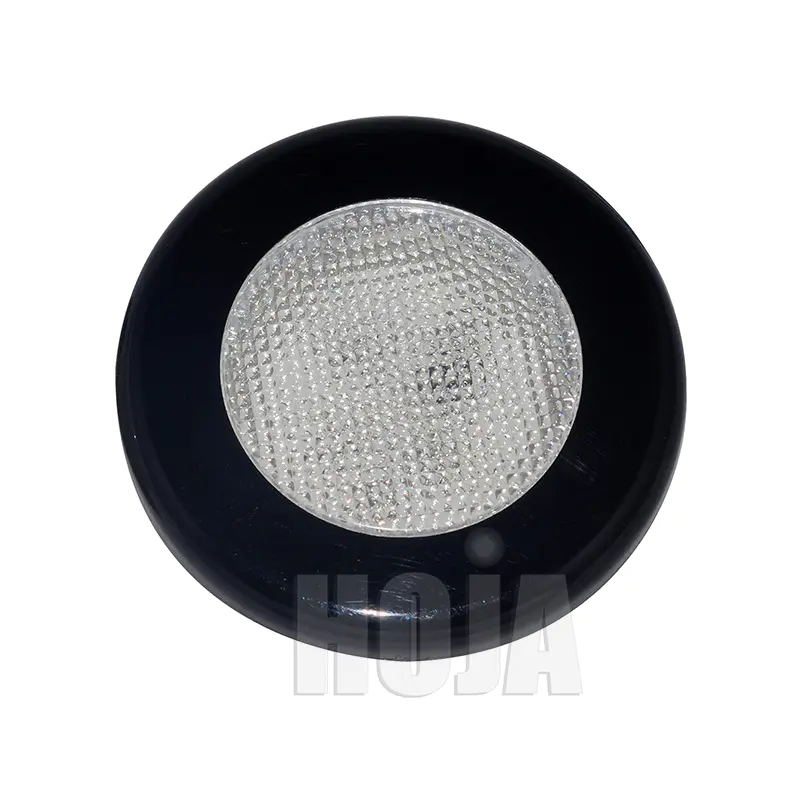

430709B |
Black Ring |
12V |
Natural White |
9 |
SMD 3528 |
50 mA |
55 lm |

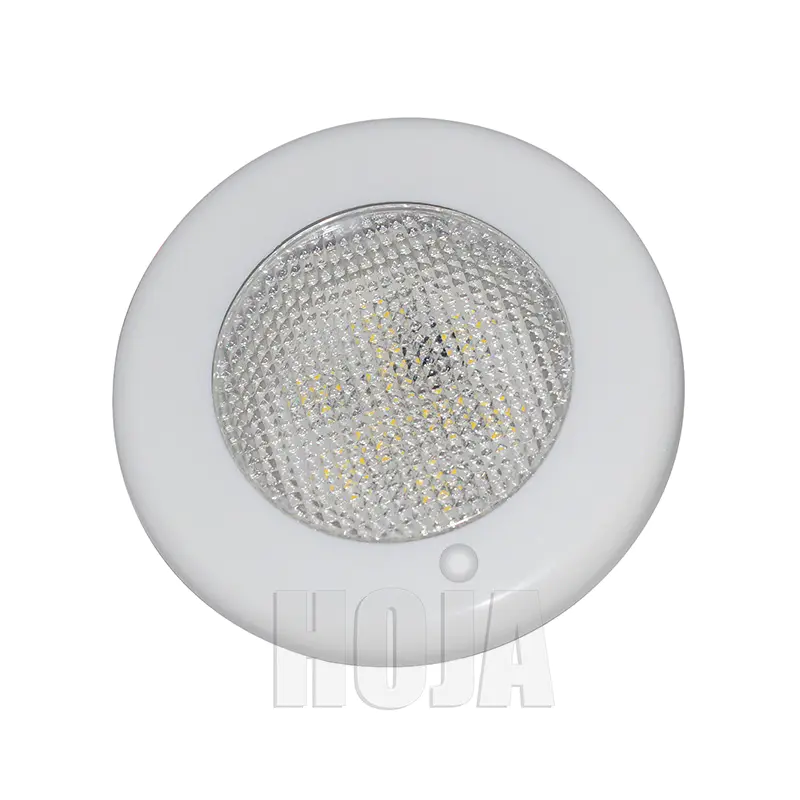

430709W |
White Ring |
12V |
Natural White |
9 |
SMD 3528 |
50 mA |
55 lm |
430809C |
Chromed |
12V |
Blue |
9 |
SMD 3528 |
50 mA |
18 lm |
430809B |
Black Ring |
12V |
Blue |
9 |
SMD 3528 |
50 mA |
18 lm |
430809W |
White Ring |
12V |
Blue |
9 |
SMD 3528 |
50 mA |
18 lm |
430909C |
Chromed |
12V |
Red |
9 |
SMD 3528 |
50 mA |
18 lm |
430909B |
Black Ring |
12V |
Red |
9 |
SMD 3528 |
50 mA |
18 lm |
430909W |
White Ring |
12V |
Red |
9 |
SMD 3528 |
50 mA |
18 lm |
