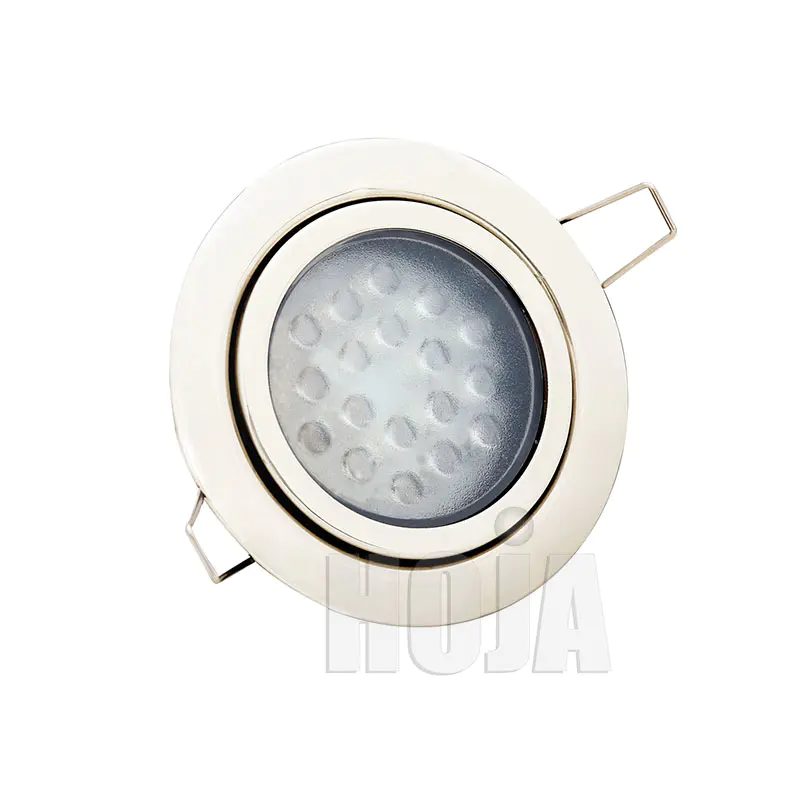

• Low Profile LED Down light is particularly suitable for applications where the depth of cut-out hole is limited, ideal for cabin and compartment
• Highly polished 304 stainless steel housing with frosted plastic lens or light diffusion plastic lens. Lens is designed to vastly distribute the light illuminated from white LEDs at a viewing angle no less than 120°
• New introduction of SMD2835 or SMD5050 LEDs, much brighter! Lighting color available in Warm White, Neutral White and Cool White
• Circuit board is conformal coated to resist moisture, corrosion and vibration
• Rated for 12V, tested to 13.8V
• Also available in optional version of multi-voltage 10~30V operating range, or 24V version by special order only
Part No. |
Finish |
Input Voltage |
Lighting Color |
LED Count |
LED Type |
CCT |
Luminous Flux |
Current Draw (A) at 13.8V |
420018S |
Stainless |
12V |
Cool White |
18 |
5 mm |
~7,000K |
90 lm |
0.12A |
420018SW |
Stainless |
12V |
Warm White |
18 |
5 mm |
~3,200K |
72 lm |
0.12A |
420309SN |
Stainless |
12V |
Neutral White |
9 |
SMD5050 |
~4,200K |
120 lm |
0.15 A |
420309SB |
Stainless |
12V |
Blue |
9 |
SMD5050 |
Blue |
NA |
0.15A |
420309SR |
Stainless |
12V |
Red |
9 |
SMD5050 |
Red |
NA |
0.15 A |
420512SN |
Stainless |
12V |
Neutral White |
12 |
SMD2835 |
~4,200K |
190 lm |
0.17 A |
420512SB |
Stainless |
12V |
Blue |
12 |
SMD2835 |
Blue |
NA |
0.36 A |
420512SR |
Stainless |
12V |
Red |
12 |
SMD2835 |
Red |
NA |
0.36 A |
