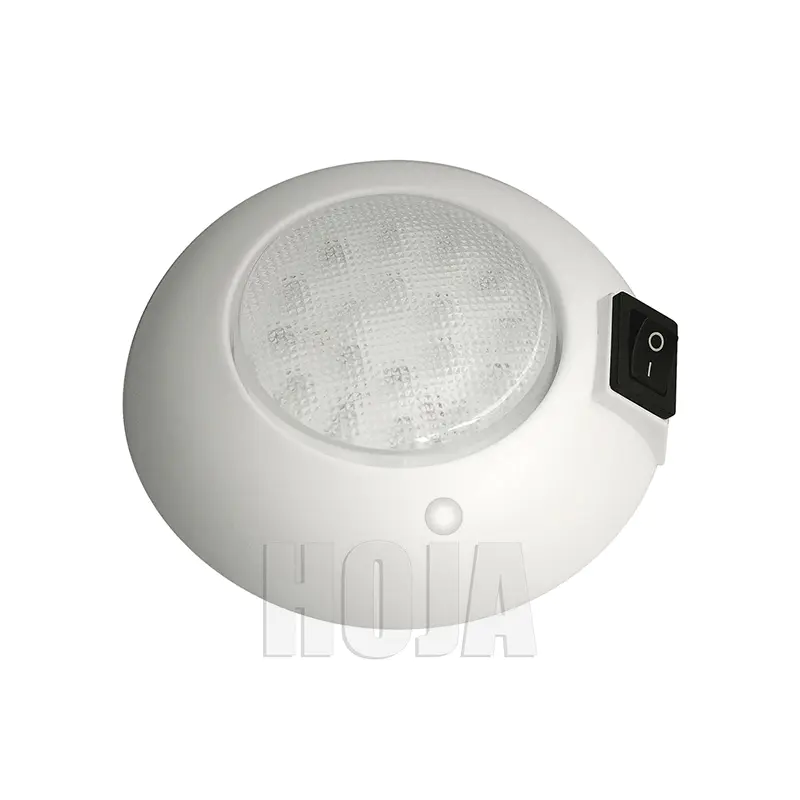

• Newly designed LED Surface Mount Accent Light; ideal for interior use in boats, RV and other applications
• Clear PC Lens featured with StarView® lens pattern is uniquely designed to vastly distribute the lighting illuminated from white LEDs to a wide beam angle of no less than 120°
• White plastic housing added with UV inhibitor to resist color fading, rocker switch, housing also available in Black and Silver colors by special order
• Circuit board completely sealed in epoxy to resist water, corrosion and vibration
• Lighting color by LEDs available in single color Warm White or Cool White, as well as Nav. version (red night vision) of White/Red LED configuration
• Super flux (P4) type or SMD LEDs, super bright, long life span up to 100,000hours
• Rated for 12V, tested to 13.8V
• Also available in 24V version by special order only
Part No. |
Finish |
Input Voltage |
Lighting Color |
LED Count |
LED Type |
CCT. |
Luminous Flux |
Current Draw (A) at 13.8V |
441018W |
White |
12V |
Cool White |
18 |
SMD |
~7,000K |
108 lm |
0.12A |
441018B |
Black |
12V |
Cool White |
18 |
SMD |
~7,000K |
108 lm |
0.12A |
441018WN |
White |
12V |
Neutral White |
18 |
SMD |
~4,200K |
108 lm |
0.12A |
441018BN |
Black |
12V |
Neutral White |
18 |
SMD |
~4,200K |
108 lm |
0.12A |
441912W |
White |
12V |
Cool White/Red |
12W/9R |
SMD |
CW/Red |
72/15 lm |
0.08/0.06 A |
441912B |
Black |
12V |
Cool White/Red |
12W/9R |
SMD |
CW/Red |
72/15 lm |
0.08/0.06 A |
442015W |
White |
12V |
Cool White |
15 |
P4 |
~7,000K |
90 lm |
0.10A |
442015WN |
White |
12V |
Neutral White |
15 |
P4 |
~4,200K |
90 lm |
0.10A |
442609W |
White |
12V |
Cool White/Red |
9W/6R |
P4 |
CW/Red |
60/30 lm |
0.06/0.10 A |
